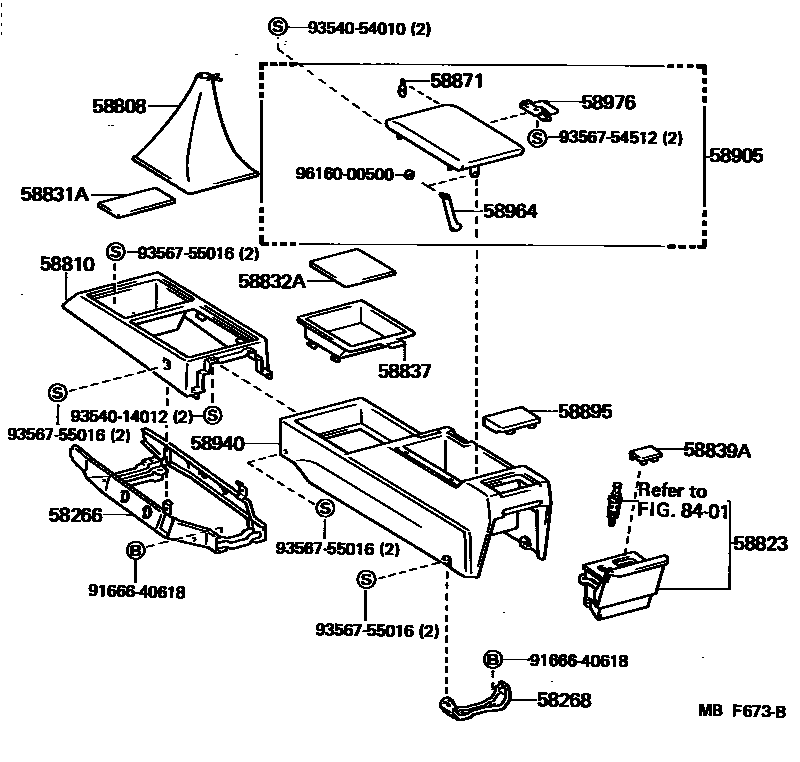

CONSOLE BOX & BRACKET

0001 1 0002 1

58266BRACKET, CONSOLE BOX SUPPORT, FRONT

main58902-30020iGS12#,LS12#,MS12#,YS120..4FC,5F198308-198708

58268BRACKET, CONSOLE BOX SUPPORT, REAR

main58994-30020iGS12#,LS12#,MS12#,YS120..4FC,5F198308-198708

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-30060-02iGS120,121,LS120..5F..(ROY,SAL,SPE)198308-198312

DEEP MAROON,RED/MAROON,TRIM3#

main58808-30060-04iGS120,126,LS12#..5F..(DLX,SDX)198308-198708

BLUE,BLUE,TRIM8#

main58808-30060-05iGS120,126,LS12#..5F..(DLX,SDX)198308-198509

BEIGE,BEIGE,TRIM4#

main58808-30060-06iGS120,126,LS12#..5F..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

main58808-30060-12iGS120,121,LS120..5F..(ROY,SAL,SPE)198312-198509

DEEP MAROON,DEEP MAROON,TRIM3#

main58808-30060-22iGS120,121,LS120..5F..(ROY,SAL,SPE,SSL)198509-198708

MAROON,MAROON,TRIM3#

58810CONSOLE ASSY

main58811-30210-02iGS120,LS120..WG..4FC..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub58811-30210

main58811-30210-02iGS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub58811-30210

main58811-30210-04iGS120,LS120..SED..(4FC,5F)..(DLX,SDX)198308-198708

BLUE,BLUE,TRIM8#

sub58811-30210

main58811-30210-05iGS120,126,LS12#..(V,WG)..(4FC,5F)198308-198509

BEIGE,BEIGE,TRIM4#

sub58811-30210

main58811-30210-06iGS120,126,LS12#..(V,WG)..(4FC,5F)..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

sub58811-30210

main58811-30210-12iGS120,LS120..WG..SAL198509-198708

MAROON,MAROON,TRIM3#

sub58811-30210

58823PANEL, CONSOLE, REAR

main58903-30080-02iGS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub58903-30080

main58903-30080-02iGS120,LS120..WG..4FC..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub58903-30080

main58903-30080-04iMS120..4FC..LPG;GS120,LS120,YS120..5F..STD198308-198708

BLUE,BLUE,TRIM8#

sub58903-30080

main58903-30080-05iGS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE)198308-198509

BEIGE,BEIGE,TRIM4#

sub58903-30080

main58903-30080-06iGS120,121,LS120,MS125..(HT,SED)..(4FC,5F)..(ROY,SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

sub58903-30080

main58903-30080-12iGS120,LS120..WG..SAL198509-198708

MAROON,MAROON,TRIM3#

sub58903-30080

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-30040-02iGS120,121,LS120,MS12#..(HT,SED)..(4FC,5F)..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main58831-30040-02iGS120,LS120..WG..4FC..SAL198405-198708

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main58831-30040-04iGS120,LS120..WG..4FC..SAL198308-198708

BLUE,BLUE,TRIM8#

main58831-30040-05iGS120,LS120..WG..4FC..SAL198308-198708

BEIGE,BEIGE,TRIM4#

main58831-30040-06iGS120,121,LS120,MS125..(HT,SED)..(4FC,5F)..(ROY,SAL,SSL)198509-198708

BROWN,BROWN,TRIM4#

main58831-30040-12iGS120,121,LS120,MS125..(HT,SED)..(4FC,5F)..(ROY,SAL,SSL)198509-198708

MAROON,MAROON,TRIM3#

58832AGARNISH, CONSOLE UPPER PANEL, REAR

main58832-30060-02iGS120,121..5F..(ROY,SAL)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main58832-30060-04iGS120,121,LS120..5F..(ROY,SAL,SSL)198308-198708

BLUE,BLUE,TRIM8#

main58832-30060-05iGS120,121..5F..(ROY,SAL)198308-198509

BEIGE,BEIGE,TRIM4#

main58832-30060-06iGS120,LS120..5F..(SAL,SSL)198509-198708

BROWN,BROWN,TRIM4#

main58832-30060-12iGS120,LS120..5F..(SAL,SSL)198509-198708

MAROON,MAROON,TRIM3#

58837PANEL, CONSOLE, UPPER REAR

main58822-30150-02iGS120,121,LS120..5F..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub58822-30150

main58822-30150-04iGS126,LS126..4FC,5F;GS120,LS120..5F..(DLX,SDX)198308-198708

BLUE,BLUE,TRIM8#

sub58822-30150

main58822-30150-05iGS120,121,LS120..5F..(ROY,SAL,SPE)198308-198509

BEIGE,BEIGE,TRIM4#

sub58822-30150

main58822-30150-06iGS120,121,LS120..5F..(ROY,SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

sub58822-30150

main58822-30150-12iGS120,121,LS120..5F..(ROY,SAL,SPE,SSL)198509-198708

MAROON,MAROON,TRIM3#

sub58822-30150

58839ACOVER, CONSOLE BOX HOLE

main58839-30020iGS120..WG..(4FC,5F)..SDX198308-198708

BLUE

58871CUSHION, CONSOLE BOX

main90541-04079iLS126..DLX;GS12#,LS120,YS120..5F198308-198708

58895COVER, SWITCH HOLE, NO.1

main55549-30060-02iGS120,LS120..WG..4FC..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub55549-30060

main55549-30060-02iGS120,LS120,MS120..(HT,SED)..(4FC,5F)..(SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub55549-30060

main55549-30060-04iGS120,LS120,MS120,YS120..SED..(4FC,5F)..(DLX,SDX,STD)198308-198708

BLUE,BLUE,TRIM8#

sub55549-30060

main55549-30060-05iGS120,LS120,MS120..(HT,SED)..(4FC,5F)..(SAL,SPE)198308-198509

BEIGE,BEIGE,TRIM4#

sub55549-30060

main55549-30060-06iGS120,121,LS120..(HT,SED)..(4FC,5F)..(SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

sub55549-30060

main55549-30060-12iGS120,121,LS120..(HT,SED)..(4FC,5F)..(SAL,SPE,SSL)198509-198708

MAROON,MAROON,TRIM3#

sub55549-30060

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-30080-02iGS120,121,LS120,MS12#..(HT,SED)..4FC..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main58905-30080-02iGS120,LS120..WG..4FC..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

main58905-30080-04iMS120..4FC..LPG198308-198509

BLUE,BLUE,TRIM8#

main58905-30080-05iGS120,121,LS120,MS12#..(HT,SED)..4FC..(ROY,SAL,SPE)198308-198509

BEIGE,BEIGE,TRIM4#

main58905-30090-02iGS120,121,LS120..5F..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

main58905-30090-04iGS126,LS126..4FC,5F;GS120,LS120..5F..(DLX,SDX)198308-198708

BLUE,BLUE,TRIM8#

main58905-30090-05iGS120,121,LS120..5F..(ROY,SAL,SPE)198308-198509

BEIGE,BEIGE,TRIM4#

main58905-30090-06iGS126,LS126..4FC,5F;GS120,LS120..5F..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

main58905-30090-12iGS120,121,LS120..5F..(ROY,SAL,SPE,SSL)198509-198708

MAROON,MAROON,TRIM3#

main58905-30100-02iGS120,LS120..WG..4FC..SAL198509-198708

MAROON,MAROON,TRIM3#

main58905-30100-04iGS120,121,LS120,MS125..(HT,SED)..4FC..(ROY,SAL,SPE,SSL)198509-198708

BLUE,BLUE,TRIM8#

main58905-30100-06iGS120,121,LS120,MS125..(HT,SED)..4FC..(ROY,SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

main58905-30110-02iGS121..HT..4FC..ROY..SPC198608-198708

THE 40TH,MAROON,MAROON,TRIM3#

58940CONSOLE ASSY, REAR

main58901-30050-02iGS120,121,LS120,MS12#..(HT,SED)..4FC..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub58901-30050

main58901-30050-02iGS120,LS120..WG..4FC..SAL198405-198509

GRAND SURF,DEEP MAROON,RED/MAROON,TRIM3#

sub58901-30050

main58901-30050-04iGS120,LS120..WG..4FC198308-198708

BLUE,BLUE,TRIM8#

sub58901-30050

main58901-30050-05iGS120,LS120..SED..4FC..(DLX,SDX)198308-198509

BEIGE,BEIGE,TRIM4#

sub58901-30050

main58901-30050-06iGS120,121,LS120,MS125..(HT,SED)..4FC..(ROY,SAL,SPE,SSL)198509-198708

BROWN,BROWN,TRIM4#

sub58901-30050

main58901-30050-12iGS120,121,LS120,MS125..(HT,SED)..4FC..(ROY,SAL,SPE,SSL)198509-198708

MAROON,MAROON,TRIM3#

sub58901-30050

main58901-30060-02iGS120,121,LS120..5F..(ROY,SAL,SPE)198308-198509

DEEP MAROON,RED/MAROON,TRIM3#

sub58901-30060

main58901-30060-04iGS120,121,LS120..5F..(ROY,SAL,SPE,SSL)198308-198708

BLUE,BLUE,TRIM8#

sub58901-30060

main58901-30060-05iGS126,LS126..4FC,5F;GS120,LS120..5F..(DLX,SDX)198308-198509

BEIGE,BEIGE,TRIM4#

sub58901-30060

main58901-30060-06iGS126,LS126..4FC,5F;GS120,LS120..5F..(DLX,SDX)198509-198708

BROWN,BROWN,TRIM4#

sub58901-30060

main58901-30060-12iGS120,121,LS120..5F..(ROY,SAL,SPE,SSL)198509-198708

MAROON,MAROON,TRIM3#

sub58901-30060

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30030iGS12#,LS12#,MS12#,YS120..4FC,5F198308-198708

main58964-30040iGS120,121,LS120,MS12#..4FC198610-198708

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20010iLS126..DLX;GS12#,LS120,YS120..5F198308-198708

sub58908-12080

8401

9166640618

main91666-40618

9354014012

main93540-14012

9354054010

main93540-54010

9356754512

main93567-54512

9356755016

main93567-55016

9616000500

main96160-00500

22 parts on this diagram · 2 diagrams in section
