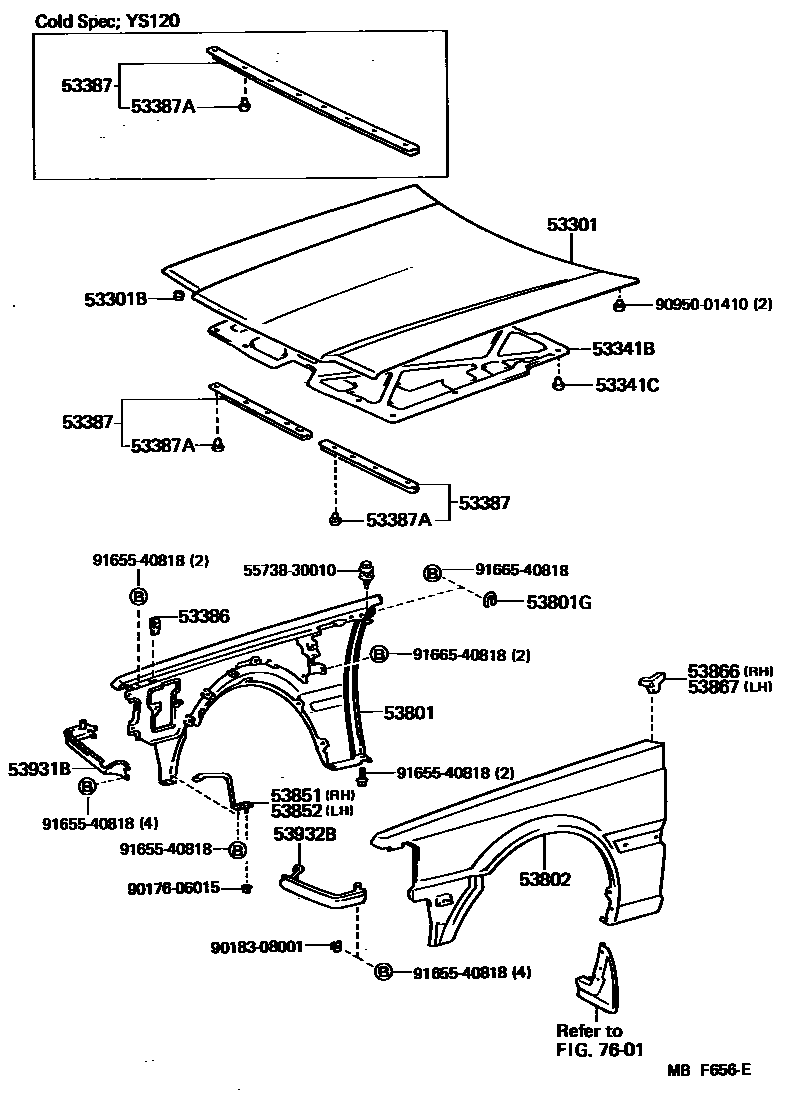

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-30100iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198509

main53301-30120iGS120,121,LS120,MS12#..HT198308-198509

main53301-30130iGS12#,LS12#,MS12#,YS120..SED,V,WG198509-198511

main53301-30150iGS12#,LS12#,MS12#,YS120..SED,V,WG198511-198708

main53301-30160iGS120,121,LS120,MS125..HT198509-198708

53301BCUSHION, HOOD BUMPER

main90541-15004×2iGS12#,LS12#,MS12#,YS120198511-198708

main90541-15111×2iGS12#,LS12#,MS12#,YS120198308-198511

53341BINSULATOR, HOOD

main53341-30070iGS126..SDX198308-198708

main53341-30090iGS120..DLX,SAL,SDX,SPE198410-198509

main53341-30091iLS12#;GS120,121..DLX,ROY,SAL,SDX,SPE,SSL198509-198708

53341CCLIP(FOR HOOD INSULATOR)

main90467-09008×15iGS126..SDX; LS12#;GS120,121,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL198308-198608

main90467-09008-01×15iGS120,121,MS12#,YS120..DLX,ROY,SAL,SDX,SPE,SSL; GS126..SDX; LS12#198608-198708

BLACK

53386BUMPER, HOOD, REAR

main53382-30060×4iGS12#,LS12#,MS12#,YS120198308-198708

53387SEAL, HOOD TO RADIATOR SUPPORT

main53381-30050iGS12#,LS12#,MS12#198308-198708

RH

main53381-30060iGS12#,LS12#,MS12#; YS120198308-198708

COLD SPEC

main53382-30070iGS12#,LS12#,MS12#198308-198708

LH

53387ACLIP(FOR HOOD TO RADIATOR SUPPORT SET)

main90467-08011×9iGS12#,LS12#,MS12#; YS120198308-198708

COLD SPEC

53801FENDER SUB-ASSY, FRONT RH

main53801-3A140iGS120,LS120..WG198308-198507

W/*DM

main53801-3A150iGS120,121,LS120,MS12#..SED..(ROY,SAL)198308-198509

W/FENDER MARKER

main53801-3A220iGS120,126,LS12#,MS120,YS120..SED,V,WG198308-198509

main53801-3A221iGS120,126,LS12#,MS120,YS120..SED,V,WG198509-198708

main53801-3A240iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

main53801-3A250iMS123,125..HT198308-198509

W/FENDER MARKER

main53801-3A251iGS120,121,LS120,MS125..HT198509-198708

main53801-3A260iGS120,121,LS120,MS120..SPE198410-198509

ECLAIR,ATHLETE

main53801-3A270iGS120,LS120..WG198507-198509

W/*DM

main53801-3A360iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

W/*DM

main53801-3A370iMS123,125..HT198308-198509

W/FENDER MARKER,*DM

main53801-3A371iGS120,121,LS120,MS125..HT198509-198512

W/*DM

main53801-3A380iGS120,121,LS120,MS120..SPE198405-198509

ECLAIR,ATHLETE,W/*DM

main53801-3A400iGS120,LS120..WG..SAL198405-198509

GRAND SURF,W/*DM

main53801-3A450iGS120,LS120..WG..SDX198509-198708

W/*DM

main53801-3A460iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

W/FENDER MARKER,*DM

main53801-3A470iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

W/FENDER MARKER

main53801-3A490iGS120,121,LS120,MS125..HT198512-198708

W/*DM

53801GSPACER, FRONT FENDER TO COWL PANEL

main53878-30010iGS12#,LS12#,MS12#,YS120198308-198708

53802FENDER SUB-ASSY, FRONT LH

main53802-30830iGS120,LS120..WG198308-198507

W/*DM

main53802-30840iGS120,LS120..WG..SAL198408-198509

GRAND SURF

main53802-3A020iGS120,126,LS12#,MS120,YS120..SED,V,WG198308-198509

main53802-3A021iGS120,126,LS12#,MS120,YS120..SED,V,WG198509-198708

main53802-3A040iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

main53802-3A050iMS123,125..HT198308-198509

W/FENDER MARKER

main53802-3A051iGS120,121,LS120,MS125..HT198509-198708

main53802-3A060iGS120,121,LS120,MS120..HT..(ROY,SAL)198308-198509

W/FENDER MARKER

main53802-3A080iGS120,121,LS120,MS120..HT..(SAL,SPE)198308-198509

W/*DM

main53802-3A090iMS123,125..HT198308-198509

W/FENDER MARKER,*DM

main53802-3A091iGS120,121,LS120,MS125..HT198509-198512

W/*DM

main53802-3A100iGS120,121,LS120,MS120..HT..(ROY,SAL)198308-198509

W/FENDER MARKER,*DM

main53802-3A110iGS120,LS120..WG198507-198509

W/*DM

main53802-3A200iGS120,LS120..WG..SAL198405-198509

GRAND SURF,W/*DM

main53802-3A250iGS120,LS120..WG..SDX198509-198708

W/*DM

main53802-3A260iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

W/FENDER MARKER*DM

main53802-3A270iGS120,121,LS120,MS125..(SED,WG)..(ROY,SAL)198509-198708

W/FENDER MARKER

main53802-3A290iGS120,121,LS120,MS125..HT198512-198708

W/*DM

53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH

main53851-30010iGS12#,LS12#,MS12#,YS120198308-198708

53852BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH

main53852-30010iGS12#,LS12#,MS12#,YS120198308-198708

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-30010iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main53866-30020iGS120,121,LS120,MS12#..HT198308-198708

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-30010iGS12#,LS12#,MS12#,YS120..SED,V,WG198308-198708

main53867-30020iGS120,121,LS120,MS12#..HT198308-198708

53931BPANEL, FRONT END, RH

main53903-30160iGS120,121,LS120,MS12#..HT198308-198509

main53903-30161iGS120,121,LS120,MS125..HT198509-198708

main53903-30170iGS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX)198509-198708

53932BPANEL, FRONT END, LH

main53904-30160iGS120,121,LS120,MS12#..HT198308-198509

main53904-30161iGS120,121,LS120,MS125..HT198509-198708

main53904-30170iGS120,121,LS120,MS12#,YS120..(SED,WG)..(DLX,ROY,SAL,SDX)198509-198708

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

5573830010GARNISH, COWL VENTILATOR, LH

main55738-30010

9017606015

main90176-06015

9018308001

main90183-08001

9095001410

main90950-01410

9165540818

main91655-40818

9166540818

main91665-40818

23 parts on this diagram · 1 diagram in section
