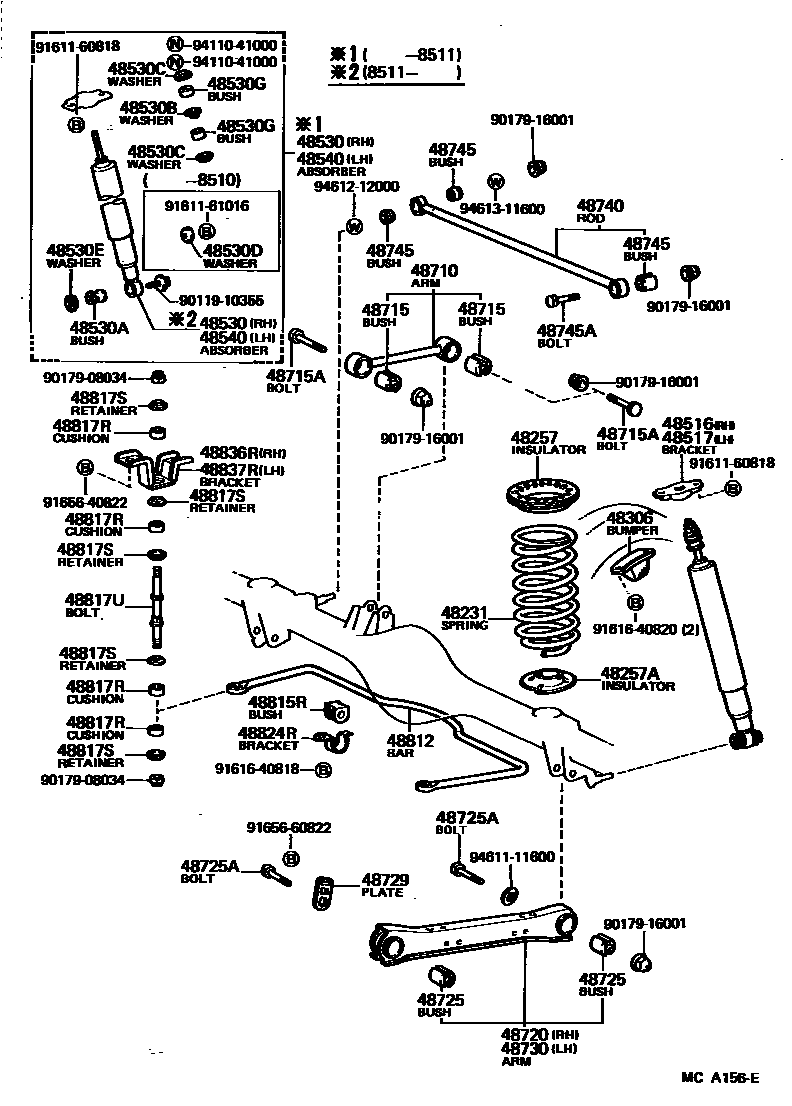

REAR SPRING & SHOCK ABSORBER

0001 1 0003 1 0004 1 0005 1 0006 1

48231SPRING, COIL, REAR

main48231-30390iMS123198308-198408

main48231-30400iLS120..STD;MS120,YS120..LPG198308-198708

main48231-30400iGS120..4H..DLX198308-198412

TAXI SPEC

main48231-30410iGS121..ROY..SPC198308-198708

W/HEIGHT CONTROL

sub48231-30530

main48231-30410iGS121..ROY..SPC198509-198708

G SPEC

sub48231-30530

main48231-30420iGS121..TWC198308-198708

main48231-30430iMS123198308-198408

W/HEIGHT CONTROL

main48231-30440iLS120..(HT,SED)..(DLX,SAL,SDX,SPE,SSL)198308-198708

main48231-30470iMS125..SED198408-198708

sub48231-30640

main48231-30480iMS125..HT198408-198708

sub48231-30640

main48231-30490iYS120198409-198708

main48231-31070iGS120,LS120..WG198308-198708

48257INSULATOR, REAR COIL SPRING

main48257-30020iGS120,LS120,MS120,YS120198308-198708

main48257-30040iGS121,MS123,125198308-198708

48257AINSULATOR, REAR COIL SPRING, LOWER

main48258-30010iGS120,LS120,MS120,YS120198308-198708

main48258-30020iGS121,MS123,125198308-198708

48306BUMPER SUB-ASSY, REAR SPRING

main48306-30060iGS120,LS120..WG;MS120,YS120..LPG198308-198708

main48306-30070iGS120,LS120,MS120..(HT,SED)..(DSL,EFI,TBO,TD,TDE)198308-198708

sub48306-30110

main48306-30080iGS121,MS123,125198308-198708

sub48306-30140

main48306-30090iMS125..4FC198509-198708

W/TEMS

sub48306-30150

main48306-39015iGS126,LS126198308-198708

48516BRACKET, REAR SHOCK ABSORBER, UPPER RH

main48516-30030iGS120,LS120,MS120,YS120198308-198708

main48516-30040iGS126,LS126198308-198708

48517BRACKET, REAR SHOCK ABSORBER, UPPER LH

main48516-30030iGS120,LS120,MS120,YS120198308-198708

main48516-30040iGS126,LS126198308-198708

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-30030iGS121..ROY..SPC198608-198708

TOKICO,W/HEIGHT CONTROL

sub48530-39025

main48530-30050iMS125..4FC198509-198708

KYB,W/TEMS

sub48530-39085

main48530-30060iMS125..4FC198509-198708

TOKICO,W/TEMS

sub48530-39085

main48530-39015iGS121,MS123198308-198408

KYB,W/HEIGHT CONTROL

sub48530-39016

main48530-39025iGS121,MS123198308-198408

TOKICO,W/HEIGHT CONTROL

sub48530-39045

main48530-39035iGS121,MS125198408-198708

KYB,W/HEIGHT CONTROL

sub48530-39036

main48530-39045iGS121,MS125198408-198608

TOKICO,W/HEIGHT CONTROL

sub48530-39046

main48531-30300iGS120,LS120,MS120..HT,SED198511-198708

sub48531-39226

sub48531-39565

main48531-30330iGS120,LS120..WG198511-198708

sub48531-39535

sub48531-39545

main48531-30350iGS121,MS125198511-198708

sub48531-39705

main48531-30360iYS120198510-198708

main48531-31120iGS126,LS126198511-198708

sub48531-39595

main48531-39535iGS120..WG198308-198511

sub48531-39536

main48531-39545iLS120..WG198308-198511

sub48531-39546

main48531-39555iGS120,MS120..HT,SED198308-198511

sub48531-39565

main48531-39565iLS120..HT,SED198308-198511

sub48531-39566

main48531-39585iGS121,MS123198308-198408

sub48531-39705

main48531-39595iGS126,LS126198308-198511

sub48531-39596

main48531-39705iGS121,MS125198408-198511

sub48531-39706

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16001iGS12#,LS12#,MS12#,YS120198308-198510

main90385-16004iGS12#,LS12#,MS12#198510-198708

main90385-19001iGS121..ROY..SPC198509-198708

G SPEC

main90385-19001iMS125198308-198708

W/HEIGHT CONTROL

main90385-19001iYS120198510-198708

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-02007iGS120,126,LS12#,MS120,YS120198308-198708

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-02002iGS120,126,LS12#,MS120,YS120198308-198708

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03007iGS12#,LS12#,MS12#,YS120198308-198510

main90948-03018iGS121..ROY..SPC198308-198708

W/HEIGHT CONTROL

main90948-03018iYS120198510-198708

main90948-03018iMS125198509-198708

G SPEC

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iGS12#,LS12#,MS12#198308-198708

main90948-03017iGS121..ROY..SPC198509-198708

G SPEC

main90948-03017iMS125198308-198708

W/HEIGHT CONTROL

main90948-03017iYS120198510-198708

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90540-10002iGS126,LS12#198308-198708

LWR

main90948-01003iGS126,LS12#198308-198708

UPR

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-30300iGS120,LS120,MS120..HT,SED198511-198708

sub48531-39226

sub48531-39565

main48531-30330iGS120,LS120..WG198511-198708

sub48531-39535

sub48531-39545

main48531-30350iGS121,MS125198511-198708

sub48531-39705

main48531-30360iYS120198510-198708

main48531-31120iGS126,LS126198511-198708

sub48531-39595

main48531-39535iGS120..WG198308-198511

sub48531-39536

main48531-39545iLS120..WG198308-198511

sub48531-39546

main48531-39555iGS120,MS120..HT,SED198308-198511

sub48531-39565

main48531-39565iLS120..HT,SED198308-198511

sub48531-39566

main48531-39585iGS121,MS123198308-198408

sub48531-39705

main48531-39595iGS126,LS126198308-198511

sub48531-39596

main48531-39705iGS121,MS125198408-198511

sub48531-39706

main48540-30030iGS121..ROY..SPC198608-198708

TOKICO,W/HEIGHT CONTROL

sub48540-39025

main48540-30050iMS125..4FC198509-198708

KYB,W/TEMS

sub48540-39085

main48540-30060iMS125..4FC198509-198708

TOKICO,W/TEMS

sub48540-39085

main48540-39015iGS121,MS123198308-198408

KYB,W/HEIGHT CONTROL

sub48540-39016

main48540-39025iGS121,MS123198308-198408

TOKICO,W/HEIGHT CONTROL

sub48540-39045

main48540-39035iGS121..ROY..SPC198408-198708

KYB,W/HEIGHT CONTROL

sub48540-39036

main48540-39045iMS125..4HC198408-198608

TOKICO,W/HEIGHT CONTROL

sub48540-39046

48710ARM ASSY, UPPER CONTROL

main48710-30060iGS120,LS120..WG198308-198708

main48710-30070iLS120,MS120..DSL,LPG198308-198708

sub48710-30120

main48710-30080iGS120,LS120,MS120..(HT,SED)..(EFI,TBO,TD,TDE)198308-198708

sub48710-30130

48715BUSH, UPPER CONTROL ARM

main48702-30060iGS120,LS120..WG198308-198708

main48702-30070iLS120..DSL198308-198708

sub48702-30130

main48702-30080iGS120,LS120,MS120..(HT,SED)..(EFI,TBO,TD,TDE)198308-198708

sub48702-30140

48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)

main90105-16018iGS120,LS120,MS120,YS120198308-198708

sub90105-16030

48720ARM ASSY, LOWER CONTROL, RH

main48720-30080iGS120,LS120..WG;MS120,YS120..LPG198308-198708

main48720-30090iYS120198308-198708

main48720-30100iGS120,LS120,MS120..(HT,SED)..(EFI,TBO,TD,TDE)198308-198708

48725BUSH, LOWER CONTROL ARM

main48702-30060iGS120,LS120..WG198308-198708

main48702-30070iLS120,MS120..DSL,LPG198308-198708

sub48702-30130

main48702-30080iGS120,LS120,MS120..(HT,SED)..(EFI,TBO,TD,TDE)198308-198708

sub48702-30140

main48725-30020iGS121,MS123,125198308-198708

INNER

main48725-30030iGS121,MS123,125198308-198410

OUTER

main48725-30040iGS121,MS125198410-198708

OUTER

48725ABOLT(FOR LOWER CONTROL ARM)

main90101-16016iGS120,LS120,MS120,YS120198308-198708

FRAME SIDE

main90105-16018iGS120,LS120,MS120,YS120198308-198708

HOUSING SIDE

sub90105-16030

48729PLATE, LOWER CONTROL ARM BOLT LOCK

main48729-30020iGS120,LS120,MS120,YS120198308-198708

48730ARM ASSY, LOWER CONTROL, LH

main48720-30080iYS120;GS120,LS120..WG198308-198708

main48720-30090iLS120..DSL198308-198708

main48720-30100iGS120,LS120,MS120..(HT,SED)..(EFI,TBO,TD,TDE)198308-198708

48740ROD ASSY, REAR LATERAL CONTROL

main48740-30050iGS120,LS120,MS120,YS120198308-198708

48745BUSH, LATERAL CONTROL ROD

main48706-22010iGS120,LS120,MS120,YS120198308-198708

FRAME X ROD

main90385-20048iGS120,LS120,MS120,YS120198308-198708

HOUSING X ROD

48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)

main90105-16017iGS120,LS120,MS120,YS120198308-198708

48812BAR, STABILIZER, REAR

main48812-30070iMS120..LPG198308-198708

main48812-30090iLS120,MS120..(HT,SED)..(DLX,SAL,SDX,SPE,SSL)..(DSL,TBO,TD,TDE)198308-198708

main48812-30130iLS120..WG;LS120..STD198308-198708

48815RBUSH, STABILIZER(FOR REAR)

main48815-14030iGS121..TWC198308-198708

main48815-14050iMS120..LPG198308-198708

main48815-14060iLS120..WG;LS120..STD198308-198708

main48815-30060iGS121..SSL198605-198708

ATHLETE

main48815-30060iGS121,MS125..HT198308-198708

S PACKAGE

main48815-30070iMS125198308-198509

W/HEIGHT CONTROL

main48815-30070iLS120,MS120..(HT,SED)..(DLX,SAL,SDX,SPE,SSL)..(DSL,TBO,TD,TDE)198308-198708

48817RCUSHION, STABILIZER(FOR REAR)

main48817-10010iGS121,LS120,MS120,125198308-198708

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02024iGS121,LS120,MS120,125198308-198708

T=1.2

main90948-02025iGS121,LS120,MS120,125198308-198708

T=1.0

48817UBOLT(FOR REAR STABILIZER)

main48819-12010iLS120,MS120198308-198708

main91112-41040iGS121,MS125198308-198708

sub91111-41040

48824RBRACKET, STABILIZER(FOR REAR)

main48824-22010iLS120,MS120198308-198708

48836RBRACKET, REAR STABILIZER END, RH

main48836-30020iLS120,MS120198308-198708

48837RBRACKET, REAR STABILIZER END, LH

main48837-30020iLS120,MS120198308-198708

9011910355

main90119-10355

9017908034

main90179-08034

9017916001

main90179-16001

9161160818

main91611-60818

9161161016

main91611-61016

9161640818

main91616-40818

9161640820

main91616-40820

9165640822

main91656-40822

9165660822

main91656-60822

9411041000

main94110-41000

9461111600

main94611-11600

9461212000

main94612-12000

9461311600

main94613-11600

46 parts on this diagram · 5 diagrams in section
