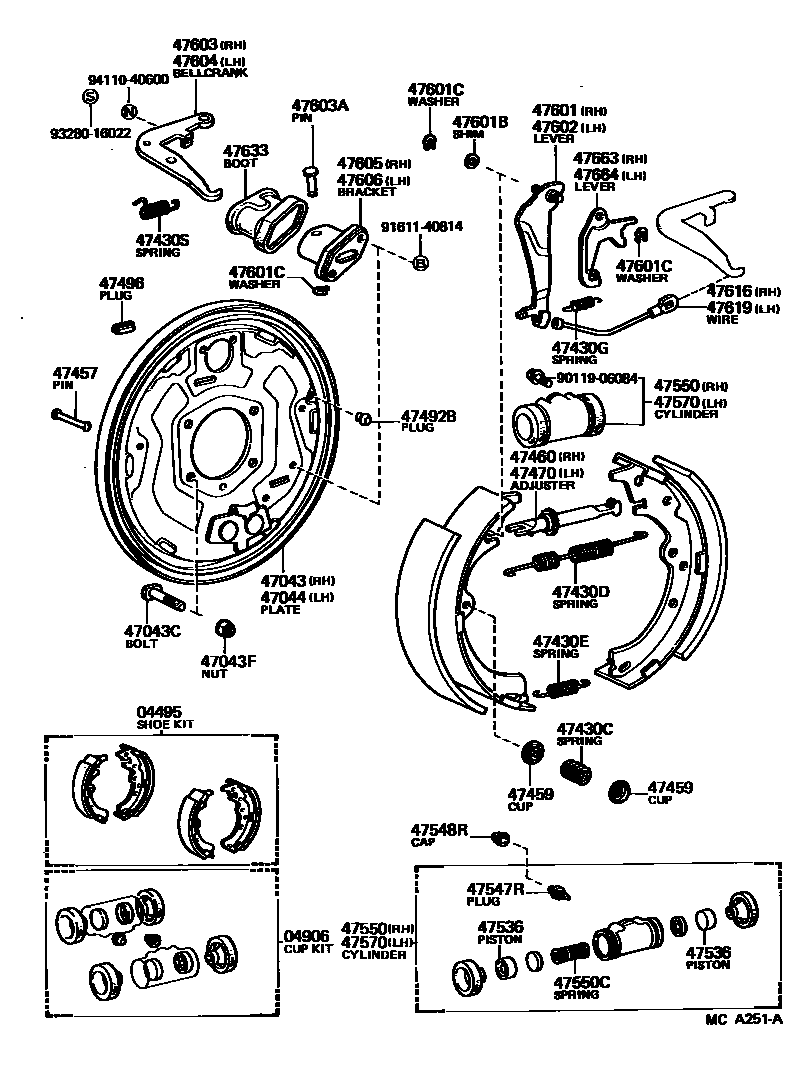

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-30050iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,STD; MS120..LPG198308-198509

W/C ID=22.22

main04495-30070iGS120,LS120,YS120..STD198308-198509

W/C ID=25.40

main04495-30071iLS120..4H..STD; MS120,YS120198509-198701

W/C ID=22.22,TAXI SPEC

main04497-30040iGS120,LS120,YS120..STD198308-198405

REBUILT,W/C ID=25.40

main04497-30050iLS120..4H..STD; MS120,YS120198701-198708

REBUILT; REBUILT,W/C ID=22.22,TAXI SPEC

main04497-30060iGS120,LS120,YS120..STD198405-198509

REBUILT,W/C ID=25.40

main04497-30061iLS120..4H..STD; MS120,YS120198509-198701

REBUILT; REBUILT,W/C ID=22.22,TAXI SPEC

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30070iGS120,LS120,YS120..STD198308-198708

W/C ID=25.40

main04906-30100iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

W/C ID=22.22

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-30110iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-30021×8iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10030×8iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-30120iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20756×4iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-23003×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-20005×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12480×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47430SSPRING, TENSION(FOR PARKING BRAKE SHOE STRUT)

main90506-18004×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30020×4iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020×8iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47061-30020iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

W/C ID=22.22

main47061-30030iGS120,LS120,YS120..STD198308-198708

W/C ID=25.40

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47062-30020iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

W/C ID=22.22

main47062-30030iGS120,LS120,YS120..STD198308-198708

W/C ID=25.40

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020×4iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

W/C ID=22.22

main47051-30040×4iGS120,LS120,YS120..STD198308-198708

W/C ID=25.40

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20030×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-30130iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120198608-198708

ID=22.22

main47550-39185iGS120,LS120,YS120..STD198308-198708

ID=25.40

main47550-39275iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198608

ID=22.22

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main47509-20010×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

W/C ID=22.22

main47509-30010×2iGS120,LS120,YS120..STD198308-198708

W/C ID=25.40

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-30130iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120198608-198708

W/C ID=22.22

main47550-39185iGS120,LS120,YS120..STD198308-198708

W/C ID=25.40

main47550-39275iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198608

W/C ID=22.22

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-30020iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-09001×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

main90564-09002×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

main90564-09003×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

main90564-09184×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

main90564-09185×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

main90564-09186×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013×4iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

main90213-07010×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-30020iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47603BELLCRANK SUB-ASSY, PARKING BRAKE, RH(FOR REAR BRAKE)

main47624-30080iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47603APIN, W/HOLE(FOR REAR BRAKE)

main90249-08068×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47604BELLCRANK SUB-ASSY, PARKING BRAKE, LH (FOR REAR BRAKE)

main47627-30030iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47605BRACKET SUB-ASSY, BELL CRANK, RH (FOR REAR BRAKE)

main47628-30040iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47606BRACKET SUB-ASSY, BELL CRANK, LH (FOR REAR BRAKE)

main47629-30030iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47616WIRE, PARKING BRAKE, RH

main47616-30040iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47619WIRE, PARKING BRAKE, LH

main47616-30040iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47633BOOT, PARKING BRAKE BELLCRANK

main47633-30030iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

RH

main47634-30020iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

LH

47663LEVER, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47643-30010iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

47664LEVER, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47644-30010iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

9011906084

main90119-06084

9161140814

main91611-40814

9328016022

main93280-16022

9411040600

main94110-40600
