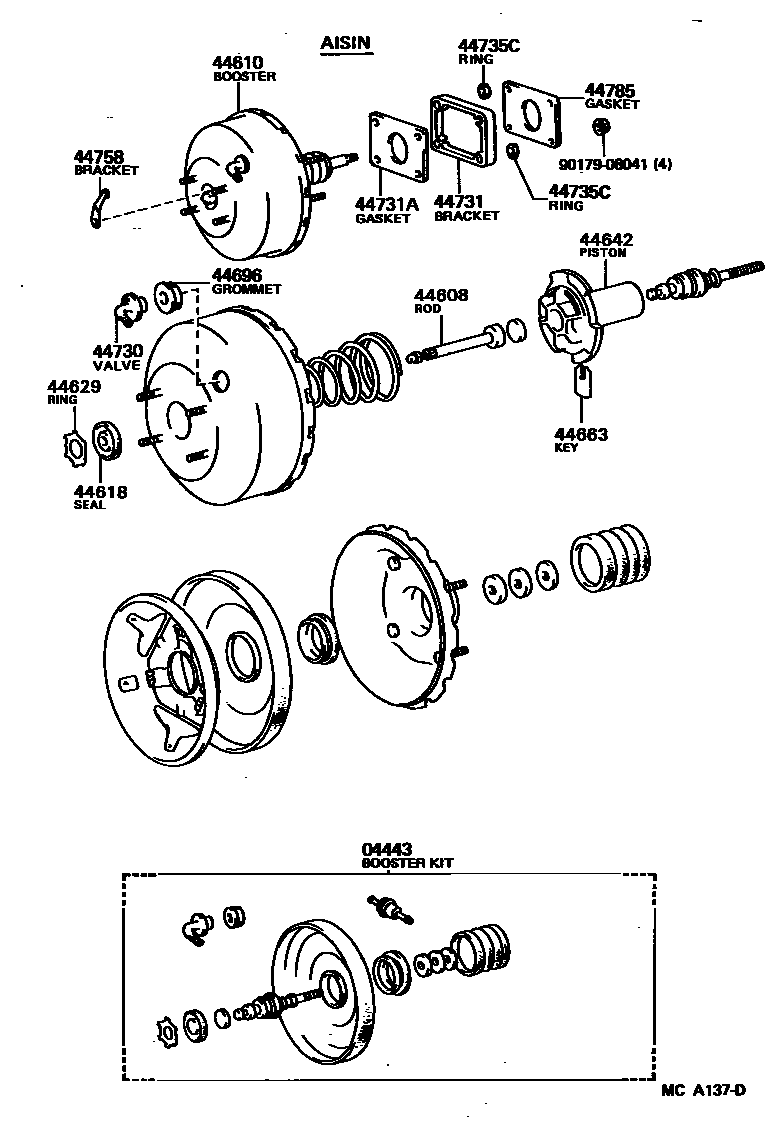

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1

04443BOOSTER KIT, BRAKE

main04443-30330iGS12#,MS120,YS120..EFI,LPG,TWC198308-198509

FR DISC BRAKE

main04443-30350iLS12#198308-198509

FR DISC BRAKE,9 INCHES

main04443-30370iLS120..STD198308-198708

FR DRUM BRAKE,8 INCHES

main04443-30400iMS120..TBO198308-198509

main04443-30410iGS120,YS120..STD198308-198509

FR DRUM BRAKE

main04443-30430iMS123,125198308-198509

main04443-30440iGS120,126,MS120,YS120198509-198708

AISIN,FR DISC BRAKE

main04443-30450iLS12#198509-198708

FR DISC BRAKE,9 INCHES

main04443-30460iGS121,MS125198509-198708

AISIN

main04443-30470iGS120,YS120..STD198509-198708

FR DRUM BRAKE

main04443-30480iGS120..(HT,SED)..SAL198509-198708

JKC

main04443-30500iGS121,MS125198509-198708

JKC

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iGS121,MS125198509-198708

AISIN

main44606-20800iGS121,MS125198509-198708

AISIN

main44606-30460iMS120..TBO198308-198509

main44606-32010iGS12#,MS120,YS120..EFI,LPG,TWC; LS12#198308-198410

FR DISC BRAKE

main44608-20810iGS121,MS125198509-198708

JKC

main44608-30440iMS123,125198308-198509

main44608-32020iGS120,YS120..STD198308-198509

FR DRUM BRAKE

44610BOOSTER ASSY, BRAKE

main44610-30400iGS12#,MS120,YS120..EFI,LPG,TWC198308-198509

FR DISC BRAKE

main44610-30420iLS12#198308-198509

AISIN,FR DISC BRAKE

main44610-30440iMS123,125198308-198509

main44610-30450iLS120..STD198308-198708

AISIN,FR DRUM BRAKE

main44610-30470iMS120..TBO198308-198509

main44610-30480iGS120,YS120..STD198308-198509

JKC,FR DRUM BRAKE

main44610-30500iGS120,YS120..STD198509-198708

JKC,FR DRUM BRAKE

main44610-30510iGS120,126,MS120,YS120198509-198708

AISIN,FR DISC BRAKE

main44610-30520iGS120..(HT,SED)..SAL198509-198708

JKC

main44610-30530iLS12#198509-198708

AISIN,FR DISC BRAKE

main44610-30560iGS121,MS125198509-198708

44618SEAL, BOOSTER BODY

main44621-14030iMS120..TBO198308-198509

main44621-28120iGS120,126,LS12#,MS120,YS120198509-198708

44629RING, CIRCULAR INTERNAL

main44628-28120iGS120,126,LS12#,MS120,YS120198509-198708

main44628-60010iGS121,MS125198509-198708

44642PISTON, BRAKE BOOSTER

main44642-20800iGS121,MS125198509-198708

main44642-27150iLS120..STD198308-198708

FR DRUM BRAKE

main44642-30340iMS120..TBO198308-198509

main44642-32010iGS12#,MS120,YS120..EFI,LPG,TWC; LS12#198308-198509

FR DISC BRAKE

main44642-32030iGS120,126,MS120,YS120; LS12#198509-198708

FR DISC BRAKE

44663KEY, VALVE STOPPER

main44635-20800iGS121,MS125198509-198708

main44635-28120iGS12#,LS12#,MS120,YS120..DSL,EFI,LPG,TD,TDE,TWC198308-198509

main44635-30340iMS120..TBO198308-198509

44696GROMMET, CHECK VALVE

main90480-24439iGS12#,MS120,YS120..EFI,LPG,TWC198308-198509

FR DISC BRAKE

main90480-24517iGS120,YS120..STD; MS123,125198308-198509

FR DRUM BRAKE

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44580-22030iMS120..TBO198308-198509

main44730-14050iGS121,MS125198509-198708

AISIN

main44730-14060iGS121,MS125198509-198708

JKC

main44730-20030iGS12#,MS120,YS120..EFI,LPG,TWC198308-198509

FR DISC BRAKE

main44730-20040iGS120,YS120..STD198308-198509

FR DRUM BRAKE

main44730-22090iMS123,125198308-198509

main44730-24010iLS12#198308-198708

main44730-30030iGS120,YS120..(HT,SED)..(SAL,STD)198509-198708

JKC

main44730-30040iGS120,126,MS120,YS120198509-198708

AISIN

44731BRACKET, BRAKE BOOSTER, FRONT

main44731-30060iGS12#,LS12#,MS12#,YS120198308-198708

44731AGASKET, BRAKE BOOSTER BRACKET

main44785-30020iGS12#,LS12#,MS12#,YS120198308-198708

44735CRING, BOOSTER BRACKET STOPPER

main44735-30010×2iGS12#,LS12#,MS12#,YS120198308-198708

44758BRACKET, VACUUM CHECK VALVE

main44758-30050iMS123,125198308-198509

main44758-30070iGS12#,MS120,YS120..EFI,LPG,TWC198308-198509

main44758-30100iGS121,MS125198509-198708

44785GASKET, BRAKE BOOSTER

main44785-30020iGS12#,LS12#,MS12#,YS120198308-198708

9017908041

main90179-08041

15 parts on this diagram · 12 diagrams in section
