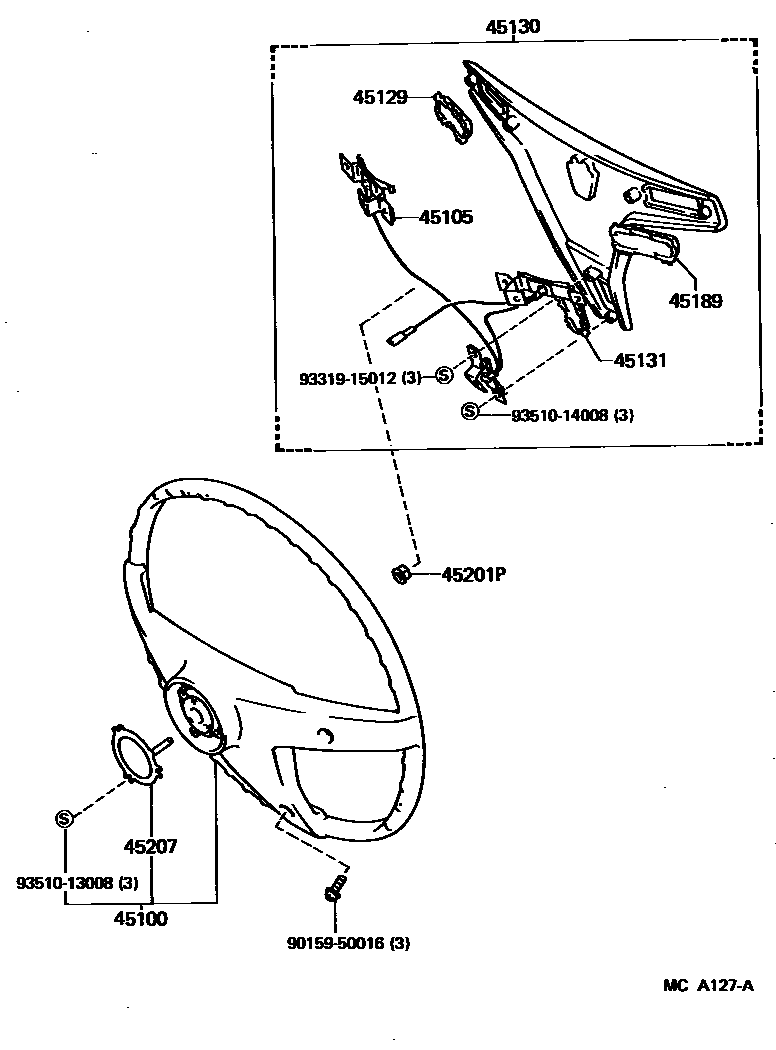

STEERING WHEEL
45100WHEEL ASSY, STEERING
BROWN,BROWN,TRIM4#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
main45100-30250-06iGS120,126,LS12#..(HT,SED,V)..(4FC,4HC,5F)..(DLX,SAL,SDX,SPE,SSL); GS120,LS120..WG..(4FC,5F)..SDX; GS121..4HC198509-198708
BROWN,SEPIA BROWN,TRIM4#; BROWN,W/POWER STEERING,SEPIA BROWN,TRIM4#
MAROON,MAROON,TRIM3#
BLUE,BLUE,TRIM8#; BLUE,W/POWER STEERING,BLUE,TRIM8#
DEEP MAROON,W/*AD,RED/MAROON,TRIM3#
BLUE,W/*MS,G SPEC,BLUE,TRIM8#
BEIGE,W/*AD,BEIGE,TRIM4#
BROWN,W/*AD,SEPIA BROWN,TRIM4#; BROWN,W/*MS,G SPEC,SEPIA BROWN,TRIM4#
MAROON,W/*AD,MAROON,TRIM3#; MAROON,W/*MS,G SPEC,MAROON,TRIM3#
BLUE,W/*AD,BLUE,TRIM8#; BLUE,W/*MS,G SPEC,BLUE,TRIM8#
DEEP MAROON,RED/MAROON,TRIM3#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,SEPIA BROWN,TRIM4#
MAROON,MAROON,TRIM3#
BLUE,BLUE,TRIM8#
DEEP MAROON,W/*AD,RED/MAROON,TRIM3#
BLUE,W/*AD,BLUE,TRIM8#
BEIGE,W/*AD,BEIGE,TRIM4#
BROWN,W/*AD,SEPIA BROWN,TRIM4#
MAROON,W/*AD,MAROON,TRIM3#
BLUE,W/*AD,BLUE,TRIM8#
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
W/POWER STEERING
45129BUTTON, HORN, NO.2
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
main45131-30170-14iGS120,LS120,MS120,YS120..MTM..(DLX,STD); GS120..WG..MTM; GS126,LS126198604-198708
BLUE; BLUE,BLUE,TRIM8#
45130BUTTON ASSY, HORN
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
main45130-30200-14iGS120,LS120,MS120,YS120..MTM..(DLX,STD); GS120..WG..MTM; GS126,LS126198604-198708
BLUE; BLUE,BLUE,TRIM8#
DEEP MAROON,GRAND SURF,RED/MAROON,TRIM3#
BLUE,W/POWER STEERING,BLUE,TRIM8#
main45130-30210-05iGS12#,LS12#,MS12#..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE)..(DSL,EFI,TBO,TD,TDE,TWC)198308-198412
BEIGE,W/POWER STEERING,BEIGE,TRIM4#
main45130-30210-06iGS12#,LS12#..(HT,SED,V)..(4FC,4HC,5F)..(DLX,ROY,SAL,SDX,SPE,SSL); GS120,LS120..WG..(4FC,5F)..SDX198509-198708
BROWN,W/POWER STEERING,SEPIA BROWN,TRIM4#
MAROON,MAROON,TRIM3#
BLUE,W/POWER STEERING,BLUE,TRIM8#
DEEP MAROON,W/*AD,GRAND SURF,RED/MAROON,TRIM3#
BLUE,W/*AD,BLUE,TRIM8#
BEIGE,W/*AD,BEIGE,TRIM4#
BROWN,W/*AD,SEPIA BROWN,TRIM4#
MAROON,W/*AD,MAROON,TRIM3#
BLUE,W/*AD,BLUE,TRIM8#
45131BUTTON, HORN, NO.1
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
main45131-30170-14iGS120,LS120,MS120,YS120..MTM..(DLX,STD); GS120..WG..MTM; GS126,LS126198604-198708
BLUE,BLUE,TRIM8#
45189BUTTON, HORN, NO.3
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BROWN,BROWN,TRIM4#
main45131-30170-14iGS120,LS120,MS120,YS120..MTM..(DLX,STD); GS120..WG..MTM; GS126,LS126198604-198708
BLUE,BLUE,TRIM8#
45201PNUT, STEERING WHEEL SET
main90179-12086iGS120,121,MS12#..(HT,SED)..4HC; GS120,LS120,YS120..DLX,STD; MS120,YS120..LPG198308-198708
45207RING, HORN CONTACT
W/POWER STEERING
W/POWER STEERING
9015950016
main90159-50016
9331915012
main93319-15012
9351013008
main93510-13008
9351014008
main93510-14008
12 parts on this diagram · 3 diagrams in section
