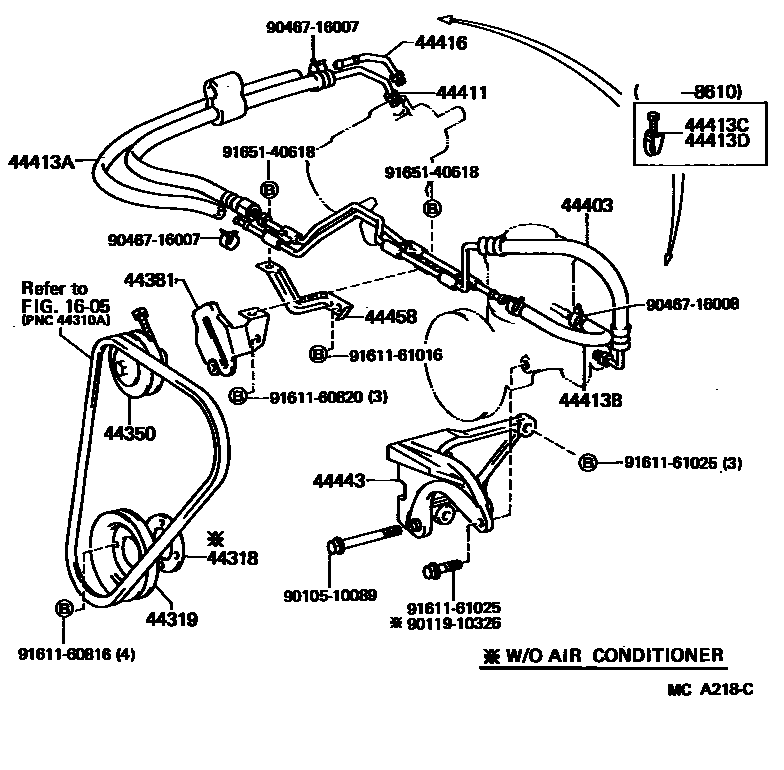

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

1605V-BELT

→ Go to FIG 16-05

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-28012iYS120198308-198708

44319PULLEY, VANE PUMP DRIVE

main44319-28013iYS120198308-198708

main44319-30030iLS120;LS126..DLX198308-198708

44350PULLEY ASSY, POWER STEERING IDLE

main44350-20040iYS120198308-198708

44381BRACKET, POWER STEERING IDLE PULLEY

main44381-20010iYS120198308-198708

44403TUBE SUB-ASSY, PRESSURE FEED, NO.1

main44403-30010iYS120198308-198412

main44403-30011iYS120198412-198708

44411HOSE, PRESSURE FEED

main44411-30210iLS120;LS126..DLX198308-198708

main44411-30220iYS120198308-198708

main44411-30230iMS120..TBO198308-198509

main44411-30240iGS120,126..DLX,SAL,SDX,SPE198308-198509

main44411-30250iGS121..TWC198308-198708

main44411-30260iMS123,125198308-198708

main44411-30270iMS123,125198308-198708

W/ESC,ESC TO GEAR

main44411-30280×2iMS123,125198308-198708

W/ESC,PUMP TO ESC

main44411-30330iMS120..LPG198308-198708

main44411-30350iGS121..SPC198509-198708

main44411-30360iGS120,126..DLX,SAL,SDX,SPE,SSL198509-198708

44413AHOSE(FOR RETURN TUBE OUTLET)

main90445-18107iMS123,125,YS120198308-198708

44413BHOSE(FOR RESERVOIR TANK INLET)

main44412-30020iYS120198308-198708

main90447-18018iMS123,125198308-198708

W/ESC

44413CCLAMP(FOR RETURN TUBE OUTLET HOSE)

main90460-01001×2iMS123,125,YS120198308-198610

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001×2iMS123,125,YS120198308-198610

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-30060iLS120,YS120;GS12#,LS126,MS12#..DLX,ROY,SAL,SDX,SPE,SSL198308-198708

44443BRACKET, PUMP

main44443-22030iGS120,126..DLX,SAL,SDX,SPE198308-198509

main44443-22050iGS121..TWC198308-198708

main44443-24010iMS123,125198308-198708

main44443-28021iYS120198308-198708

main44443-30051iMS120..LPG198308-198708

main44443-30070iMS120..TBO198308-198509

main44443-30080iLS12#198308-198708

main44443-30091iGS120,126..DLX,SAL,SDX,SPE,SSL198509-198708

44458BRACKET, TUBE SUPPORT, NO.2

main44458-30030iYS120198308-198708

main44458-30070iYS120198308-198708

W/AIR CONDITIONER

9010510089

main90105-10089

9011910326

main90119-10326

9046716007

main90467-16007

9046716008

main90467-16008

9161160816

main91611-60816

9161160820

main91611-60820

9161161016

main91611-61016

9161161025

main91611-61025

9165140618

main91651-40618

23 parts on this diagram · 10 diagrams in section
