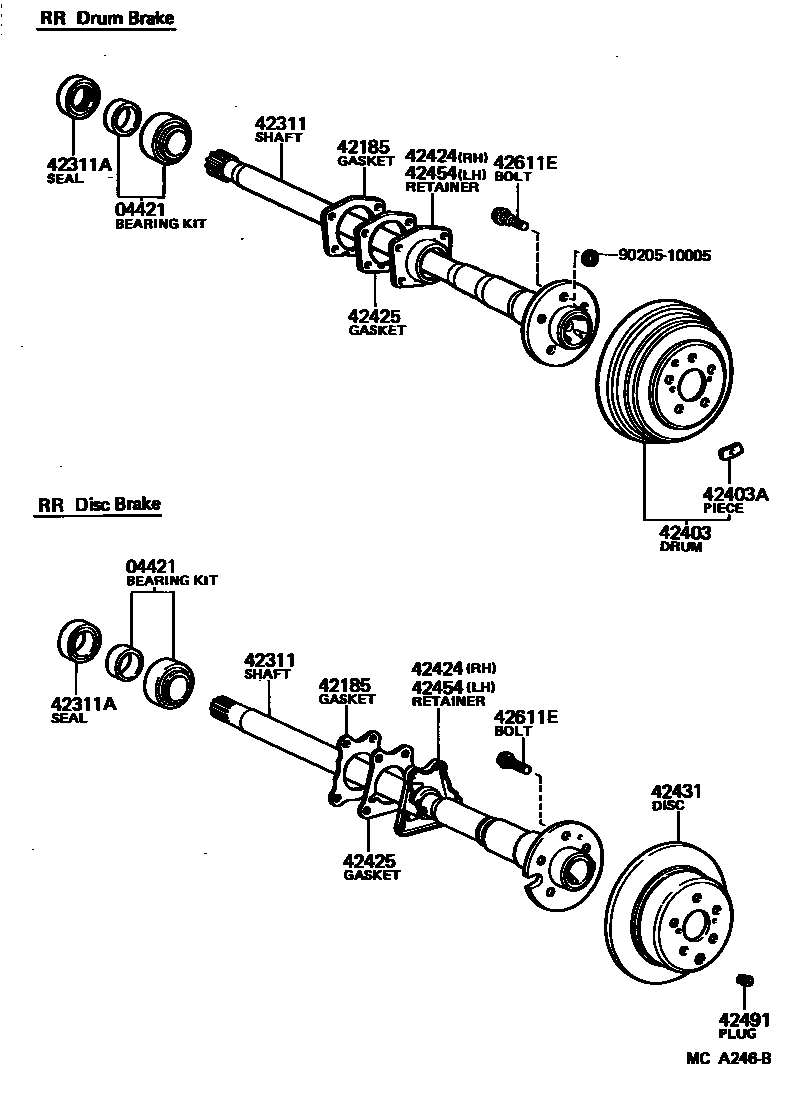

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04421BEARING KIT, REAR AXLE SHAFT

main04421-30030×2iGS120,LS120,YS120..(HT,SED)..(DLX,SDX,SPE,SSL,STD); MS120..LPG198308-198708

main04421-30040×2iMS120..TBO;GS120,LS120..(HT,SED)..SAL198308-198708

main04421-30051×2iGS120,126,LS12#..V,WG198308-198708

42185GASKET, REAR AXLE HOUSING END

main42185-22030×2iGS121,MS123,125198308-198708

main42185-30061×2iGS120,126,LS12#..V,WG; GS120,LS120,YS120..(HT,SED)..(DLX,SDX,SPE,SSL,STD); MS120..LPG198308-198708

main42185-30090×2iMS120..TBO;GS120,LS120..(HT,SED)..SAL198308-198708

42311SHAFT, REAR AXLE

main42301-30010×2iGS121,MS123,125198308-198708

main42311-30070×2iGS120,LS120,YS120..(HT,SED)..(DLX,SDX,SPE,SSL,STD); MS120..LPG198308-198708

main42311-30080×2iMS120..TBO;GS120,LS120..(HT,SED)..SAL198308-198708

main42311-31020×2iGS120,126,LS12#..V,WG198308-198708

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-38009×2iGS121,MS123,125198308-198708

main90311-52059×2iGS120,LS120,MS120,YS120..HT,SED198308-198708

main90311-58118×2iGS120,126,LS12#..V,WG198308-198708

42403DRUM SUB-ASSY, REAR BRAKE

main42431-30111×2iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01100iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

main90937-01117iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

main90937-01118iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

main90937-01119iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,SSL,STD; MS120..LPG198308-198708

main90937-01146iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,STD198308-198402

main90937-01178iGS120,LS120..WG..SAL;GS120,126,LS12#,YS120..DLX,SDX,SPE,STD198308-198402

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42405-30010iMS120..TBO;GS120,LS120..(HT,SED)..SAL198308-198708

main42424-30040iGS120,LS120,YS120..(HT,SED)..(DLX,SDX,SPE,SSL,STD); MS120..LPG198308-198708

main42424-31010iGS120,126,LS12#..V,WG198308-198708

42425GASKET, REAR AXLE BEARING RETAINER

main42425-30031×2iGS120,126,LS12#..V,WG; GS120,LS120,YS120..(HT,SED)..(DLX,SDX,SPE,SSL,STD); MS120..LPG198308-198708

main42425-30040×2iMS120..TBO;GS120,LS120..(HT,SED)..SAL198308-198708

42431DISC, REAR

main42431-30100×2iMS120..TBO;GS120,LS120..(HT,SED)..SAL198308-198708

main42431-40070×2iGS121,MS123,125198308-198708

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42406-30010iMS120..TBO;GS120,LS120..(HT,SED)..SAL198308-198708

main42424-30040iGS120,LS120,YS120..(HT,SED)..(DLX,SDX,SPE,SSL,STD); MS120..LPG198308-198708

main42424-31010iGS120,126,LS12#..V,WG198308-198708

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iMS120..TBO;GS120,121,LS120,MS123,125..(HT,SED)..(ROY,SAL)198308-198708

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047×10iGS12#,LS12#,MS12#,YS120198308-198708

9020510005

main90205-10005

13 parts on this diagram · 3 diagrams in section
