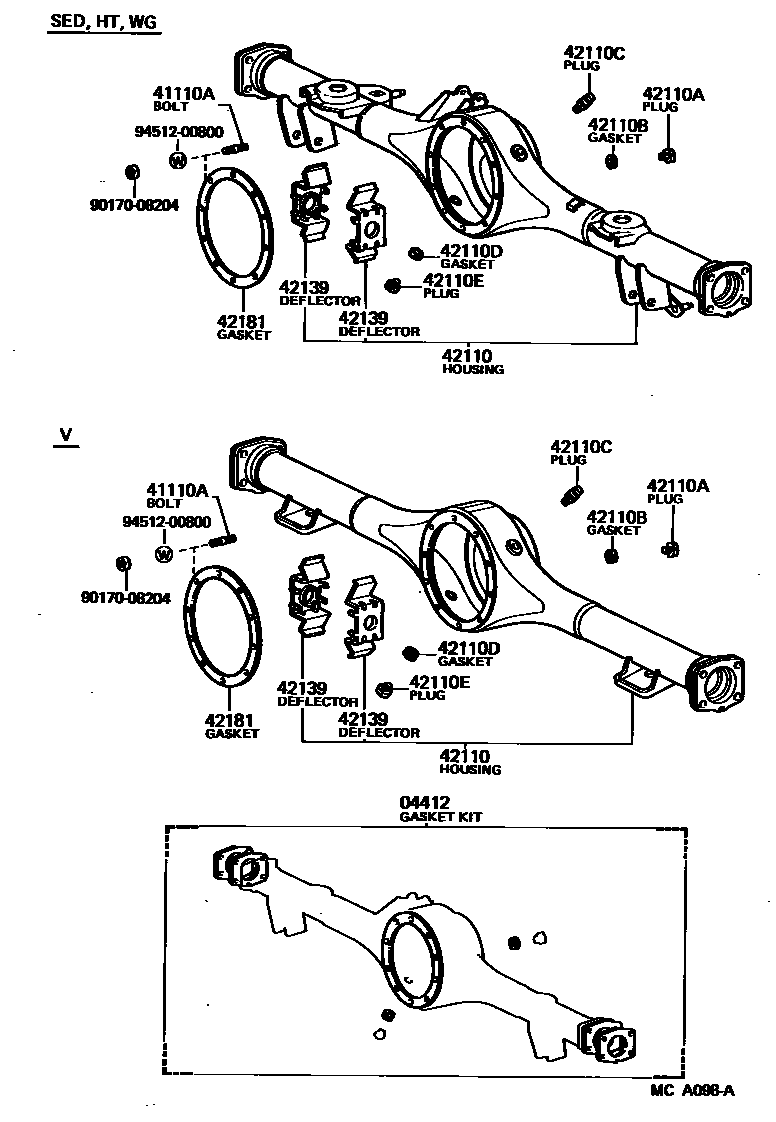

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1

04412GASKET KIT, REAR DIFFERENTIAL CARRIER

main04412-30010iGS120,LS120,YS120..(HT,SED)..(DLX,SDX,SPE,SSL,STD); MS120..LPG;GS120,126,LS12#..V,WG198308-198703

main04412-30020iGS120,LS120,YS120..(HT,SED)..(DLX,SDX,SPE,SSL,STD); MS120;GS120,126,LS12#..V,WG198703-198708

main04412-30030iMS120..TBO;GS120,LS120..(HT,SED)..SAL198308-198708

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-14122iYS120198308-198708

main41110-30160iGS120,126..MTM; MS120..TBO;LS126,MS120..4H198308-198708

main41110-30170iGS120..ATM198308-198708

main41110-30180iLS120,MS120..ATM..(DSL,LPG,TDE); LS126..DLX198308-198708

main41110-30190iGS121..4FC..TWC198509-198708

*AXC=F152,*FGR=41:8

main41110-30210iGS121..5F198308-198708

*AXC=F252,*FGR=41:9

main41110-30220iGS121..ATM198308-198509

*AXC=F362,*FGR=43:9

main41110-30250iMS123198308-198408

*AXC=F292,*FGR=41:10

main41110-30260iGS121..SPC198509-198708

*AXC=F252,*FGR=41:9

main41110-30320iLS120..TD198308-198708

main41110-30330iLS120..MTM..DSL198308-198708

main41110-30360iMS125198408-198708

*AXC=F312,*FGR=43:11

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08235×10iGS120,126,LS12#,MS120,YS120198308-198708

42110HOUSING ASSY, REAR AXLE

main42110-30230iGS120..(HT,SED)..(DLX,SDX,SPE,SSL,STD); LS120..(HT,SED)..(DLX,SDX,SPE,SSL)198308-198708

main42110-30240iMS120..TBO;GS120,LS120..(HT,SED)..SAL198308-198708

main42110-30250iLS120..STD;MS120,YS120..LPG198308-198708

main42110-30260iGS120,LS120..WG198308-198708

main42110-31110iGS126,LS126198308-198708

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18006iGS120,126,LS12#,MS120,YS120198606-198708

main90341-18049iGS120,126,LS12#,MS120,YS120198308-198606

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iGS120,126,LS12#,MS120,YS120198308-198708

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03031iGS120,126,LS12#,MS120,YS120198308-198708

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iGS120,126,LS12#,MS120,YS120198308-198708

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iGS120,126,LS12#,MS120,YS120198308-198708

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42108-30010×2iGS120,LS120,MS120,YS120198308-198708

main42139-30020×2iGS126,LS126198308-198708

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-30020iGS120,126,LS12#,MS120,YS120198308-198708

9017008204

main90170-08204

9451200800

main94512-00800

13 parts on this diagram · 3 diagrams in section
