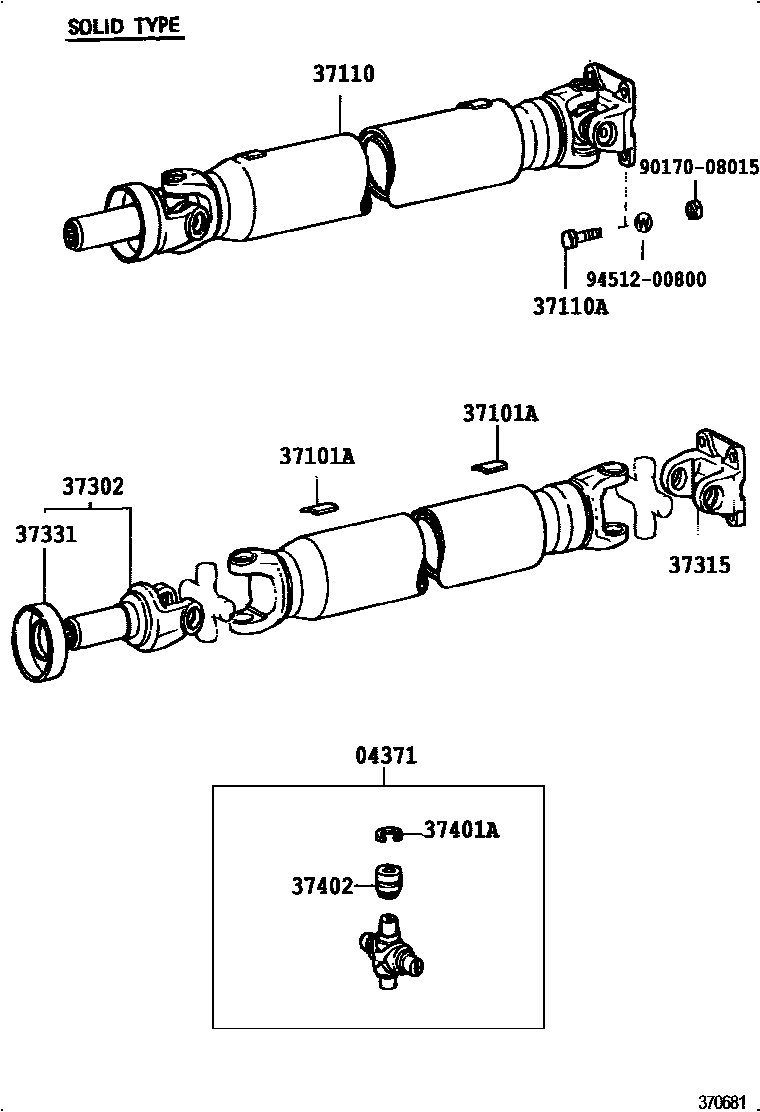

PROPELLER SHAFT & UNIVERSAL JOINT

0001 1 0002 1 0004 1 0005 1 0006 1

04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)

main04371-22010×3iGS120..4H..DLX;LS120..4H..STD198308-198412

TAXI SPEC

main04371-30020×3iMS125;GS121..SPC198408-198708

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132iGS12#,LS12#,MS12#,YS120198308-198708

main90937-01136iGS12#,LS12#,MS12#,YS120198308-198608

main90937-01140iGS12#,LS12#,MS12#,YS120198308-198608

main90937-01147iGS12#,LS12#,MS12#,YS120198308-198708

main90937-01148iGS12#,LS12#,MS12#,YS120198308-198708

main90937-01149iGS12#,LS12#,MS12#,YS120198308-198708

main90937-01150iGS12#,LS12#,MS12#,YS120198308-198708

main90937-01151iGS12#,LS12#,MS12#,YS120198308-198708

main90937-01152iGS12#,LS12#,MS12#,YS120198308-198708

main90937-01153iGS12#,LS12#,MS12#,YS120198308-198608

main90937-01154iGS12#,LS12#,MS12#,YS120198308-198608

main90937-01155iGS12#,LS12#,MS12#,YS120198308-198608

main90937-01156iGS12#,LS12#,MS12#,YS120198308-198608

main90937-01157iGS12#,LS12#,MS12#,YS120198308-198608

main90937-01158iGS12#,LS12#,MS12#,YS120198308-198608

37110SHAFT ASSY, PROPELLER

main37110-30070iGS12#,LS12#,MS120,123..DSL,EFI,TBO,TD,TDE,TWC198308-198708

SHELL TYPE

main37110-30080iLS120..4H..STD198412-198708

SOLID TYPE,TAXI SPEC

main37110-30090iYS120..4H..STD198308-198708

main37110-30100iMS125;GS121..SPC198408-198708

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082×8iGS12#,LS12#,MS120,123,YS120..DSL,EFI,LPG,TBO,TD,TDE,TWC198308-198708

main90105-10085×8iMS125;GS121..SPC198408-198708

37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE

main37302-20040iMS120,YS120..LPG198308-198708

main37302-30030iMS125;GS121..SPC198408-198708

37315YOKE, UNIVERSAL JOINT FLANGE

main37315-20020iLS120..4H..STD198412-198708

TAXI SPEC

main37315-35040×2iMS125;GS121..SPC198408-198708

37331COVER, SLIDING SHAFT DUST

main37331-30010iGS12#,LS12#,MS120,123,YS120..DSL,EFI,LPG,TBO,TD,TDE,TWC198308-198708

main37331-40010iMS125;GS121..SPC198408-198708

37401ARING, HOLE SNAP (FOR SPIDER BEARING)

main90520-26233×12iMS125;GS121..SPC198408-198708

main90520-26234×12iMS125;GS121..SPC198408-198708

main90520-26235×12iMS125;GS121..SPC198408-198708

main90521-29070×12iGS120..4H..DLX;LS120..4H..STD198308-198412

main90521-29071×12iGS120..4H..DLX;LS120..4H..STD198308-198412

main90521-29072×12iGS120..4H..DLX;LS120..4H..STD198308-198412

main90521-29073×12iGS120..4H..DLX;LS120..4H..STD198308-198412

37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER

main37402-22020×12iMS120,YS120..LPG198308-198708

RED PAINTED

main37402-30010×12iMS125;GS121..SPC198408-198708

main37402-30020×12iMS125;GS121..SPC198408-198708

RED PAINTED

9017008015

main90170-08015

9451200800

main94512-00800

11 parts on this diagram · 5 diagrams in section
