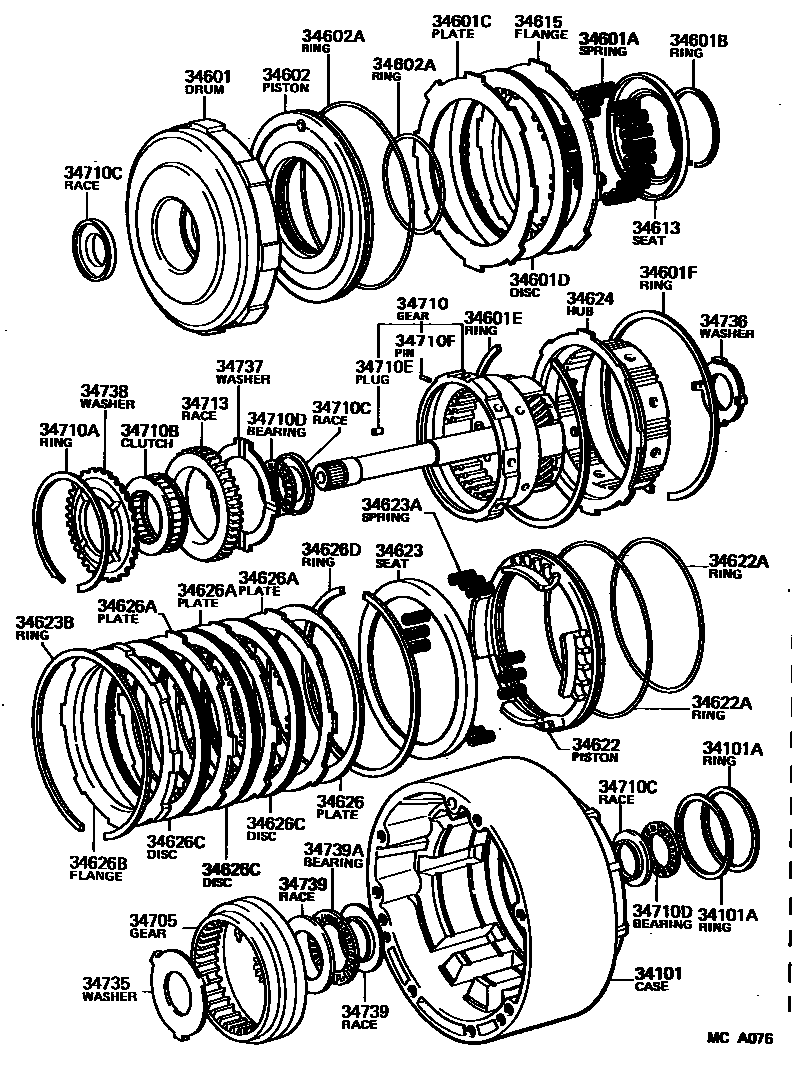

OVERDRIVE GEAR (ATM)

0001 1 0004 1 0006 1

34101CASE SUB-ASSY, OVERDRIVE

main34101-30052iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main34101-30062iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

34101ARING, OIL SEAL (FOR OVERDRIVE CASE)

main35617-16010×2iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-30011iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main34601-30022iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

main34601-30030iMS125;GS121..SPC198408-198708

34601ASPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH)

main90501-11023×18iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

34601BRING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH)

main90520-52262iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

34601CPLATE, CLUTCH (FOR OVERDRIVE)

main34618-30010iGS121..ATM198505-198508

main35634-22040×2iMS123198308-198312

main35634-30070iGS120,121,LS12#,MS12#..ATM198312-198408

34601DDISC, CLUTCH (FOR OVERDRIVE)

main35677-24010×2iMS123198308-198312

main35677-30030iGS120,121,LS12#,MS120..ATM198308-198312

34601ERING, HOLE SNAP, NO.1 (FOR OVERDRIVE)

main90521-99146iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

34601FRING, HOLE SNAP, NO.2 (FOR OVERDRIVE)

main90521-99001iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-30011iGS120,121,LS12#,MS120,123..ATM198308-198505

main34602-30020iMS125;GS121..SPC198408-198708

main34602-30030iGS121..ATM198505-198508

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

ID=56.8,OD=59.4

main90301-65005iMS125;GS121..SPC198408-198708

INNER,ID=65

main90301-99016iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

ID=117.6,OD=123.8

main90301-99036iMS125;GS121..SPC198408-198708

OUTER,ID=112.5

34613SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING

main34613-30010iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

34615FLANGE, OVERDRIVE CLUTCH

main34615-30010iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TBO)198505-198508

main34615-30020iMS125;GS121..SPC198408-198708

main34615-30030iMS125;GS121..SPC198408-198708

main34615-30040iMS125;GS121..SPC198408-198708

main34615-30050iMS125;GS121..SPC198408-198708

main34615-30060iMS125;GS121..SPC198408-198708

main34615-30070iMS125;GS121..SPC198408-198708

main35675-22010iGS121..ATM198505-198508

34622PISTON, OVERDRIVE BRAKE

main34622-22010iLS12#..4FC..DSL198308-198708

main34622-30010iMS120..ATM..LPG198308-198708

main34622-30020iGS120,LS120..ATM..(EFI,TDE)198511-198601

main34622-30030iMS125198408-198708

main34622-30040iGS121..4FC..TWC198511-198601

main34622-35010iGS121..SPC198509-198708

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99008iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

INNER

main90301-99009iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

OUTER

main90301-99015iLS12#,MS120..ATM..(DSL,LPG)198308-198708

INNER

main90301-99035iMS125;GS121..SPC198408-198708

OUTER

main90301-99037iMS125;GS121..SPC198408-198708

INNER

main90301-99192iLS12#,MS120..ATM..(DSL,LPG)198308-198708

OUTER

34623SEAT, OVERDRIVE BRAKE RETURN SPRING

main34623-30010iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main34623-30020iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

34623ASPRING, COMPRESSION (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90501-10671×16iGS120,LS12#,MS120..ATM..(DSL,EFI,LPG,TDE)198308-198708

main90501-11023×20iGS121,MS120,123..ATM..(TBO,TWC)198308-198708

34623BRING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING SEAT)

main90521-99004iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

main90521-99139iLS12#,MS120..ATM..(DSL,LPG)198308-198708

34624HUB, OVERDRIVE BRAKE

main34624-26010iMS123198308-198312

main34624-30010iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main34624-30030iGS120,121,LS120,MS120..ATM..(EFI,TBO,TDE,TWC)198308-198312

main34624-32010iGS120,121,LS120,MS120..ATM..(EFI,TBO,TDE,TWC)198408-198708

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-30020iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main34626-30050iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

34626APLATE, CLUTCH (FOR OVERDRIVE)

main34634-30010×3iGS121,MS120,123..ATM..(TBO,TWC)198308-198708

T=2.3

main35634-22060×3iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main35634-30080×3iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

T=2.0

34626BFLANGE, REAR CLUTCH (FOR OVERDRIVE)

main34625-22010iLS12#..4FC..DSL198308-198708

main34625-26010iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

main35675-22010iMS120..ATM..LPG198308-198708

34626CDISC, CLUTCH (FOR OVERDRIVE)

main35677-30030×2iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main35677-30040×3iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

34626DRING, HOLE SNAP (FOR OVERDRIVE)

main90521-99004iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

main90521-99139iLS12#,MS120..ATM..(DSL,LPG)198308-198708

34705GEAR SUB-ASSY, OVERDRIVE PLANETARY RING

main34705-14010iMS120..ATM..LPG198308-198508

main34705-30010iLS12#..4FC..DSL198308-198508

main34705-30020iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198608

main34705-30021iGS120,121,LS120..ATM..(EFI,TDE,TWC)198608-198708

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-14011iGS120,121,MS120,123..ATM..(EFI,TBO,TWC)198308-198708

main34710-22010iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main34710-30022iLS120..TDE198308-198708

main34710-30030iMS125;GS121..SPC198408-198708

34710ARING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR)

main90521-79148iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main90521-99003iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

34710BCLUTCH, 1WAY, NO.1(FOR OVERDRIVE)

main35791-30020iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main35791-30030iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

34710CRACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR)

main34739-30010iLS12#,MS120..ATM..(DSL,LPG)198308-198708

FR

main34739-30031iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

CTR

main34739-30041iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

FR

main35789-22010iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

RR

main35789-30050iMS125;GS121..SPC198408-198708

34710DBEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY GEAR)

main90374-23012iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

RR

main90374-24001iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

CTR

main90374-25005iMS125;GS121..SPC198408-198708

RR

main90374-28008iMS125;GS121..SPC198408-198708

FR

34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001×4iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

34710FPIN, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90250-03024×4iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-30010iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main34713-30020iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

main34713-32010iMS125;GS121..SPC198408-198708

34735WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1

main34735-30010iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198608

main34735-30020iGS120,121,LS120..ATM..(EFI,TDE,TWC)198608-198708

34736WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2

main34736-30010iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-30010iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main34737-30020iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

main34737-30030iMS125;GS121..SPC198408-198708

34738WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.4

main34738-30010iLS12#,MS120..ATM..(DSL,LPG)198308-198708

main34738-30020iGS120,121,LS120,MS120,123..ATM..(EFI,TBO,TDE,TWC)198308-198708

34739RACE, THRUST BEARING(FOR OVERDRIVE)

main34739-30020iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

FR

main35789-22030iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

RR

34739ABEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE)

main90374-28014iGS120,121,LS12#,MS120,123..ATM..(DSL,EFI,LPG,TBO,TDE,TWC)198308-198708

39 parts on this diagram · 3 diagrams in section
