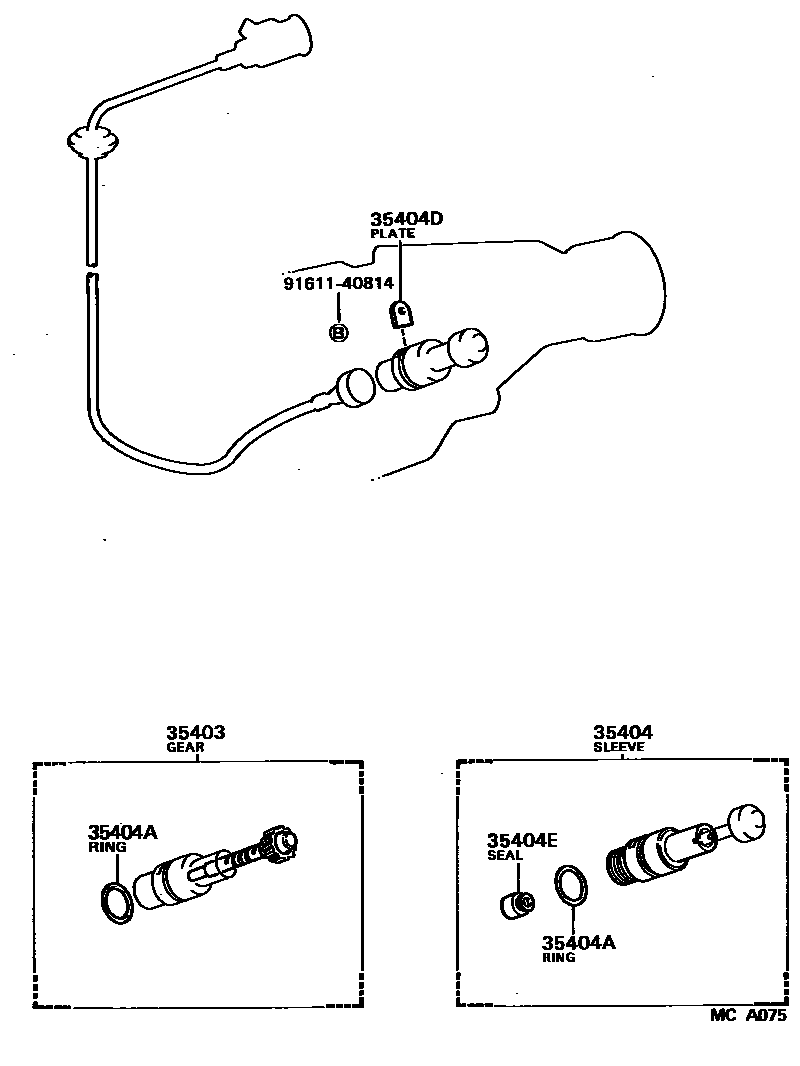

SPEEDOMETER DRIVEN GEAR (ATM)

35403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29016iGS120..ATM198308-198708

main33403-29065iMS120..ATM..LPG198308-198708

main33403-39016iGS121..SPC198308-198708

main33403-39036iLS12#..4FC198308-198708

main33403-39055iGS121..4FC..TWC198509-198708

main33403-69026iMS123198308-198408

main33403-69065iMS125198408-198708

35404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iGS120,121,LS12#,MS12#..ATM198308-198708

35404ARING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iGS120,121,LS12#,MS12#..ATM198607-198708

main90301-18018iGS120,121,LS12#,MS12#..ATM198308-198607

35404DPLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iGS120,121,LS12#,MS12#..ATM198308-198708

35404ESEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iGS120,121,LS12#,MS12#..ATM198308-198708

9161140814

main91611-40814

6 parts on this diagram · 1 diagram in section
