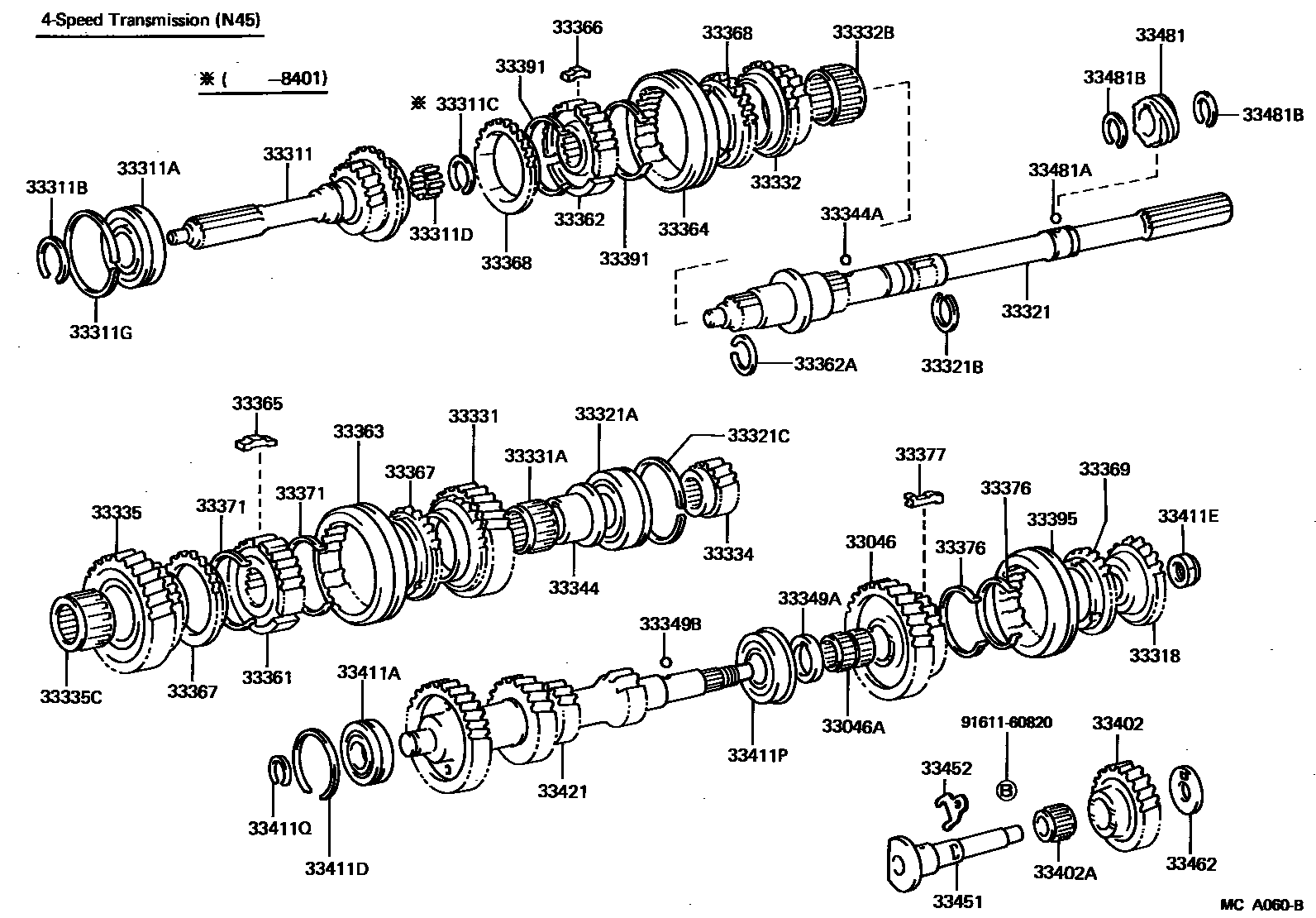

TRANSMISSION GEAR (MTM)

0001 1 0002 1

33046GEAR SUB-ASSY, COUNTERSHAFT, 4TH

main33046-28020iGS120,126,LS12#,MS120,YS120..4H198401-198708

main33046-30020iGS120,126,LS12#,MS120,YS120..4H198308-198401

33046ABEARING(FOR COUNTERSHAFT 4TH GEAR)

main90364-26002iGS120,126,LS12#,MS120,YS120..4H198308-198708

33311SHAFT, INPUT

main33301-22022iGS12#,YS120..5F198308-198402

main33301-22024iGS12#,YS120..5F198402-198708

main33301-30050iGS120,126,LS12#,MS120,YS120..4H198308-198401

main33301-30060iGS120,126,LS12#,MS120,YS120..4H198401-198601

main33301-30061iGS120,126,LS12#,MS120,YS120..4H198601-198708

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-32008iGS120,126,LS12#,MS120,YS120..4H198308-198401

main90363-32026iGS120,126,LS12#,MS120,YS120..4H198401-198708

main90363-35007iGS12#,LS12#,YS120..5F198308-198708

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-30214iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-30215iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-30216iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-30217iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-30218iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-30219iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-33107iGS12#,LS12#,YS120..5F198308-198708

main90520-33132iGS12#,LS12#,YS120..5F198308-198708

main90520-33168iGS12#,LS12#,YS120..5F198308-198708

main90520-33169iGS12#,LS12#,YS120..5F198308-198708

main90520-33170iGS12#,LS12#,YS120..5F198308-198708

main90520-33171iGS12#,LS12#,YS120..5F198308-198708

main90520-33172iGS12#,LS12#,YS120..5F198308-198708

33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)

main90521-33001iGS120,126,LS12#,MS120,YS120..4H198308-198401

33311DBEARING, INPUT SHAFT

main90361-06002×13iGS120,126,LS12#,MS120,YS120..4H198401-198708

main90361-06047×14iGS120,126,LS12#,MS120,YS120..4H198308-198401

main90364-19043iGS12#,LS12#,YS120..5F198308-198708

33311GRING, SHAFT SNAP (FOR FRONT BEARING)

main90520-71221iGS120,126,LS12#,MS120,YS120..4H198308-198401

ID=71.1

main90520-76001iGS12#,LS12#,YS120..5F198308-198708

main90520-76002iGS120,126,LS12#,MS120,YS120..4H198401-198708

ID=76.4

33318PIECE, GEAR SPLINE, NO.5

main33318-28010iGS120,126,LS12#,MS120,YS120..4H198308-198708

33321SHAFT, OUTPUT

main33321-22050iGS12#,LS12#,YS120..5F198308-198708

main33321-30111iGS120,126,LS12#,MS120,YS120..4H198308-198401

main33321-30112iGS120,126,LS12#,MS120,YS120..4H198401-198708

33321ABEARING (FOR OUTPUT SHAFT REAR)

main33350-22010iGS12#,LS12#,YS120..5F198308-198708

main90363-30032iGS120,126,LS12#,MS120,YS120..4H198308-198708

33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-25003iGS12#,LS12#,YS120..5F198308-198708

main90520-25004iGS12#,LS12#,YS120..5F198308-198708

main90520-25005iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-25006iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-25009iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-25010iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-25011iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-25012iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-25013iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-25014iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-25015iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-25016iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-25017iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-25270iGS12#,LS12#,YS120..5F198308-198708

main90520-25271iGS12#,LS12#,YS120..5F198308-198708

main90520-25272iGS12#,LS12#,YS120..5F198308-198708

main90520-25273iGS12#,LS12#,YS120..5F198308-198708

main90520-25284iGS12#,LS12#,YS120..5F198308-198708

main90520-25285iGS12#,LS12#,YS120..5F198308-198708

33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)

main90520-71221iGS120,126,LS12#,MS120,YS120..4H198308-198708

33331GEAR, REVERSE

main33031-30020iGS120,126,LS12#,MS120,YS120..4H198308-198708

main33331-22030iGS12#,LS12#,YS120..5F198308-198708

33331ABEARING (FOR REVERSE GEAR)

main90364-38034iGS120,126,LS12#,MS120,YS120..4H198308-198708

33332GEAR, 2ND

main33033-22021iGS12#,LS12#,YS120..5F198308-198708

main33033-30020iGS120,126,LS12#,MS120,YS120..4H198308-198601

main33033-30021iGS120,126,LS12#,MS120,YS120..4H198601-198708

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-35005iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90364-43004iGS12#,LS12#,YS120..5F198308-198708

33334GEAR, 4TH

main33336-28020iGS120,126,LS12#,MS120,YS120..4H198401-198708

main33336-30010iGS120,126,LS12#,MS120,YS120..4H198308-198401

33335GEAR, 1ST

main33032-22021iGS12#,LS12#,YS120..5F198308-198708

main33032-30020iGS120,126,LS12#,MS120,YS120..4H198308-198708

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-38002iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90364-43004iGS12#,LS12#,YS120..5F198308-198708

33344BUSH, REVERSE GEAR

main33344-30010iGS120,126,LS12#,MS120,YS120..4H198308-198708

33344AKEY OR BALL, REVERSE GEAR BEARING

main90360-06004iGS120,126,LS12#,MS120,YS120..4H198308-198708

33349AWASHER, 4TH GEAR

main33349-30020iGS120,126,LS12#,MS120,YS120..4H198308-198708

33349BBALL (FOR 4TH GEAR WASHER)

main90360-06004iGS120,126,LS12#,MS120,YS120..4H198308-198708

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-22020iGS12#,LS12#,YS120..5F198308-198708

main33361-35020iGS120,126,LS12#,MS120,YS120..4H198308-198708

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-22020iGS12#,LS12#,YS120..5F198308-198708

main33362-30040iGS120,126,LS12#,MS120,YS120..4H198308-198708

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-28010iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-28011iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-28012iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-28013iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-28245iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-28246iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90520-28248iGS120,126,LS12#,MS120,YS120..4H198308-198708

33363SLEEVE, TRANSMISSION HUB, NO.1

main33363-22021iGS12#,LS12#,YS120..5F198308-198708

main33364-30020iGS120,126,LS12#,MS120,YS120..4H198308-198601

main33364-30021iGS120,126,LS12#,MS120,YS120..4H198601-198708

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-22021iGS12#,LS12#,YS120..5F198308-198708

main33364-30020iGS120,126,LS12#,MS120,YS120..4H198308-198601

main33364-30021iGS120,126,LS12#,MS120,YS120..4H198601-198708

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-30040×3iGS120,126,LS126..4H198308-198402

main33365-30050×3iLS120,MS120,YS120..4H198308-198402

main33366-20011×3iGS12#,LS12#,YS120..5F198308-198708

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-20011×3iGS12#,LS12#,YS120..5F198308-198708

main33366-30030×3iGS120,126,LS12#,MS120,YS120..4H198308-198601

main33366-30031×3iGS120,126,LS12#,MS120,YS120..4H198601-198708

33367RING, SYNCHRONIZER, NO.1

main33367-22021×2iGS12#,LS12#,YS120..5F198308-198708

main33367-30040iGS120,126,LS12#,MS120,YS120..4H198308-198708

1ST

main33369-30020iLS120,MS120,YS120..4H198308-198402

REVERSE

33368RING, SYNCHRONIZER, NO.2

main33368-20012×2iGS120,126,LS12#,MS120,YS120..4H198308-198708

main33368-20013×2iGS12#,LS12#,YS120..5F198308-198708

33369RING, SYNCHRONIZER, NO.3

main33367-14010iGS12#,LS12#,MS120,YS120..MTM198308-198708

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-14031×2iGS120,126,LS12#,MS120,YS120..4H198308-198312

main33371-22033×2iGS12#,LS12#,YS120..5F198308-198708

main33391-22020×2iGS120,126,LS12#,MS120,YS120..4H198312-198708

33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)

main33371-14010×2iGS12#,LS12#,MS120,YS120..MTM198308-198708

33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)

main33366-14010×3iGS12#,LS12#,YS120..5F198308-198708

main33394-30010×3iGS120,126,LS12#,MS120,YS120..4H198308-198708

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33371-14031×2iGS120,126,LS12#,MS120,YS120..4H198308-198312

main33391-22020×2iGS120,126,LS12#,MS120,YS120..4H198312-198708

main33391-22030×2iGS12#,LS12#,YS120..5F198308-198708

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-14013iGS120,126,LS12#,MS120,YS120..4H198308-198708

main33395-22011iGS12#,LS12#,YS120..5F198308-198708

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-22022iGS12#,LS12#,YS120..5F198308-198512

main33402-22023iGS12#,LS12#,YS120..5F198512-198708

main33461-30030iGS120,126,LS12#,MS120,YS120..4H198308-198708

33402ABUSH OR BEARING (FOR REVERSE IDLER GEAR)

main90364-28006iGS120,126,LS12#,MS120,YS120..4H198308-198708

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90365-25010iGS120,126,LS12#,MS120,YS120..4H198308-198708

main90365-25014iGS12#,LS12#,YS120..5F198308-198708

33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1

main90520-49222iGS12#,LS12#,MS120,YS120..MTM198308-198708

33411ENUT(FOR COUNTER GEAR SHAFT)

main90179-20002iGS120,126,LS12#,MS120,YS120..4H198308-198504

main90179-20009iGS120,126,LS12#,MS120,YS120..4H198504-198708

33411PBEARING, COUNTERSHAFT CENTER

main33430-22010iGS12#,LS12#,YS120..5F198308-198708

main90365-31002iGS120,126,LS12#,MS120,YS120..4H198308-198708

33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2

main90520-23089iGS12#,LS12#,MS120,YS120..MTM198308-198708

main90520-23090iGS12#,LS12#,MS120,YS120..MTM198308-198708

main90520-23115iGS12#,LS12#,MS120,YS120..MTM198308-198708

main90520-23143iGS12#,LS12#,MS120,YS120..MTM198308-198708

main90520-23144iGS12#,LS12#,MS120,YS120..MTM198308-198708

main90520-23145iGS12#,LS12#,YS120..5F198308-198708

main90520-23146iGS12#,LS12#,YS120..5F198308-198708

33421GEAR, COUNTER

main33421-22020iGS12#,YS120..5F198308-198402

main33421-22021iGS12#,YS120..5F198402-198708

main33421-30120iGS120,126,LS12#,MS120,YS120..4H198308-198401

main33421-30130iGS120,126,LS12#,MS120,YS120..4H198401-198708

33451SHAFT, REVERSE IDLER GEAR

main33451-22021iGS12#,LS12#,YS120..5F198308-198708

main33451-30040iGS120,126,LS12#,MS120,YS120..4H198308-198708

33452STOPPER, REVERSE IDLER GEAR SHAFT

main33452-22020iGS12#,LS12#,YS120..5F198308-198708

main33452-30010iGS120,126,LS12#,MS120,YS120..4H198308-198708

33462WASHER, REVERSE IDLER THRUST

main33462-30020iGS120,126,LS12#,MS120,YS120..4H198308-198708

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-14031iGS12#,LS126..5F198308-198708

main33481-20070iGS120,126,LS126..(V,WG)..4H198308-198708

main33481-22010iLS120,YS120..4H198308-198708

main33481-22020iYS120..5F198308-198708

main33481-22030iLS120..5F198308-198708

main33481-30040iGS120,MS120..SED..4H198308-198708

33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)

main90360-06004iGS120,126,LS12#,MS120,YS120..4H198308-198708

33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)

main90520-26179×2iGS120,126,LS12#,MS120,YS120..4H198308-198708

9161160820

main91611-60820

54 parts on this diagram · 2 diagrams in section
