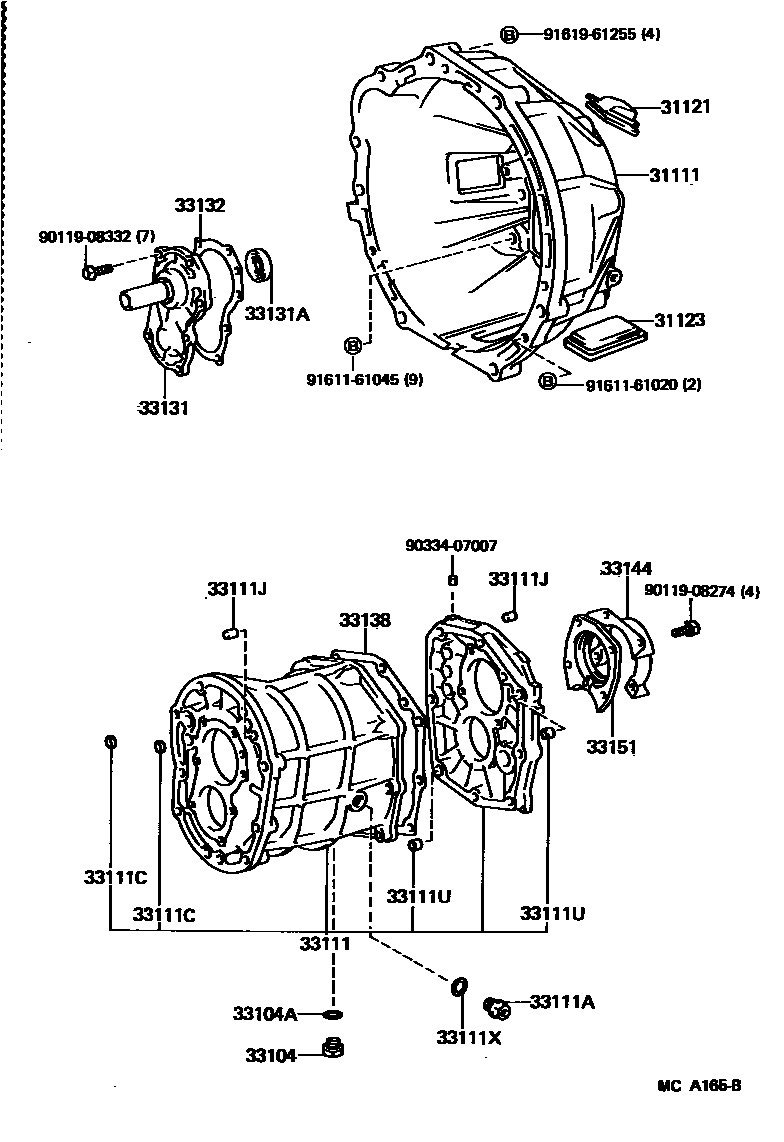

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

31111HOUSING, CLUTCH

main31111-20230iYS120198701-198708

main31111-22091iMS120..4H198308-198708

main31111-22111iLS12#..MTM198308-198708

main31111-22130iGS12#..MTM198308-198708

main31111-30190iYS120198308-198701

31121COVER, CLUTCH HOUSING, NO.1

main31121-30040iYS120198308-198708

31123COVER, CLUTCH HOUSING, NO.2

main31121-20020iYS120198701-198708

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iGS12#,LS12#,MS120,YS120..MTM198308-198708

33104AGASKET, DRAIN PLUG(MTM)

main90430-18007iGS12#,LS12#,MS120,YS120..MTM198308-198408

main90430-18008iGS12#,LS12#,MS120,YS120..MTM198509-198708

33111CASE, MANUAL TRANSMISSION

main33101-22021iGS12#..5F198408-198508

main33101-22030iGS12#,LS12#..5F198508-198708

main33101-22040iYS120..5F198408-198708

main33101-30040iYS120..5F198308-198408

main33101-30050iGS120,126,LS12#,MS120,YS120..4H198308-198401

main33101-30061iGS120,126,LS12#,MS120,YS120..4H198401-198708

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iGS12#,LS12#,YS120..5F198308-198708

main90341-18006iGS120,126,LS12#,MS120,YS120..4H198308-198708

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004×3iGS12#,LS12#,MS120,YS120..MTM198308-198708

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×6iGS12#,LS12#,MS120,YS120..MTM198308-198708

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×2iGS120,126,LS12#,MS120,YS120..4H198308-198708

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18007iGS12#,LS12#,MS120,YS120..MTM198308-198408

main90430-18008iLS12#,YS120..5F198408-198509

33131RETAINER, BEARING, FRONT(MTM)

main33131-22020iGS12#,LS12#,YS120..5F198308-198708

main33131-30050iGS120,126,LS12#,MS120,YS120..4H198308-198401

main33131-30061iGS120,126,LS12#,MS120,YS120..4H198401-198708

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iGS12#,LS12#,MS120,YS120..MTM198308-198708

33132GASKET, FRONT BEARING RETAINER(MTM)

main33132-22010iGS12#,LS12#,YS120..5F198308-198708

main33132-30050iGS120,126,LS12#,MS120,YS120..4H198308-198401

main33132-30060iGS120,126,LS12#,MS120,YS120..4H198401-198708

33138GASKET, INTERMEDIATE PLATE

main33138-30010iGS120,126,LS12#,MS120,YS120..4H198308-198708

main33142-22010iGS12#,LS12#,YS120..5F198308-198708

33144DEFLECTOR, EXTENSION HOUSING OIL(MTM)

main33144-30022iGS120,126,LS12#,MS120,YS120..4H198308-198708

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-22010iGS12#,LS12#,YS120..5F198308-198708

main33151-30040iGS120,126,LS12#,MS120,YS120..4H198308-198708

9011908274

main90119-08274

9011908332

main90119-08332

9033407007

main90334-07007

9161161020

main91611-61020

9161161045

main91611-61045

9161961255

main91619-61255

23 parts on this diagram · 7 diagrams in section
