TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

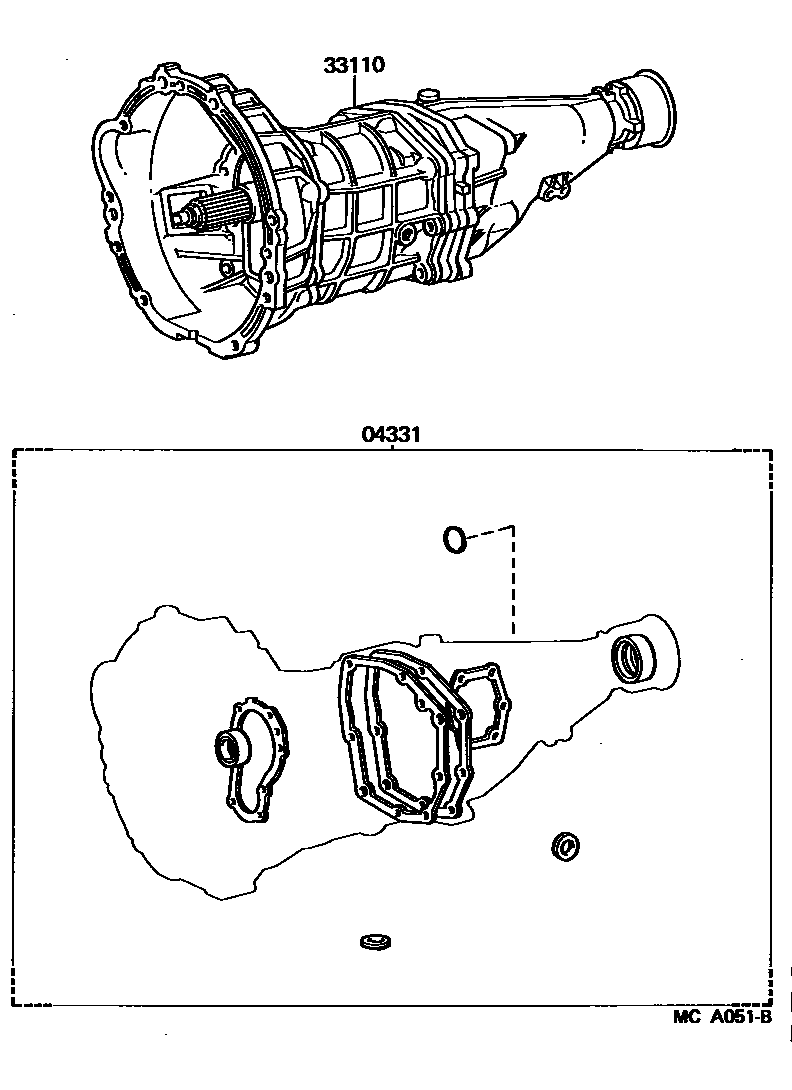

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-20040i198308-198401

main04331-20041i198401-198708

main04331-20050i198308-198708

33110TRANSMISSION ASSY, MANUAL

main33030-3A020i198308-198706

main33030-3A040i198308-198708

main33030-3A050i198308-198708

main33030-3A060i198308-198708

main33030-3A070i198308-198708

main33030-3A080i198308-198706

main33030-3A120i198308-198708

main33030-3A130i198308-198708

main33030-3A150i198308-198708

main33030-3A190i198308-198708

main33030-3A240i198706-198708

main33030-3A260i198706-198708

2 parts on this diagram · 2 diagrams in section
