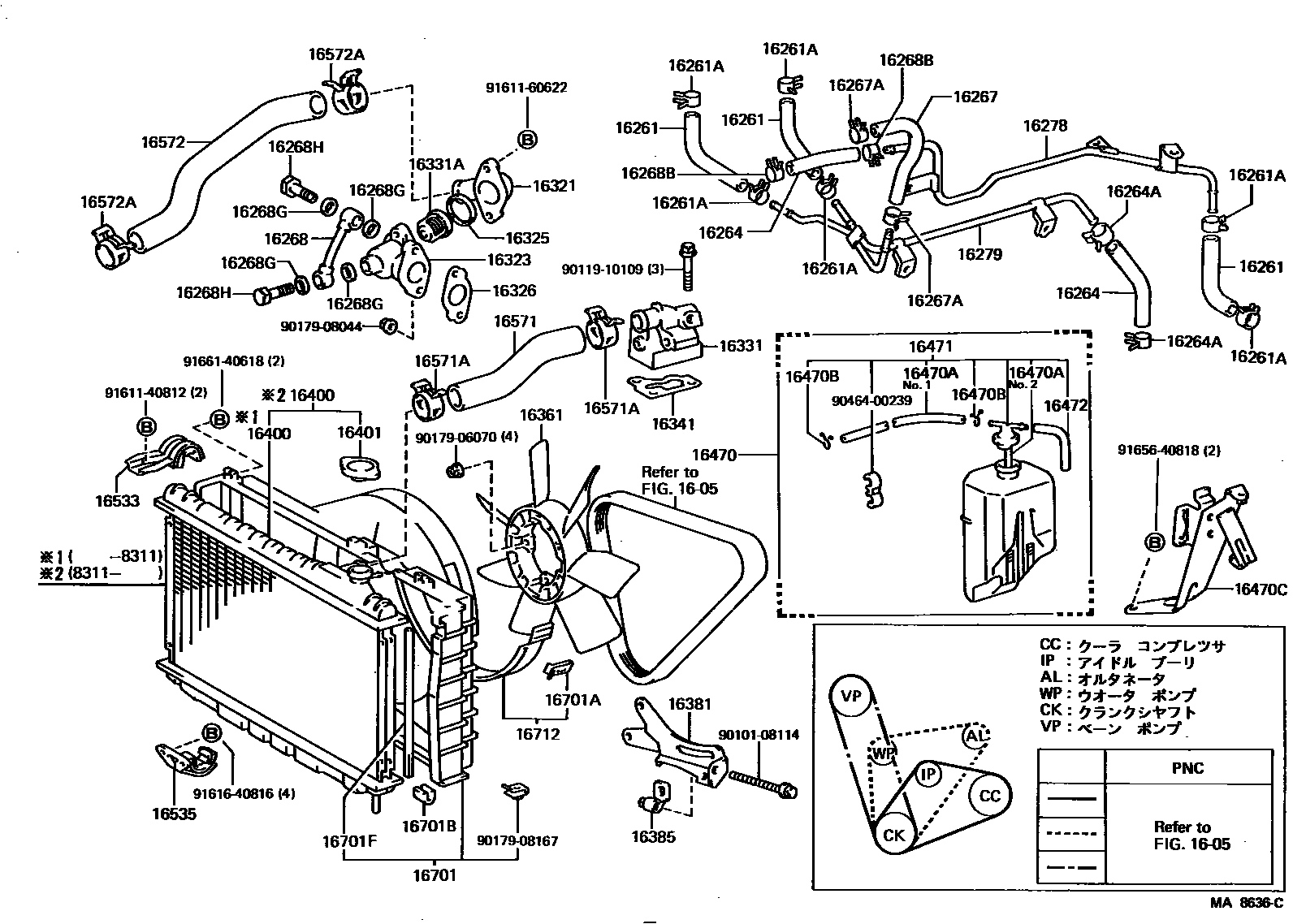

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0014 1 0015 1

1605

16261HOSE, WATER BY-PASS

main16261-41090iMTEU..MS120198308-198509

main16261-54021i2L,2LT#..LS12#198308-198708

main16261-70020i1GE#..GS120,126198308-198708

sub16261-70030

main16261-88300i1GG#..GS121198308-198708

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001iMTEU..MS120198308-198708

sub96135-51300

main90467-15004i2L,2LT#..LS12#198308-198708

main90467-26003i1GG#..GS121198308-198708

sub90467-26007

16264HOSE, WATER BY-PASS, NO.2

main16264-54010i2L,2LT..LS12#198308-198708

main16264-54020i2LTE,2LTHE..LS120198308-198708

main99555-10100i1GE#..GS120,126198308-198708

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i1GE#..GS120,126198308-198708

sub96135-51300

main90467-15004i2L,2LT#..LS12#198308-198708

16267HOSE, WATER BY-PASS, NO.3

main16267-54010i2L,2LT..LS12#198308-198708

main16267-70020i1GEU..GS120198509-198708

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-13001i1GEU..GS120198509-198708

sub96135-51300

main90467-15004i2L,2LT..LS12#198308-198708

16268PIPE, WATER BY-PASS, NO.1

main16268-41140i5MGEU,6MGEU,MTEU..MS12#198308-198708

main16268-41150iMPU..MS120198308-198708

main16268-70010i1GE#..GS120,126198308-198408

sub16268-70011

main16268-70011i1GE#..GS120,126198408-198708

main16268-70020i1GGZEU..GS121198509-198708

sub16268-70021

main16268-73020i3YPU..YS120198308-198502

sub16268-73090

sub90201-08018

sub91651-40818

main16268-73021i3YPU..YS120198502-198608

sub16268-73090

main16268-73090i3YPU..YS120198608-198708

main16268-88300i1GGEU..GS121198308-198602

sub16268-88301

main16268-88301i1GGEU..GS121198602-198708

sub16268-88302

16268BCLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)

main90467-13001i1GEU..GS120198509-198708

sub96135-51300

main96112-10220i5MGEU,6MGEU,MTEU..MS12#198308-198708

16268GGASKET(FOR WATER BY-PASS PIPE)

main16347-70010i1GGZEU..GS121198509-198708

sub16347-88300

main90430-12005iMTEU..MS120198308-198509

WATER PUMP & MANIFOLD SIDE

main90430-18012iMTEU..MS120198308-198509

TURBO SIDE

main90430-18012i1GE#..GS120,126198308-198708

16268HBOLT, UNION(FOR WATER BY-PASS PIPE)

main90401-12097iMTEU..MS120198308-198509

WATER PUMP & MANIFOLD SIDE

main90401-18006i1GE#..GS120,126198308-198708

main90401-18012iMTEU..MS120198308-198509

TURBO SIDE

16278PIPE, WATER BY-PASS, NO.2

main16278-41030iMTEU..MS120198308-198509

MANIFOLD TO HOSE

main16278-70021i1GEJ..GS126198308-198509

main16278-70030i1GEU..GS120198308-198509

main16278-70040i1GEU..GS120198509-198708

main16278-70050i1GGZEU..GS121198509-198708

main16278-88300i1GGEU..GS121198308-198708

16279PIPE, WATER BY-PASS, NO.3

main16279-41020iMTEU..MS120198308-198509

main16279-70010i1GEU..GS120198308-198509

main16279-70020i1GEU..GS120198509-198708

main16279-70030i1GEJ..GS126198509-198708

16321INLET, WATER

main16321-70011i1GEU,1GGZEU,1GEJ..GS12#198308-198708

main16321-71010i3YPU..YS120198308-198708

main16321-88301i1GGEU..GS121198308-198708

16323HOUSING, WATER INLET

main16323-70011i1GE#..GS120,126198308-198708

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i3YPU..YS120198308-198708

sub16325-63011

16326GASKET, WATER INLET HOUSING, NO.2

main16326-70011i1GEU,1GGEU,1GEJ..GS12#198308-198708

sub16326-70012

16331OUTLET, WATER

main16304-70010i1GGZEU..GS121198509-198708

main16331-41080iMPU..MS120198308-198508

main16331-41090iMPU..MS120198508-198708

main16331-43010i5MGEU,6MGEU..MS123,125198308-198708

main16331-43020iMTEU..MS120198308-198509

main16331-54030i2L,2LT#..LS12#..DLX,SDX,SPE,SSL,STD198308-198708

main16331-54040i2LTHE..LS120..SDX,SPE198408-198509

main16331-54050i2L,2LT,2LTE..LS12#198308-198708

W/RADIATOR SHUTTER

main16331-54070i2LTHE..LS120198408-198509

W/RADIATOR SHUTTER

main16331-70020i1GEJ..GS126198308-198509

main16331-70030i1GEJ..GS126198308-198708

main16331-70050i1GEU..GS120198509-198708

main16331-71010i3YPU..YS120198308-198708

main16331-88300i1GGEU..GS121198308-198708

16331ATHERMOSTAT

main90916-03046i3YPU..YS120198308-198502

main90916-03054iMPU,MTEU..MS120198308-198708

sub90916-03083

main90916-03055i5MGEU,6MGEU..MS123,125198308-198708

sub90916-03078

main90916-03055iMPU,MTEU..MS120198308-198708

sub90916-03078

main90916-03060i1GE#..GS120,126198308-198708

sub90916-03090

main90916-03062i2L,2LT#..LS12#198308-198708

sub90916-03072

main90916-03063i1GG#..GS121198308-198708

main90916-03069i3YPU..YS120198502-198708

sub90916-03046

16341GASKET, WATER OUTLET

main16341-41010iMPU,MTEU..MS120198308-198708

sub16341-38021

main16341-43010i5MGEU,6MGEU..MS123,125198308-198708

sub16341-43011

main16341-54011i2L,2LT#..LS12#198308-198708

sub16341-54030

main16341-70010i1GE#..GS120,126198308-198708

main16341-70020i1GGZEU..GS121198509-198708

main16341-71010i3YPU..YS120198308-198708

sub16341-71011

16361FAN

main16361-38010i3YPU..YS120198308-198708

main16361-41050i2L,2LT#..LS12#198308-198708

main16361-41070i1GG#..GS121198308-198708

sub16361-41071

main16361-41090i5MGEU,6MGEU,MPU,MTEU..MS12#198308-198708

7 BLADES

main16361-70010i1GE#..GS120,126198308-198507

main16361-70020i1GE#..GS120,126198507-198708

16381BAR, FAN BELT ADJUSTING

main16381-43010i5MGEU,6MGEU,MPU,MTEU..MS12#198308-198708

main16381-54011i2L,2LT#..LS12#198308-198708

main16381-70020i1GE#..GS120,126198308-198408

sub16381-70021

main16381-70021i1GE#..GS120,126198408-198708

main16381-70030i1GGZEU..GS121198509-198708

main16381-73010i3YPU..YS120198308-198508

sub16381-73011

main16381-73011i3YPU..YS120198508-198708

main16381-88300i1GGEU..GS121198308-198708

sub16381-88301

16385SLIDER, FAN BELT ADJUSTING

main16385-70011i1GE#..GS120,126198308-198708

main16385-71010i3YPU..YS120198308-198708

16400RADIATOR ASSY

main16400-41350iMPU..MS120..4H198404-198708

W/CAP

main16400-41360iMPU..MS120..ATM198404-198607

W/CAP

sub16400-43180

main16400-41361iMPU..MS120..ATM198607-198708

W/CAP

sub16400-42070

main16400-41370iMTEU..MS120198404-198509

W/CAP

main16400-42070i1GGZEU..GS121198408-198708

W/CAP

main16400-43170i1GEU,1GGEU..GS120,121..MTM198311-198708

W/CAP

sub16400-43180

main16400-43180i5MGEU..MS123198311-198607

W/CAP

main16400-43181i1GEU..GS120..ATM198607-198708

W/CAP

sub16400-42070

main16400-43190i5MGEU..MS123..HT198312-198408

G SPEC,W/SUN ROOF,W/CAP

main16400-54300i2L..LS120..MTM198404-198708

W/CAP

sub16400-54320

main16400-54310i2LT..LS120;2L..LS126..MTM198404-198708

W/CAP

sub16400-54320

main16400-54320i2L,2LTE..LS12#..4FC198404-198607

W/CAP

main16400-54321i2L..LS12#..4FC198607-198708

W/CAP

main16400-54450i2LTHE..LS120198408-198607

W/CAP

main16400-54451i2LTHE..LS120198607-198708

W/CAP

main16400-70080i1GEJ..GS126198404-198708

W/CAP

main16400-73060i3YPU..YS120198404-198708

W/CAP

main16410-41240iMPU..MS120..4H198308-198404

W/O CAP

sub16400-41350

main16410-41250iMPU..MS120..ATM198308-198404

W/O CAP

sub16400-41360

main16410-41260iMTEU..MS120198308-198404

W/O CAP

sub16400-41370

main16410-43090i1GEU,1GGEU..GS120,121..MTM198308-198311

W/O CAP

sub16400-43170

main16410-43100i5MGEU..MS123198308-198311

W/O CAP

sub16400-43180

main16410-43120i5MGEU..MS123..HT198308-198312

G SPEC,W/SUN ROOF,W/O CAP

sub16400-43190

main16410-54300i2L..LS120..MTM198308-198404

W/O CAP

sub16400-54300

main16410-54310i2LT..LS120;2L..LS126..MTM198308-198404

W/O CAP

sub16400-54310

main16410-54320i2L,2LTE..LS12#..4FC198308-198404

W/O CAP

sub16400-54320

main16410-70080i1GEJ..GS126198308-198404

W/O CAP

sub16400-70080

main16410-73040i3YPU..YS120198308-198404

W/O CAP

sub16400-73060

16401CAP SUB-ASSY, RADIATOR

main16401-63010i2L,2LT#..LS12#198308-198708

main16401-71010i1GEJ..GS126198308-198708

sub16401-54750

16470TANK ASSY, RADIATOR RESERVE

main16470-41150i5MGEU,6MGEU,MPU,MTEU..MS12#198308-198708

main16470-70070i1GGZEU..GS121198509-198708

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90099-33534i1GGZEU..GS121198509-198708

main90445-12078i1GEU,1GGEU,1GEJ..GS12#198412-198708

main90445-12078i1GGZEU..GS121198509-198708

main90445-12138i1G#..GS12#198308-198412

sub90445-12078

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i3YPU..YS120198308-198708

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16402-41070i3YPU..YS120198308-198708

main16402-70040i1GGZEU..GS121198509-198708

16471CAP SUB-ASSY, RESERVE TANK

main16405-41080i3YPU..YS120198308-198708

sub16405-70040

main16405-70040i1GGZEU..GS121198509-198708

16472HOSE, BREATHER

main85338-41150i3YPU..YS120198604-198708

main85338-89102i1GGZEU..GS121198509-198708

16533SUPPORT, RADIATOR, UPPER

main16505-41010i5MGEU,6MGEU,MPU,MTEU..MS12#198308-198708

16535SUPPORT, RADIATOR, LOWER

main16506-41010i2L,2LT#..LS12#198308-198708

16571HOSE, RADIATOR, INLET

main16571-41110iMPU,MTEU..MS120198308-198708

main16571-43050i5MGEU,6MGEU..MS123,125198308-198708

main16571-54150i2L,2LT#..LS12#198308-198708

main16571-70060i1GE#..GS120,126198308-198708

sub16571-70180

main16571-70070i1GGEU..GS121198308-198708

main16571-70120i1GGZEU..GS121198509-198708

main16571-73030i3YPU..YS120198308-198708

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i2L,2LT#..LS12#198308-198708

RADIATOR SIDE

sub90467-37003

main90467-37001i3YPU..YS120198308-198509

sub90467-37003

main90467-37002i3YPU..YS120198308-198708

OUTLET SIDE

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-41110iMPU,MTEU..MS120198308-198708

main16572-43040i5MGEU,6MGEU..MS123,125198308-198708

main16572-54150i2L,2LT#..LS12#198308-198708

main16572-70060i1GE#..GS120,126198308-198708

main16572-70070i1GGEU..GS121198308-198708

main16572-70100i1GGZEU..GS121198509-198708

main16572-73020i3YPU..YS120198308-198708

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37001i1GEU,1GG#,1GEJ..GS12#198308-198708

RADIATOR SIDE

sub90467-37003

main90467-37002i1GEU,1GGEU,1GEJ..GS12#198308-198708

WATER PUMP SIDE

sub90467-37005

main90467-37002i1GGZEU..GS121198509-198708

INLET NO.2 SIDE

sub90467-37005

main90467-37002i1GGZEU..GS121198509-198708

INLET SIDE

sub90467-37005

main96111-10440i3YPU..YS120198308-198509

INLET SIDE

main96111-10460i2L,2LT#..LS12#198308-198708

RADIATOR SIDE

main96111-10490i2L,2LT#..LS12#198308-198708

WATER PUMP SIDE

16701SHROUD SUB-ASSY, FAN

main16701-41030i5MGEU,6MGEU,MPU,MTEU..MS12#198308-198708

main16701-70010i1G#..GS12#198308-198708

main16701-70030i1GEU,1GGZEU,1GEJ..GS12#198507-198708

main16711-54130i2L,2LT#..LS12#198308-198708

main16711-54140i2L,2LT#..LS12#198308-198708

W/RADIATOR SHUTTER

main16711-73030i3YPU..YS120198308-198708

16701ACLIP(FOR FAN SHROUD)

main90468-06013i1GEU,1GG#,1GEJ..GS12#198308-198708

16701BCUSHION, FAN SHROUD

main90541-11002i2L,2LT#..LS12#..DLX,SDX,SPE,SSL,STD198308-198708

16701FSEAL(FOR FAN SHROUD)

main16832-41010i1GEU,1GG#,1GEJ..GS12#198308-198708

16712SHROUD, FAN, NO.2

main16702-41010i5MGEU,6MGEU,MPU,MTEU..MS12#198308-198708

main16702-70010i1GEU,1GG#,1GEJ..GS12#198308-198708

main16712-54050i2L,2LT#..LS12#198308-198708

main16712-73010i3YPU..YS120198308-198708

9010108114

main90101-08114

9011910109

main90119-10109

9017906070

main90179-06070

9017908044

main90179-08044

9017908167

main90179-08167

9046400239

main90464-00239

9161140812

main91611-40812

9161160622

main91611-60622

9161640816

main91616-40816

9165640818

main91656-40818

9166140618

main91661-40618

53 parts on this diagram · 14 diagrams in section
