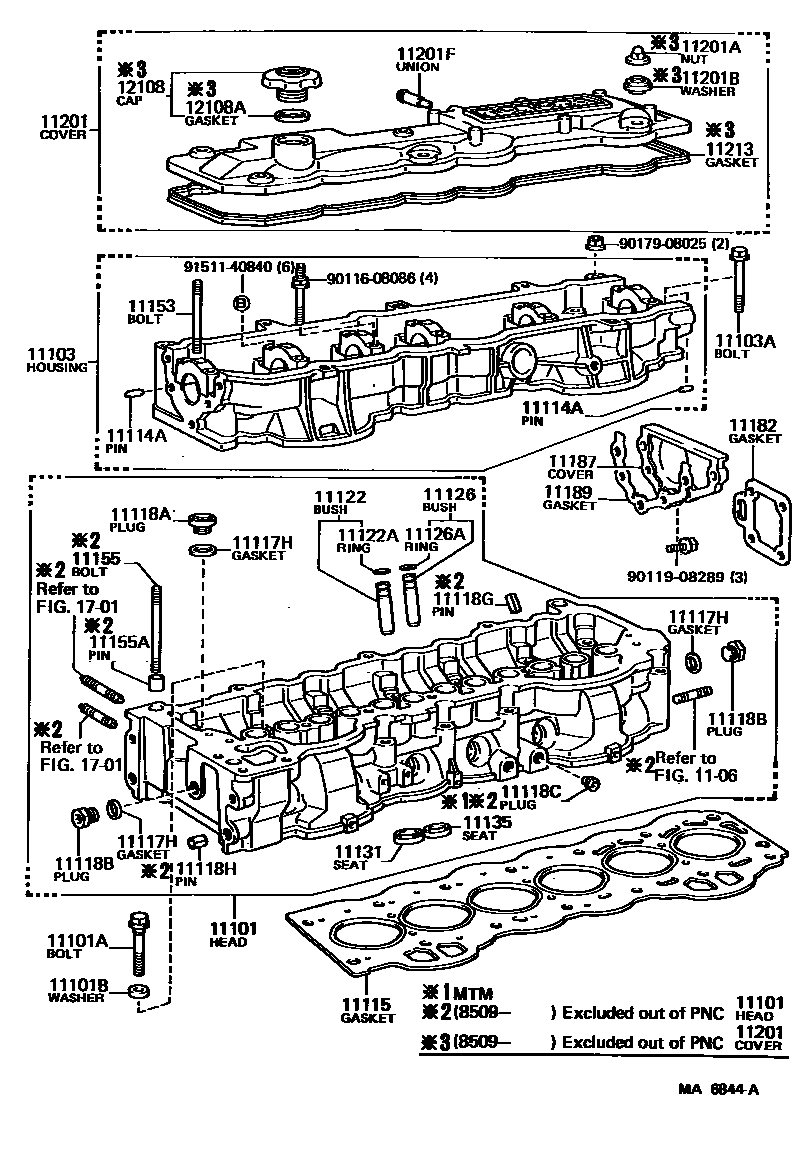

CYLINDER HEAD
1106TIMING GEAR COVER & REAR END PLATE
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
*10-1.25PX97.5-22
*12-1.25PX96-22
*12-1.25PX166.5-21
*12-1.25PX112-24
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11103HOUSING SUB-ASSY, CAMSHAFT
11103ABOLT(FOR CAMSHAFT HOUSING SET)
*8-1.25PX67-30
11114HOUSING, CAMSHAFT, NO.2
11114APIN, STRAIGHT
11115GASKET, CYLINDER HEAD
11117GASKET, CAMSHAFT HOUSING, NO.1
11117HGASKET(FOR WATER HOLE)
P.N.C 11118B
P.N.C 11118A
11118GASKET, CAMSHAFT HOUSING, NO.2
11118APLUG, STRAIGHT, NO.1
11118BPLUG, STRAIGHT, NO.2
11118CPLUG, STRAIGHT, NO.3
11118GPIN, SLOTTED SPRING, NO.1
11118HPIN, SLOTTED SPRING, NO.2
11122BUSH, INTAKE VALVE GUIDE
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11153BOLT, STUD(FOR CAMSHAFT HOUSING TO CYLINDER HEAD COVER)
L=75,S=9&9
11155BOLT, STUD(FOR HEAD TO CAMSHAFT HOUSING)
L=114,S=20&12
11155APIN, RING W/HEAD
11182GASKET, CYLINDER HEAD REAR PLATE
11187COVER, CAMSHAFT HOUSING, REAR
11189GASKET, CAMSHAFT HOUSING REAR COVER
11201COVER SUB-ASSY, CYLINDER HEAD
NO.1
NO.1
NO.1
NO.1
NO.2
NO.2
NO.2
NO.2
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
CTR,RR
FR
11201FUNION(FOR POSITIVE CRANKCASE VENTILATION)
NO.1
NO.2
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
1701MANIFOLD
9011608086
main90116-08086
9011908289
main90119-08289
9017908025
main90179-08025
9151140840
main91511-40840
41 parts on this diagram · 8 diagrams in section
