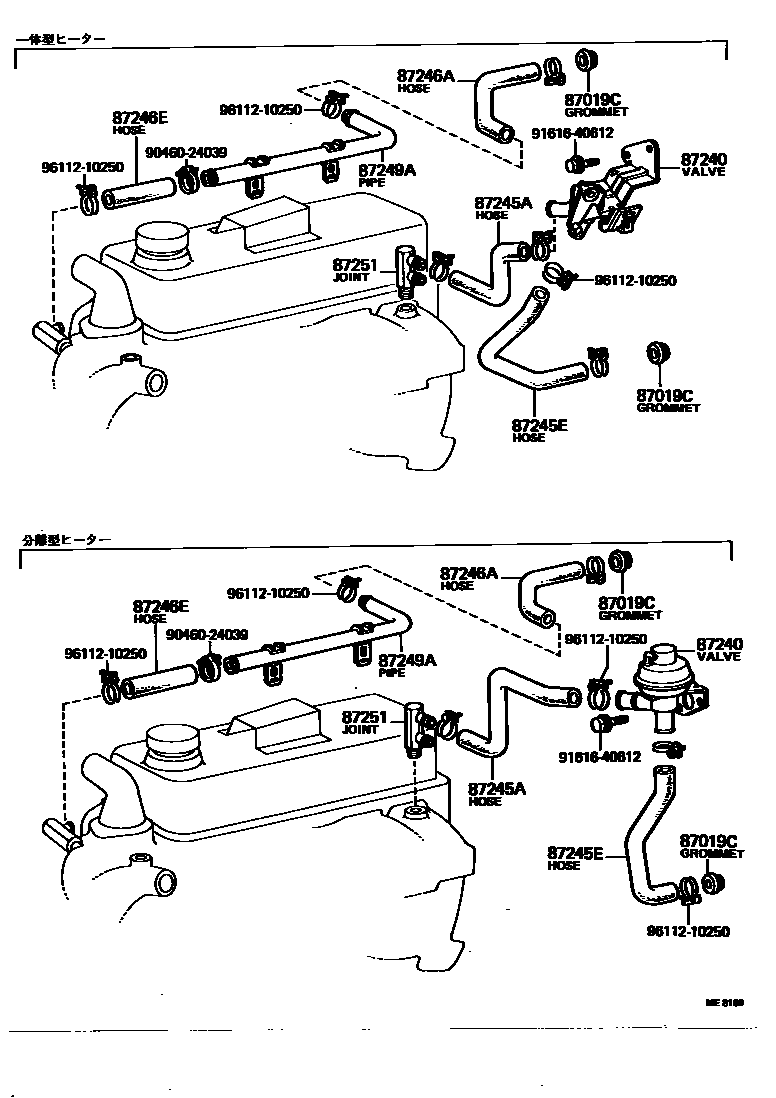

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1

87019CGROMMET, HEATER HOSE

main90480-31007×2iGS11#,LS11#,MS11#,RS110197909-198307

HEATER PIPE

87240VALVE ASSY, HEATER WATER

main87240-30271iLS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD; MS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)197909-198307

main87240-30310iMS110,RS110..(BTP,DLX,STD)..LPG197909-198307

main87240-30320iMS110,RS110..LPG197909-198307

W/*IT

main87240-30330iLS110..BTP,STD,TAX; MS110..(BTP,STD)..CBR197909-198307

W/*IT

main87240-30340iMS110,112..ROY,SAL,SDX,SPE197909-198108

W/*AAC OR *MPAAC

main87240-30350iMS112..TWC198108-198307

main87240-30360iGS11#198108-198307

main87240-30370iGS110198108-198307

W/*AAC

87245AHOSE, HEATER WATER, INLET A

main87245-30660iMS11#..(BTP,CTE,DLX,SAL,SDX,SPE,STD)..(CBR,EFI,TBO)197909-198307

main87245-30670iMS110..LPG197912-198307

main87245-30680iRS110..BTP,DLX,STD197909-198307

main87245-30700iLS11#..BTP,CTE,DLX,SAL,SDX,SPE,STD197909-198208

main87245-30701iLS11#..CTE,DLX,SAL,SDX,SPE,STD198208-198307

main87245-30730iRS110197909-198307

W/*IT

main87245-30740iLS110..BTP,STD,TAX197909-198307

W/*IT

main87245-30800iMS110..CBR;MS110..BTP..LPG197909-198307

W/*IT

main87245-30810iMS110..LPG197912-198307

W/*IT

main87245-30820iMS112..ROY..EFI197909-198307

main87245-30830iMS112..TWC198108-198307

main87245-30840iGS11#198108-198307

87245EHOSE, HEATER WATER, INLET E

main87245-30650iGS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE197909-198307

W/*SEP

main87245-30710iRS110;MS110..DLX..LPG;LS110,MS110..BTP,STD,TAX197909-198307

W/*IT

main87245-30720iMS110,RS110..(BTP,DLX,STD)..LPG197909-198307

W/*SEP

main87245-30870iMS112..TWC198108-198307

87246AHOSE, HEATER WATER, OUTLET A

main87245-30470iRS110197909-198307

main87245-30520iGS11#,MS11#197909-198307

main87245-30620iLS11#197909-198307

87246EHOSE, HEATER WATER, OUTLET E

main87245-30630iLS11#197909-198307

main99552-30200iRS110197909-198108

*H,L=130

87249APIPE, HEATER WATER OUTLET, A

main87156-30031iRS110197909-198108

main87156-30032iRS110198108-198307

main87208-22010iGS110198108-198208

main87208-22011iGS11#198208-198307

main87208-30010iLS11#197909-198307

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-30230iLS11#197909-198108

main87252-30230iRS110197909-198307

main90404-54023iLS11#198108-198307

9046024039

main90460-24039

9161640612

main91616-40612

9611210250

main96112-10250
