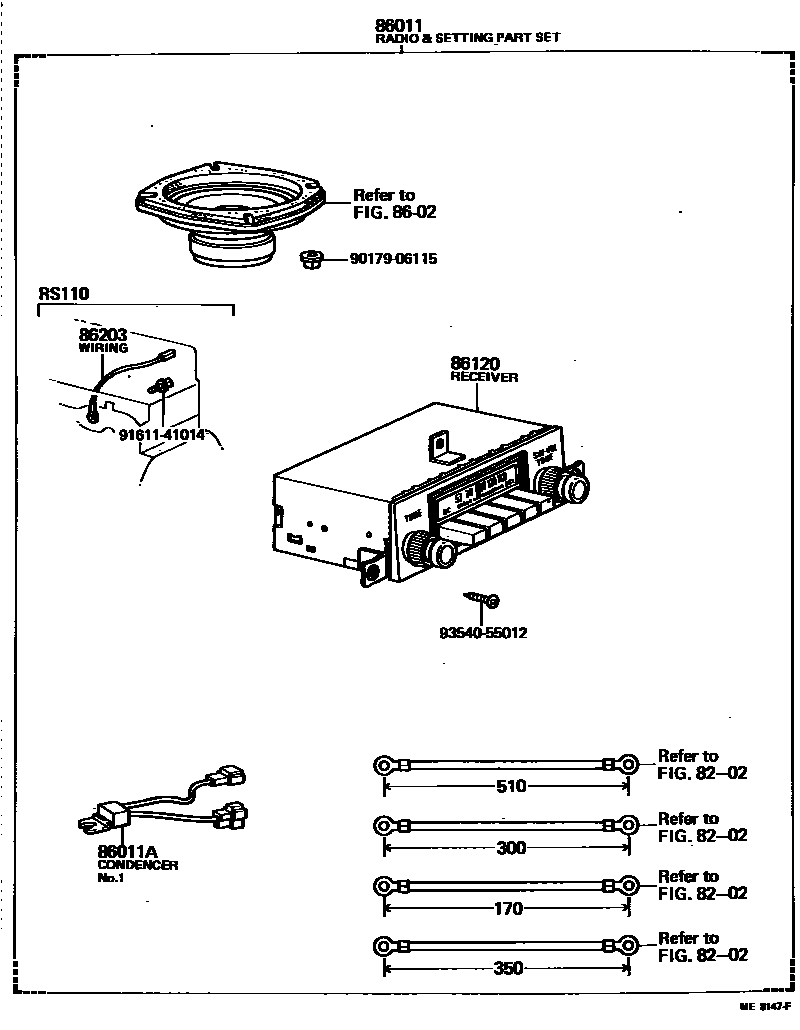

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1

8202WIRING & CLAMP

→ Go to FIG 82-02

86011RADIO & SETTING PARTS SET

main86011-39065iLS110,RS110..TAX197909-198307

main86011-39075iGS117,LS110,MS110,117,RS110..STD197909-198212

86011ACONDENSER, RADIO SETTING

main90980-04023iGS11#,LS110,117,MS110,117..(V,WG)..(DLX,SDX); GS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)197909-198307

N0.2; NO.2

main90980-04036iGS11#,MS11#,RS110197909-198307

N0.1

8602SPEAKER

→ Go to FIG 86-02

86120RECEIVER ASSY, RADIO

main86011-39115iLS110,MS110,112..SAL,SDX,SPE; MS112..ROY..4D197909-198108

AUTO SEARCH

main86011-39116iGS110,LS110,MS110..SAL,SDX,SPE; MS112..4D198108-198307

AUTO SEARCH

main86011-39125iLS110,MS110,112..ROY,SAL,SDX,SPE197909-198010

ELECTRONIC SEARCH

main86011-39135iLS110,MS110,112..ROY,SAL,SDX,SPE198010-198108

ELECTRONIC SEARCH

main86011-39136iGS110,LS110,111,MS110,112..ROY,SAL198108-198307

ELECTRONIC SEARCH

main86120-30410iLS110,MS110,RS110..BTP,STD;GS117,LS117,MS110,117..(HT,V)..(DLX,STD)197909-198307

AM 6-BUTTON

main86120-30420iGS117,MS117..SDX; MS110..4F..CTE;MS110..(SED,WG)..4F..DLX;GS110,LS110,MS110,RS110..(3FC,3HC,4FC,4H,4HC,5F)..(CTE,DLX)197909-198307

AM/FM

main86120-30430iLS110,MS110..SDX,SPE197909-198108

AM/FM MULTI

main86120-30431iGS110,LS110,111,MS110..SDX,SPE198108-198307

AM/FM MULTI

main86120-30520iLS110,RS110..TAX197909-198307

AM 5-BUTTON

86203WIRE, RADIO

main86203-30231iGS110,LS110,MS110,112..(3HC,4H,4HC)..(ROY,SAL,SDX)197909-198307

L=2200

main86203-30251iGS110,LS110,111,MS110,112..(3FC,4F,4FC,5F)..(ROY,SAL,SDX,SPE)197909-198307

L=1200

main86203-30261iLS110,MS110,112..(3FC,4F,4FC,5F)..(ROY,SAL,SDX,SPE)197909-198008

L=700

main86203-30280iGS110,LS110,MS110,112..SED..(3HC,4H,4HC)..(ROY,SAL,SDX)197909-198307

L=950

main86203-30290iGS110,MS112..SED..4HC..(ROY,SAL)198108-198307

L=1000,W/FR LOUNGE SEAT

main86203-30310iRS110197909-198307

L=400

9017906115

main90179-06115

9161141014

main91611-41014

9354055012

main93540-55012

9 parts on this diagram · 5 diagrams in section
