OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-30050iGS110,LS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE)197909-198307

84722SWITCH, TRANSMISSION CONTROL

main84722-30040iGS110,LS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE)197909-198307

85420BSOLENOID ASSY, TRANSMISSION

main85420-14040iLS11#,MS110,112..4FC,4HC198008-198108

main85420-22040iGS110,LS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE)198108-198307

main85420-30022iLS11#,MS110,112..ATM..(DSL,EFI)197909-198008

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-11001iLS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE)197909-198307

OD=11

main90301-23001iLS11#,MS110,112..ATM..(DSL,EFI,TBO,TDE)197909-198307

OD=23.5

89427ASWITCH, TEMPERATURE

main89428-30050iGS110,MS110..ATM..(EFI,TBO)197909-198307

89531RELAY, TRANSMISSION CONTROL

main89531-30030iGS110,MS110..ATM..(EFI,TBO)197909-198307

8542614010CLAMP, OVER DRIVE SOLENOID

main85426-14010

8542622010CLAMP, OVER DRIVE SOLENOID

main85426-22010

8542622020CLAMP, OVER DRIVE SOLENOID

main85426-22020

8542622030CLAMP, OVER DRIVE SOLENOID

main85426-22030

8542630020CLAMP, OVER DRIVE SOLENOID

main85426-30020

8542630050CLAMP, OVER DRIVE SOLENOID

main85426-30050

8542630070CLAMP, OVER DRIVE SOLENOID

main85426-30070

9161140610

main91611-40610

9161140816

main91611-40816

9165640620

main91656-40620

9321914008

main93219-14008

9451100400

main94511-00400

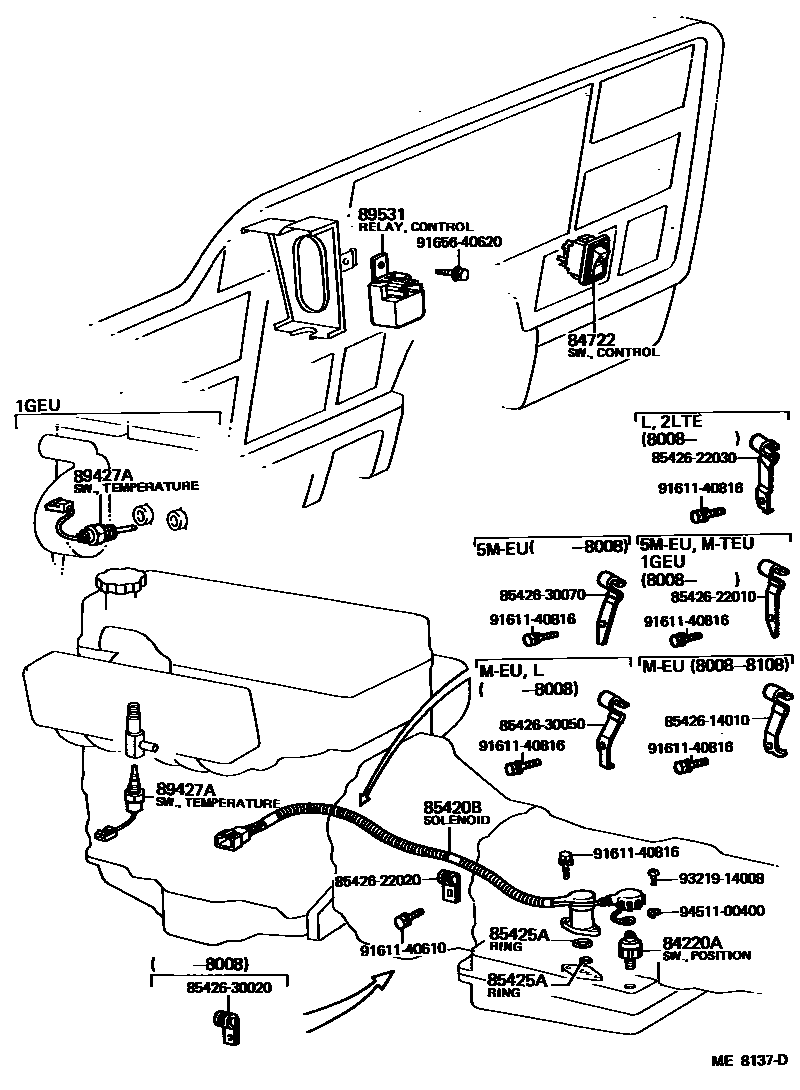

18 parts on this diagram · 1 diagram in section
