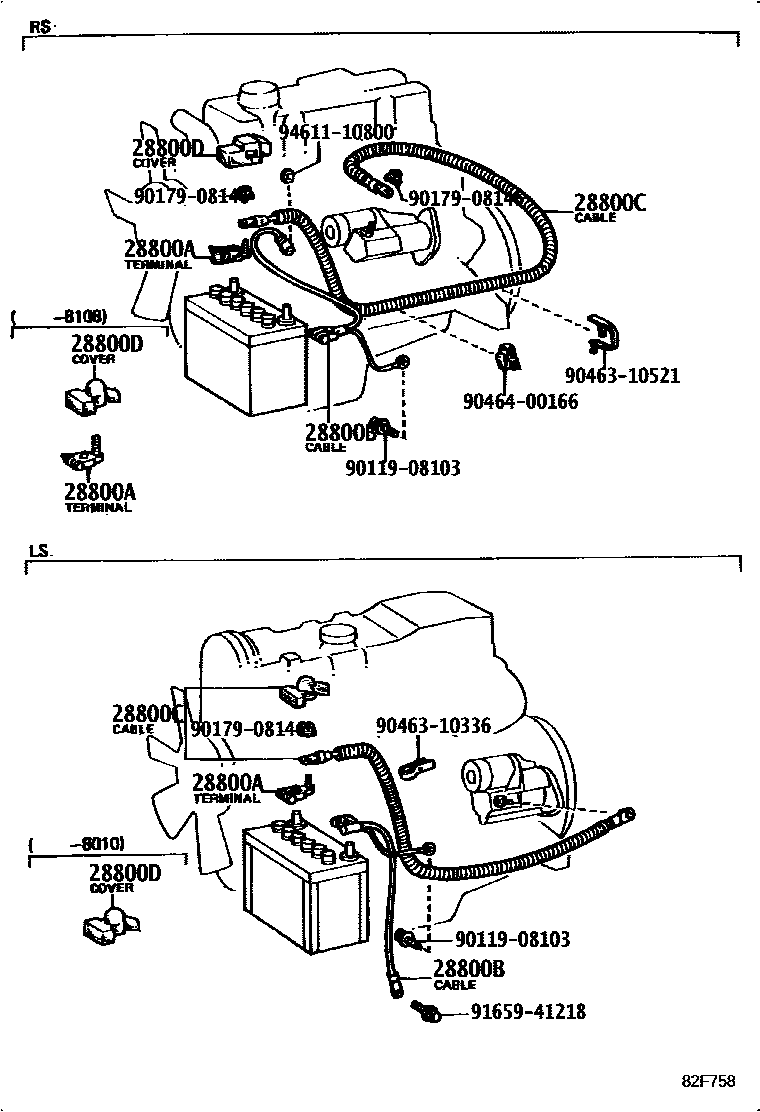

BATTERY & BATTERY CABLE

0001 1 0002 1

28800ATERMINAL, BATTERY POSITIVE

main90982-05004iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198108

ID=12.7

main90982-05005iL,MEU,MJ,5MEU,5RU,MTEU,MU..LS11#,MS11#,RS110197909-198108

ID=17.5

main90982-05019i1GE#,MJ,5MEU,MTEU,MU..GS11#,MS11#198108-198307

ID=12.7

main90982-05023i1GE#,MJ,5M#,5RU,MTEU,MU..GS11#,MS11#,RS110198108-198307

ID=17.5

28800BCABLE, BATTERY TO GROUND

main90982-02151iL,2LT#..LS11#197909-198307

main90982-02180i5RU..RS110197909-198307

main90982-02190i5MEU..MS112..SED..4HC;MJ,5MEU,MTEU,MU..MS11#..(4F,4FC,4H,5F)..(CBR,EFI,TBO)198108-198307

BATTERY=NS#

main90982-02191iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198307

BATTERY=N#,NX# OR 55D23L

main90982-02228i1GE#..GS11#198108-198307

BATTERY=NS#

main90982-02229i1GE#..GS11#198108-198307

BATTERY=N#,NX# OR 55D23L

main90982-02231i5MGEU..MS112198108-198307

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main90982-01313iMU..MS110..LPG197912-198108

L=1030

main90982-01315i5RU..RS110197909-198108

L=1640

main90982-01317iL..LS11#197909-198108

L=1030

main90982-01318iMEU,MJ,5MEU,MTEU,MU..MS11#..CBR,EFI,TBO197909-198108

L=1030

main90982-01347i5RU..RS110197909-198108

L=1680,COLD SPEC

main90982-01349i5MEU..MS112197909-198108

L=1110,COLD SPEC

main90982-01350i5M#,MU..MS110,112..EFI,LPG,TWC; MJ,MTEU,MU..MS110,117..CBR,TBO198108-198307

COLD SPEC

main90982-01397iL..LS110,117..MTM198108-198307

main90982-01400i5RU..RS110198108-198307

main90982-01401iMJ,MTEU,MU..MS110,117..CBR,TBO198108-198307

main90982-01417i1GE#..GS11#198108-198307

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i1GE#,MJ,5M#,5RU,MTEU,MU..GS11#,MS11#,RS110198108-198307

main82821-30080iMEU,MJ,5MEU,5RU,MTEU,MU..MS11#,RS110198010-198108

9011908103

main90119-08103

9017908146

main90179-08146

9046310336

main90463-10336

9046310521

main90463-10521

9046400166

main90464-00166

9165941218

main91659-41218

9461110800

main94611-10800

11 parts on this diagram · 2 diagrams in section
