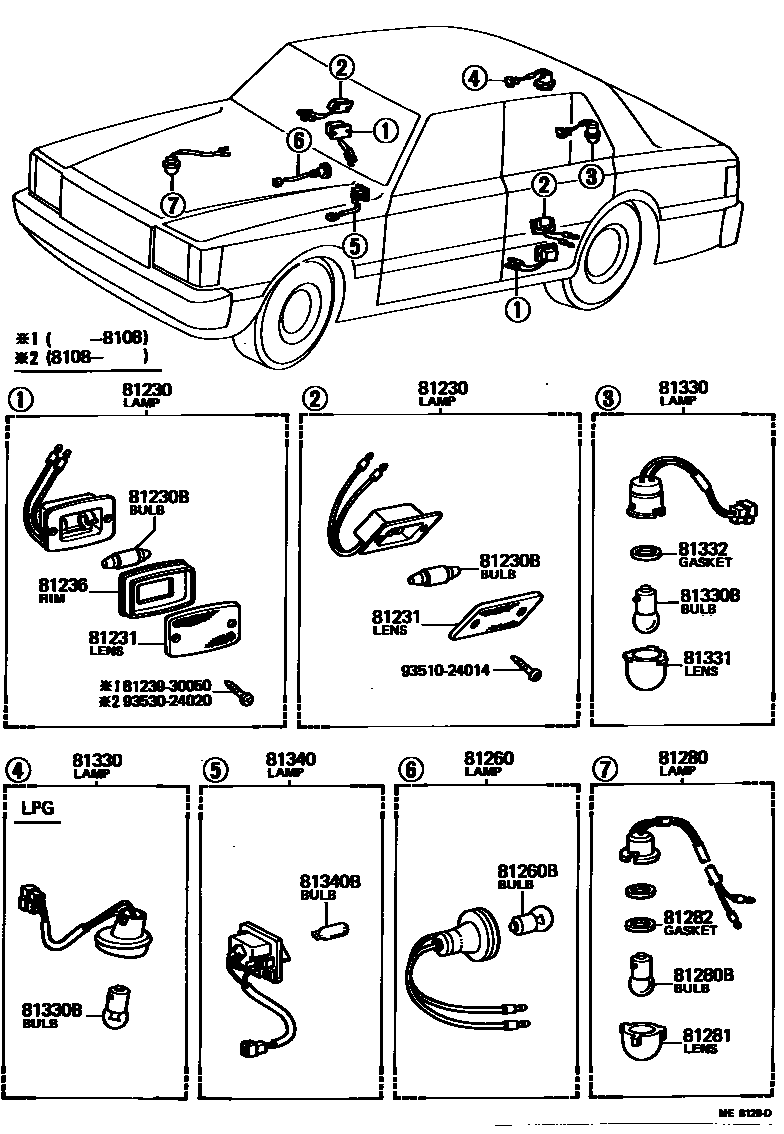

INTERIOR LAMP

0001 1 0002 1

81230LAMP ASSY, COURTESY

main81230-30050×2iMS117;MS110,112..2D;LS11#,MS110,RS110..BTP,CTE,DLX,STD,TAX197909-198108

main81230-30051×2iGS110,MS110,112..2D;GS110,LS110..CTE,DLX,STD,TAX;GS117,LS117,MS110,117,RS110..CBR,DSL,EFI,LPG; GS110..WG..SDX198108-198307

DOOR TORIM

main81230-30080×2iLS110,MS110,112..(ROY,SAL,SDX,SPE)..4D197909-198108

main81230-30081×2iGS110,LS110,111,MS110,112..(ROY,SAL,SDX,SPE)..4D198108-198307

ARM REST

81230BBULB(FOR COURTESY LAMP)

main99132-13050×4iGS11#,LS11#,MS11#,RS110197909-198307

81231LENS, COURTESY LAMP

main81231-30010iGS110,MS110,112..2D;GS117,LS117,MS117,RS110;GS110,LS110,MS110..BTP,CTE,DLX,STD,TAX197909-198307

DOOR TORIM

main81231-30080iGS110,LS110,111,MS110,112..(ROY,SAL,SDX,SPE)..4D197909-198307

ARM REST

81236RIM, COURTESY LAMP

main81236-30010iGS110..WG..SDX198108-198307

DOOR TORIM

81260LAMP ASSY, GLOVE BOX

main81260-22030iLS110,MS110,112,RS110..DLX,ROY,SAL,SDX,SPE197909-198108

81260BBULB(FOR GLOVE BOX)

main90981-11018iGS117,MS117..SDX197909-198307

81280LAMP ASSY, ENGINE ROOM

main81280-30031iGS110,LS110,111,MS110,112,RS110..DLX,ROY,SAL,SDX,SPE; GS117,MS117..SDX197909-198307

81280BBULB, ENGINE ROOM LAMP

main99132-13060iGS110,LS110,111,MS110,112,RS110..DLX,ROY,SAL,SDX,SPE; GS117,MS117..SDX197909-198307

81281LENS, ENGINE ROOM LAMP

main81281-30010iGS110,LS110,111,MS110,112,RS110..DLX,ROY,SAL,SDX,SPE; GS117,MS117..SDX197909-198307

81282PACKING, ENGINE ROOM LAMP LENS

main81282-30010iGS110,LS110,111,MS110,112,RS110..DLX,ROY,SAL,SDX,SPE; GS117,MS117..SDX197909-198307

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-30070iLS110,MS110,112..SED..(DLX,ROY,SAL,SDX)..(CBR,DSL,EFI,TBO); MS110,112..HT..(ROY,SAL,SPE)197909-198108

main81330-30080iMS110,RS110..LPG197909-198307

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-13060iLS110,MS110,112..SED..(DLX,ROY,SAL,SDX)..(CBR,DSL,EFI,TBO); MS110,112..HT..(ROY,SAL,SPE)197909-198108

81331LENS, LUGGAGE COMPARTMENT LAMP

main81281-30010iLS110,MS110,112..SED..(DLX,ROY,SAL,SDX)..(CBR,DSL,EFI,TBO); MS110,112..HT..(ROY,SAL,SPE)197909-198108

81332PACKING, LUGGAGE COMPARTMENT LAMP LENS

main81282-30010iLS110,MS110,112..SED..(DLX,ROY,SAL,SDX)..(CBR,DSL,EFI,TBO); MS110,112..HT..(ROY,SAL,SPE)197909-198108

81340LAMP ASSY, VANITY

main81340-30020iGS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE197909-198307

81340BBULB (FOR VANITY LAMP)

main99132-12050iGS110,LS110,111,MS110,112..ROY,SAL,SDX,SPE197909-198307

8123930050

main81239-30050

9351024014

main93510-24014

9353024020

main93530-24020

19 parts on this diagram · 2 diagrams in section
