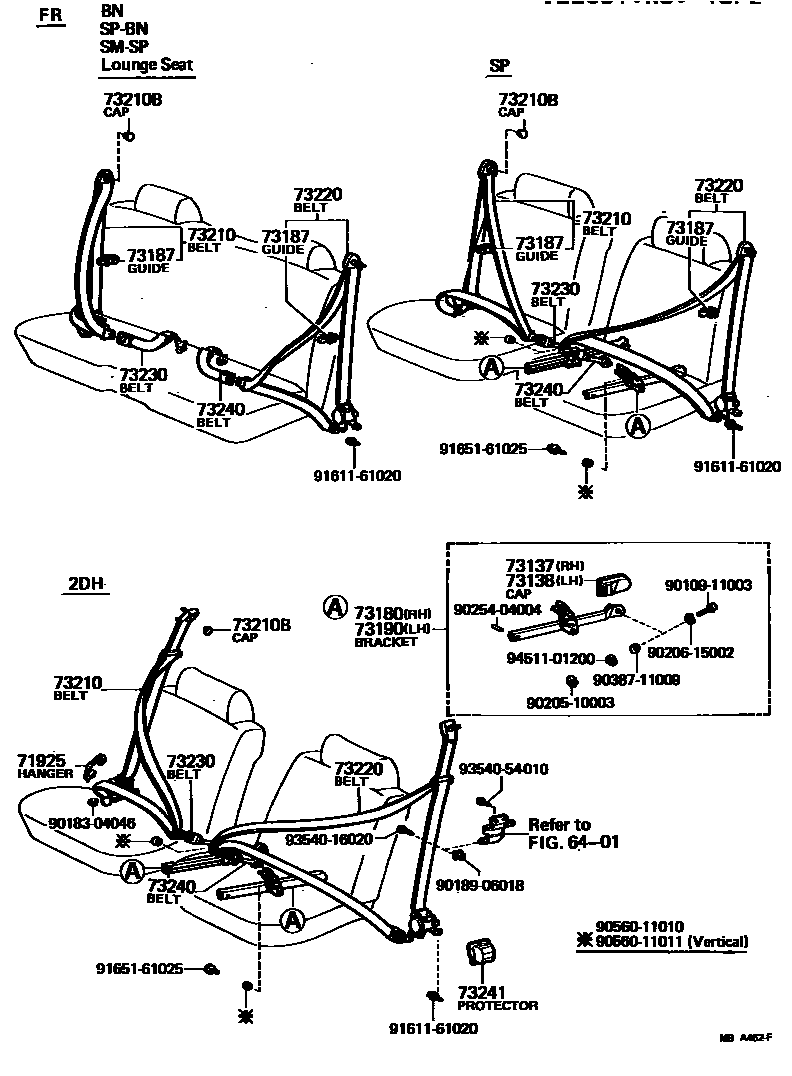

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1

6401INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

→ Go to FIG 64-01

71925HANGER, SEAT BELT

main73181-30010-02iMS110,112..2D197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73181-30010-03iGS110,MS110,112..2D198108-198307

GRAY,GRAY,TRIM1#

main73181-30010-04iMS110,112..2D197909-198108

BLUE,BLUE,TRIM8#

main73181-30010-05iMS110,112..2D197909-198108

GREIGE,BEIGE,TRIM4#

main73181-30010-15iGS110,MS110,112..2D198108-198307

BEIGE,BEIGE,TRIM4#

73137CAP, FRONT SEAT BELT INNER ANCHOR, RH

main73137-30010-02iLS11#,MS11#..3FC,4F,4FC,5F; LS110,MS110..WG; LS110,RS110..TAX; MS110,RS110..LPG; MS110..4H..STD197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73137-30010-03iMS110..STD;LS110,MS110,RS110..(3FC,3HC,4F,4FC,4H,5F)..(DSL,LPG,TBO);GS110,LS111,MS110,112..(4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TD,TDE,TWC)198108-198307

GRAY,GRAY,TRIM1#

main73137-30010-04iLS11#,MS11#..3FC,4F,4FC,5F; LS110,MS110..WG; LS110,RS110..TAX; MS110,RS110..LPG; MS110..4H..STD197909-198108

BLUE,BLUE,TRIM8#

main73137-30010-05iLS11#,MS11#..3FC,4F,4FC,5F; LS110,MS110..WG; LS110,RS110..TAX; MS110,RS110..LPG; MS110..4H..STD197909-198108

GREIGE,BEIGE,TRIM4#

main73137-30010-15iGS117,LS117,MS117..4F,4FC,5F; MS110..STD;LS110,MS110,RS110..(3FC,3HC,4F,4FC,4H,5F)..(DSL,LPG,TBO);GS110,LS111,MS110,112..(4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TD,TDE,TWC)198108-198307

BEIGE,BEIGE,TRIM4#

73138CAP, FRONT SEAT BELT INNER ANCHOR, LH

main73138-30010-02iLS11#,MS11#..3FC,4F,4FC,5F; LS110,MS110..WG; LS110,RS110..TAX; MS110,RS110..LPG; MS110..4H..STD197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73138-30010-03iMS110..STD;LS110,MS110,RS110..(3FC,3HC,4F,4FC,4H,5F)..(DSL,LPG,TBO);GS110,LS111,MS110,112..(4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TD,TDE,TWC)198108-198307

GRAY,GRAY,TRIM1#

main73138-30010-04iLS11#,MS11#..3FC,4F,4FC,5F; LS110,MS110..WG; LS110,RS110..TAX; MS110,RS110..LPG; MS110..4H..STD197909-198108

BLUE,BLUE,TRIM8#

main73138-30010-05iLS11#,MS11#..3FC,4F,4FC,5F; LS110,MS110..WG; LS110,RS110..TAX; MS110,RS110..LPG; MS110..4H..STD197909-198108

GREIGE,BEIGE,TRIM4#

main73138-30010-15iGS117,LS117,MS117..4F,4FC,5F; MS110..STD;LS110,MS110,RS110..(3FC,3HC,4F,4FC,4H,5F)..(DSL,LPG,TBO);GS110,LS111,MS110,112..(4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TD,TDE,TWC)198108-198307

BEIGE,BEIGE,TRIM3#; BEIGE,TRIM8#

73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH

main73180-30010-02iLS110..4H..STD197909-198010

DARK WINE,RED/MAROON,TRIM3#

main73180-30010-04iLS11#,MS11#..3FC,4F,4FC,5F; LS110,MS110..WG; LS110,RS110..TAX; MS110,RS110..LPG; MS110..4H..STD197909-198105

BLUE,BLUE,TRIM8#

main73180-30010-05iLS11#,MS11#..3FC,4F,4FC,5F; LS110,MS110..WG; LS110,RS110..TAX; MS110,RS110..LPG; MS110..4H..STD197909-198105

GREIGE,BEIGE,TRIM4#

main73180-30011-02iMS110..WG..4H;MS110..4H..STD;MS110,RS110..LPG;LS110..(4F,5F)..(BTP,STD);LS117,MS11#..3FC,4F,4FC,5F;LS110..(4FC,4H,5F)..(CTE,DLX,SDX,TAX)198105-198108

DARK WINE,RED/MAROON,TRIM3#

main73180-30011-03iMS110..STD;LS110,MS110,RS110..(3FC,3HC,4F,4FC,4H,5F)..(DSL,LPG,TBO);GS110,LS111,MS110,112..(4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TD,TDE,TWC)198108-198307

GRAY,GRAY,TRIM1#

main73180-30011-04iGS117,LS117,MS117..4F,4FC,5F; MS110..STD;LS110,MS110,RS110..(3FC,3HC,4F,4FC,4H,5F)..(DSL,LPG,TBO);GS110,LS111,MS110,112..(4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TD,TDE,TWC)198108-198307

BLUE,BLUE,TRIM8#

main73180-30011-05iMS110..WG..4H;MS110..4H..STD;MS110,RS110..LPG;LS110..(4F,5F)..(BTP,STD);LS117,MS11#..3FC,4F,4FC,5F;LS110..(4FC,4H,5F)..(CTE,DLX,SDX,TAX)198105-198108

GREIGE,BEIGE,TRIM4#

main73180-30011-15iGS117,LS117,MS117..4F,4FC,5F; MS110..STD;LS110,MS110,RS110..(3FC,3HC,4F,4FC,4H,5F)..(DSL,LPG,TBO);GS110,LS111,MS110,112..(4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TD,TDE,TWC)198108-198307

BEIGE,BEIGE,TRIM4#

73187GUIDE, FRONT SEAT SHOULDER BELT

main73187-30010×2iGS11#,LS11#,MS11#,RS110..4D197909-198307

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

main73190-30010-02iLS11#,MS11#..3FC,4F,4FC,5F; LS110,MS110..WG; LS110,RS110..TAX; MS110,RS110..LPG; MS110..4H..STD197909-198105

DARK WINE,RED/MAROON,TRIM3#

main73190-30010-04iLS11#,MS11#..3FC,4F,4FC,5F; LS110,MS110..WG; LS110,RS110..TAX; MS110,RS110..LPG; MS110..4H..STD197909-198105

BLUE,BLUE,TRIM8#

main73190-30010-05iLS110..4H..STD197909-198010

GREIGE,BEIGE,TRIM4#

main73190-30011-02iMS110..WG..4H;MS110..4H..STD;MS110,RS110..LPG;LS110..(4F,5F)..(BTP,STD);LS117,MS11#..3FC,4F,4FC,5F;LS110..(4FC,4H,5F)..(CTE,DLX,SDX,TAX)198105-198108

DARK WINE,RED/MAROON,TRIM3#

main73190-30011-03iMS110..STD;LS110,MS110,RS110..(3FC,3HC,4F,4FC,4H,5F)..(DSL,LPG,TBO);GS110,LS111,MS110,112..(4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TD,TDE,TWC)198108-198307

GRAY,GRAY,TRIM1#

main73190-30011-04iGS117,LS117,MS117..4F,4FC,5F; MS110..STD;LS110,MS110,RS110..(3FC,3HC,4F,4FC,4H,5F)..(DSL,LPG,TBO);GS110,LS111,MS110,112..(4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TD,TDE,TWC)198108-198307

BLUE,BLUE,TRIM8#

main73190-30011-05iMS110..WG..4H;MS110..4H..STD;MS110,RS110..LPG;LS110..(4F,5F)..(BTP,STD);LS117,MS11#..3FC,4F,4FC,5F;LS110..(4FC,4H,5F)..(CTE,DLX,SDX,TAX)198105-198108

GREIGE,BEIGE,TRIM4#

main73190-30011-15iGS117,LS117,MS117..4F,4FC,5F; MS110..STD;LS110,MS110,RS110..(3FC,3HC,4F,4FC,4H,5F)..(DSL,LPG,TBO);GS110,LS111,MS110,112..(4F,4FC,5F)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..(CBR,EFI,TD,TDE,TWC)198108-198307

BEIGE,BEIGE,TRIM4#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-30240-02iLS11#,MS11#,RS110..(BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX)..4D197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73210-30240-04iLS11#,MS11#,RS110..(BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX)..4D197909-198108

BLUE,BLUE,TRIM8#

main73210-30240-05iLS11#,MS11#,RS110..(BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX)..4D197909-198108

GREIGE,BEIGE,TRIM4#

main73210-30241-03iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD,TAX198108-198307

GRAY,GRAY,TRIM1#

main73210-30241-04iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD,TAX198108-198307

BLUE,BLUE,TRIM8#

main73210-30241-15iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD,TAX198108-198307

GREIGE,BEIGE,TRIM4#

main73210-30250-02iMS112..ROY..4D197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73210-30250-04iMS112..ROY..4D197909-198108

BLUE,BLUE,TRIM8#

main73210-30250-05iMS112..ROY..4D197909-198108

GREIGE,BEIGE,TRIM4#

main73210-30251-03iGS110,LS110,111,MS110,112..(ROY,SAL,SDX,SPE)..4D198108-198307

GRAY,GRAY,TRIM1#

main73210-30251-04iGS110,LS110,111,MS110,112..(ROY,SAL,SDX,SPE)..4D198108-198307

BLUE,BLUE,TRIM8#

main73210-30251-15iGS110,LS110,111,MS110,112..(ROY,SAL,SDX,SPE)..4D198108-198307

BEIGE,BEIGE,TRIM4#

main73210-30280-02iMS110,112..2D197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73210-30280-04iMS110,112..2D197909-198108

BLUE,BLUE,TRIM8#

main73210-30280-05iMS110,112..2D197909-198108

GREIGE,BEIGE,TRIM4#

main73210-30281-03iGS110,MS110,112..2D198108-198307

GRAY,GRAY,TRIM1#

main73210-30281-04iGS110,MS110,112..2D198108-198307

BLUE,BLUE,TRIM8#

main73210-30281-15iGS110,MS110,112..2D198108-198307

BEIGE,BEIGE,TRIM4#

73210BCAP (FOR FRONT SEAT OUTER BELT)

main73178-12010-02×2iLS11#,MS11#,RS110197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73178-12010-04×2iGS11#,LS11#,MS11#,RS110198108-198307

BLUE,BLUE,TRIM8#

main73178-12010-13×2iGS11#,LS11#,MS11#,RS110198108-198307

GRAY,GRAY,TRIM1#

main73178-12010-35×2iLS11#,MS11#,RS110197909-198108

GREIGE,BEIGE,TRIM4#

main73178-12010-45×2iGS11#,LS11#,MS11#,RS110198108-198307

BEIGE,BEIGE,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-30040-02iLS11#,MS11#,RS110..(BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX)..4D197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73220-30040-04iLS11#,MS11#,RS110..(BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX)..4D197909-198108

BLUE,BLUE,TRIM8#

main73220-30040-05iLS11#,MS11#,RS110..(BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX)..4D197909-198108

GREIGE,BEIGE,TRIM4#

main73220-30041-03iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD,TAX198108-198307

GRAY,GRAY,TRIM1#

main73220-30041-04iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD,TAX198108-198307

BLUE,BLUE,TRIM8#

main73220-30041-15iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,CTE,DLX,STD,TAX198108-198307

BEIGE,BEIGE,TRIM4#

main73220-30050-02iMS112..ROY..4D197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73220-30050-04iMS112..ROY..4D197909-198108

BLUE,BLUE,TRIM8#

main73220-30050-05iMS112..ROY..4D197909-198108

GREIGE,BEIGE,TRIM4#

main73220-30051-03iGS110,LS110,111,MS110..(SAL,SDX,SPE)..4D198108-198307

GRAY,GRAY,TRIM1#

main73220-30051-04iGS110,LS110,111,MS110..(SAL,SDX,SPE)..4D198108-198307

BLUE,BLUE,TRIM8#

main73220-30051-15iGS110,LS110,111,MS110..(SAL,SDX,SPE)..4D198108-198307

BEIGE,BEIGE,TRIM4#

main73220-30081-02iMS110,112..2D197909-198108

DARK WINE,RED/MAROON,TRIM3#

main73220-30081-04iMS110,112..2D197909-198108

BLUE,BLUE,TRIM8#

main73220-30081-05iMS110,112..2D197909-198108

GREIGE,BEIGE,TRIM4#

main73220-30082-03iGS110,MS110..2D198108-198307

GRAY,GRAY,TRIM1#

main73220-30082-04iGS110,MS110..2D198108-198307

BLUE,BLUE,TRIM8#

main73220-30082-15iGS110,MS110..2D198108-198307

BEIGE,BEIGE,TRIM4#

main73220-30091-03iMS112..4D198108-198307

GRAY,GRAY,TRIM1#

main73220-30091-04iMS112..4D198108-198307

BLUE,BLUE,TRIM8#

main73220-30091-15iMS112..4D198108-198307

BEIGE,BEIGE,TRIM4#

main73220-30110-03iMS112..2D198108-198307

GRAY,GRAY,TRIM1#

main73220-30110-04iMS112..2D198108-198307

BLUE,BLUE,TRIM8#

main73220-30110-15iMS112..2D198108-198307

BEIGE,BEIGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-30150-02iLS110,MS110,112..(BTP,CTE,DLX,SAL,SDX,SPE)..4D197909-198003

DARK WINE,RED/MAROON,TRIM3#

main73230-30150-04iLS11#,MS110,117..(V,WG)..(3FC,4F,4FC,5F); LS110,MS110,112..(BTP,CTE,DLX,SAL,SDX,SPE)..4D; MS110,RS110..LPG;LS110,MS110..STD,TAX197909-198003

BLUE,BLUE,TRIM8#; W/SP,BLUE,BLUE,TRIM8#

main73230-30150-05iLS11#,MS110,117..(V,WG)..(3FC,4F,4FC,5F); LS110,MS110,112..(BTP,CTE,DLX,SAL,SDX,SPE)..4D; MS110,RS110..LPG;LS110,MS110..STD,TAX197909-198003

GREIGE,BEIGE,TRIM4#; W/SP,GREIGE,BEIGE,TRIM4#

main73230-30151-02iLS110,MS110,112..(BTP,CTE,DLX,SAL,SDX,SPE)..4D198003-198108

DARK WINE,RED/MAROON,TRIM3#

main73230-30151-03iGS110,LS110,MS110..(4F,4FC,5F)..(CTE,DLX); RS110;MS110..STD;LS110,MS110..(3FC,3HC,4F,4H)..(DSL,LPG)198108-198307

W/SP,GRAY,GRAY,TRIM1#

main73230-30151-04iLS11#,MS110,117..(V,WG)..(3FC,4F,4FC,5F); LS110,MS110,112..(BTP,CTE,DLX,SAL,SDX,SPE)..4D; MS110,RS110..LPG;LS110,MS110..STD,TAX198003-198108

BLUE,BLUE,TRIM8#; W/SP,BLUE,BLUE,TRIM8#

main73230-30151-05iLS11#,MS110,117..(V,WG)..(3FC,4F,4FC,5F); LS110,MS110,112..(BTP,CTE,DLX,SAL,SDX,SPE)..4D; MS110,RS110..LPG;LS110,MS110..STD,TAX198003-198108

GREIGE,BEIGE,TRIM4#; W/SP,GREIGE,BEIGE,TRIM4#

main73230-30151-15iGS110,LS110,MS110..(4F,4FC,5F)..(CTE,DLX); GS117,LS117,MS117..4F,4FC,5F; RS110;MS110..STD;LS110,MS110..(3FC,3HC,4F,4H)..(DSL,LPG)198108-198307

W/SP,BEIGE,BEIGE,TRIM4#

main73230-30160-02iMS110,112..2D; MS112..(4FC,5F)..ROY..4D197909-198003

DARK WINE,RED/MAROON,TRIM3#

main73230-30160-04iMS110,112..2D; MS112..(4FC,5F)..ROY..4D197909-198003

BLUE,BLUE,TRIM8#

main73230-30160-05iMS110,112..2D; MS112..(4FC,5F)..ROY..4D197909-198003

GREIGE,BEIGE,TRIM4#

main73230-30161-02iMS110,112..2D; MS112..(4FC,5F)..ROY..4D198003-198108

DARK WINE,RED/MAROON,TRIM3#

main73230-30161-03iGS110,LS110,111,MS110,112..(4FC,5F)..(ROY,SAL,SDX,SPE)198108-198307

W/SP,GRAY,GRAY,TRIM1#

main73230-30161-04iMS110,112..2D; MS112..(4FC,5F)..ROY..4D198003-198108

BLUE,BLUE,TRIM8#

main73230-30161-05iMS110,112..2D; MS112..(4FC,5F)..ROY..4D198003-198108

GREIGE,BEIGE,TRIM4#

main73230-30161-15iGS110,LS110,111,MS110,112..(4FC,5F)..(ROY,SAL,SDX,SPE)198108-198307

W/SP,BEIGE,BEIGE,TRIM4#

main73230-30180-02iLS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)197909-198003

DARK WINE,TRIM3#

main73230-30180-04iLS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)197909-198003

BLUE,TRIM8#

main73230-30180-05iLS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)197909-198003

GREIGE,TRIM4#

main73230-30181-02iLS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)198003-198108

DARK WINE,TRIM3#

main73230-30181-04iLS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)198003-198108

BLUE,TRIM8#

main73230-30181-05iLS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)198003-198108

GREIGE,TRIM4#

main73230-30182-03iGS11#,LS110,117,MS110,117,RS110..(3HC,4H,4HC)..(BTP,DLX,STD,TAX)198108-198307

W/BN,SP-BN,GRAY,GRAY,TRIM1#

main73230-30182-04iGS11#,LS110,117,MS110,117,RS110..(3HC,4H,4HC)..(BTP,DLX,STD,TAX)198108-198307

W/BN,SP-BN,BLUE,BLUE,TRIM8#

main73230-30182-15iGS11#,LS110,117,MS110,117,RS110..(3HC,4H,4HC)..(BTP,DLX,STD,TAX)198108-198307

W/BN,SP-BN,BEIGE,BEIGE,TRIM4#

main73230-30190-02iMS112..SED..4HC..ROY197909-198003

DARK WINE,TRIM3#

main73230-30190-04iMS112..SED..4HC..ROY197909-198003

BLUE,TRIM8#

main73230-30190-05iMS112..SED..4HC..ROY197909-198003

GREIGE,TRIM4#

main73230-30191-02iMS112..SED..4HC..ROY198003-198108

DARK WINE,TRIM3#

main73230-30191-04iMS112..SED..4HC..ROY198003-198108

BLUE,TRIM8#

main73230-30191-05iMS112..SED..4HC..ROY198003-198108

GREIGE,TRIM4#

main73230-30192-03iGS110,LS110,MS112..SED..(4H,4HC)..(ROY,SAL,SDX)198108-198307

W/SM-SP,GRAY,GRAY,TRIM1#

main73230-30192-04iGS110,LS110,MS112..SED..(4H,4HC)..(ROY,SAL,SDX)198108-198307

W/SM-SP,BLUE,BLUE,TRIM8#

main73230-30192-15iGS110,LS110,MS112..SED..(4H,4HC)..(ROY,SAL,SDX)198108-198307

W/SM-SP,BEIGE,BEIGE,TRIM4#

main73230-30210-02iMS110,112..(4H,4HC)..SAL197909-198003

W/LOUNGE SEAT,DARK WINE,RED/MAROON,TRIM3#

main73230-30210-04iMS110,112..(4H,4HC)..SAL197909-198003

W/LOUNGE SEAT,BLUE,BLUE,TRIM8#

main73230-30210-05iMS110,112..(4H,4HC)..SAL197909-198003

W/LOUNGE SEAT,GREIGE,BEIGE,TRIM4#

main73230-30211-02iMS110,112..(4H,4HC)..SAL198003-198108

W/LOUNGE SEAT,DARK WINE,RED/MAROON,TRIM3#

main73230-30211-04iMS110,112..(4H,4HC)..SAL198003-198108

W/LOUNGE SEAT,BLUE,BLUE,TRIM8#

main73230-30211-05iMS110,112..(4H,4HC)..SAL198003-198108

W/LOUNGE SEAT,GREIGE,BEIGE,TRIM4#

main73230-30220-02iMS112..4HC..ROY197909-198003

DARK WINE,RED/MAROON,TRIM3#

main73230-30220-04iMS112..4HC..ROY197909-198003

BLUE,BLUE,TRIM8#

main73230-30220-05iMS112..4HC..ROY197909-198003

GREIGE,BEIGE,TRIM4#

main73230-30221-02iMS112..4HC..ROY198003-198108

DARK WINE,RED/MAROON,TRIM3#

main73230-30221-04iMS112..4HC..ROY198003-198108

BLUE,BLUE,TRIM8#

main73230-30221-05iMS112..4HC..ROY198003-198108

GREIGE,BEIGE,TRIM4#

main73230-30222-03iGS110,MS112..4HC..(ROY,SAL)198108-198307

W/LOUNGE SEAT,GRAY,GRAY,TRIM1#

main73230-30222-04iGS110,MS112..4HC..(ROY,SAL)198108-198307

W/LOUNGE SEAT,BLUE,BLUE,TRIM8#

main73230-30222-15iGS110,MS112..4HC..(ROY,SAL)198108-198307

W/LOUNGE SEAT,BEIGE,BEIGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-30150-02iLS110,MS110,112..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,SAL,SDX,SPE)..4D197909-198003

DARK WINE,RED/MAROON,TRIM3#

main73230-30150-04iLS11#,MS110,117..(V,WG)..(3FC,4F,4FC,5F); LS110,MS110,112..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,SAL,SDX,SPE)..4D; MS110,RS110..LPG;LS110,MS110..STD,TAX197909-198003

BLUE,BLUE,TRIM4#; BLUE,BLUE,TRIM8#; W/SP,BLUE,BLUE,TRIM4#

main73230-30150-05iLS11#,MS110,117..(V,WG)..(3FC,4F,4FC,5F); LS110,MS110,112..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,SAL,SDX,SPE)..4D; MS110,RS110..LPG;LS110,MS110..STD,TAX197909-198003

GREIGE,BEIGE,TRIM4#; W/SP,GREIGE,BEIGE,TRIM4#

main73230-30151-02iLS110,MS110,112..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,SAL,SDX,SPE)..4D198003-198108

DARK WINE,RED/MAROON,TRIM3#

main73230-30151-03iGS110,LS110,MS110..(4F,4FC,5F)..(CTE,DLX); RS110;MS110..STD;LS110,MS110..(3FC,3HC,4F,4H)..(DSL,LPG)198108-198307

W/SP,GRAY,GRAY,TRIM1#

main73230-30151-04iGS110,LS110,MS110..(4F,4FC,5F)..(CTE,DLX); GS117,LS117,MS117..4F,4FC,5F198108-198307

BLUE,BLUE,TRIM8#; W/SP,BLUE,BLUE,TRIM8#

main73230-30151-05iLS11#,MS110,117..(V,WG)..(3FC,4F,4FC,5F); LS110,MS110,112..(3FC,4F,4FC,5F)..(BTP,CTE,DLX,SAL,SDX,SPE)..4D; MS110,RS110..LPG;LS110,MS110..STD,TAX198003-198108

GREIGE,BEIGE,TRIM4#; W/SP,GREIGE,BEIGE,TRIM4#

main73230-30151-15iGS110,LS110,MS110..(4F,4FC,5F)..(CTE,DLX); GS117,LS117,MS117..4F,4FC,5F; RS110;MS110..STD;LS110,MS110..(3FC,3HC,4F,4H)..(DSL,LPG)198108-198307

BEIGE,BEIGE,TRIM4#; W/SP,BEIGE,BEIGE,TRIM4#

main73230-30161-03iMS112..4FC198108-198307

W/SP,GRAY,GRAY,TRIM1#

main73230-30161-04iMS112..4FC198108-198307

W/SP,BLUE,BLUE,TRIM8#

main73230-30161-15iMS112..4FC198108-198307

W/SP,BEIGE,BEIGE,TRIM4#

main73230-30180-02iLS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)197909-198003

DARK WINE,RED/MAROON,TRIM3#

main73230-30180-04iLS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)197909-198003

BLUE,BLUE,TRIM8#

main73230-30180-05iLS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)197909-198003

GREIGE,BEIGE,TRIM4#

main73230-30181-02iLS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)198003-198108

DARK WINE,RED/MAROON,TRIM3#

main73230-30181-04iLS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)198003-198108

BLUE,BLUE,TRIM8#

main73230-30181-05iLS11#,MS11#,RS110..(3H,3HC,4H,4HC)..(BTP,DLX,SAL,SDX,STD,TAX)198003-198108

GREIGE,BEIGE,TRIM4#

main73230-30182-03iGS11#,LS110,117,MS110,117,RS110..(3HC,4H,4HC)..(BTP,DLX,STD,TAX)198108-198307

W/BN,SP-BN,GRAY,GRAY,TRIM1#

main73230-30182-04iGS11#,LS110,117,MS110,117,RS110..(3HC,4H,4HC)..(BTP,DLX,STD,TAX)198108-198307

W/BN,SP-BN,BLUE,BLUE,TRIM8#

main73230-30182-15iGS11#,LS110,117,MS110,117,RS110..(3HC,4H,4HC)..(BTP,DLX,STD,TAX)198108-198307

W/BN,SP-BN,BEIGE,BEIGE,TRIM4#

main73230-30192-03iMS112..SED..4HC198108-198307

W/SM-SP,GRAY,GRAY,TRIM1#

main73230-30192-04iMS112..SED..4HC198108-198307

W/SM-SP,BLUE,BLUE,TRIM8#

main73230-30192-15iMS112..SED..4HC198108-198307

W/SM-SP,BEIGE,BEIGE,TRIM4#

main73230-30210-02iMS110,112..(4H,4HC)..SAL197909-198003

W/LOUNGE SEAT,DARK WINE,RED/MAROON,TRIM3#

main73230-30210-04iMS110,112..(4H,4HC)..SAL197909-198003

W/LOUNGE SEAT,BLUE,BLUE,TRIM8#

main73230-30210-05iMS110,112..(4H,4HC)..SAL197909-198003

W/LOUNGE SEAT,GREIGE,BEIGE,TRIM4#

main73230-30211-02iMS110,112..(4H,4HC)..SAL198003-198108

W/LOUNGE SEAT,DARK WINE,RED/MAROON,TRIM3#

main73230-30211-04iMS110,112..(4H,4HC)..SAL198003-198108

W/LOUNGE SEAT,BLUE,BLUE,TRIM8#

main73230-30211-05iMS110,112..(4H,4HC)..SAL198003-198108

W/LOUNGE SEAT,GREIGE,BEIGE,TRIM4#

main73230-30222-03iMS112..4HC198108-198307

W/LOUNGE SEAT,GRAY,GRAY,TRIM1#

main73230-30222-04iMS112..4HC198108-198307

W/LOUNGE SEAT,BLUE,BLUE,TRIM8#

main73230-30222-15iMS112..4HC198108-198307

W/LOUNGE SEAT,BEIGE,BEIGE,TRIM4#

main73240-30020-02iMS112..SED..4HC..ROY197909-198003

DARK WINE,TRIM3#

main73240-30020-04iMS112..SED..4HC..ROY197909-198003

BLUE,TRIM8#

main73240-30020-05iMS112..SED..4HC..ROY197909-198003

GREIGE,TRIM4#

main73240-30021-02iMS112..SED..4HC..ROY198003-198108

DARK WINE,TRIM3#

main73240-30021-04iMS112..SED..4HC..ROY198003-198108

BLUE,TRIM8#

main73240-30021-05iMS112..SED..4HC..ROY198003-198108

GREIGE,TRIM4#

main73240-30022-03iGS110,LS110..SED..(4H,4HC)..(SAL,SDX)198108-198307

W/SM-SP,GRAY,GRAY,TRIM1#

main73240-30022-04iGS110,LS110..SED..(4H,4HC)..(SAL,SDX)198108-198307

W/SM-SP,BLUE,BLUE,TRIM8#

main73240-30022-15iGS110,LS110..SED..(4H,4HC)..(SAL,SDX)198108-198307

W/SM-SP,BEIGE,BEIGE,TRIM4#

main73240-30040-02iMS110,112..2D; MS112..(4FC,5F)..ROY..4D197909-198003

DARK WINE,RED/MAROON,TRIM3#

main73240-30040-04iMS110,112..2D; MS112..(4FC,5F)..ROY..4D197909-198003

BLUE,BLUE,TRIM8#

main73240-30040-05iMS110,112..2D; MS112..(4FC,5F)..ROY..4D197909-198003

GREIGE,BEIGE,TRIM4#

main73240-30041-02iMS110,112..2D; MS112..(4FC,5F)..ROY..4D198003-198108

DARK WINE,RED/MAROON,TRIM3#

main73240-30041-03iGS110,LS110,111,MS110..(4FC,5F)..(SAL,SDX,SPE)198108-198307

W/SP,GRAY,GRAY,TRIM1#

main73240-30041-04iMS110,112..2D; MS112..(4FC,5F)..ROY..4D198003-198108

BLUE,BLUE,TRIM8#

main73240-30041-05iMS110,112..2D; MS112..(4FC,5F)..ROY..4D198003-198108

GREIGE,BEIGE,TRIM4#

main73240-30041-15iGS110,LS110,111,MS110..(4FC,5F)..(SAL,SDX,SPE)198108-198307

W/SP,BEIGE,BEIGE,TRIM4#

main73240-30050-02iMS112..4HC..ROY197909-198003

DARK WINE,RED/MAROON,TRIM3#

main73240-30050-04iMS112..4HC..ROY197909-198003

BLUE,BLUE,TRIM8#

main73240-30050-05iMS112..4HC..ROY197909-198003

GREIGE,BEIGE,TRIM4#

main73240-30051-02iMS112..4HC..ROY198003-198108

DARK WINE,RED/MAROON,TRIM3#

main73240-30051-04iMS112..4HC..ROY198003-198108

BLUE,BLUE,TRIM8#

main73240-30051-05iMS112..4HC..ROY198003-198108

GREIGE,BEIGE,TRIM4#

main73240-30052-03iGS110..4HC..SAL198108-198307

W/LOUNGE SEAT,GRAY,GRAY,TRIM1#

main73240-30052-04iGS110..4HC..SAL198108-198307

W/LOUNGE SEAT,BLUE,BLUE,TRIM8#

main73240-30052-15iGS110..4HC..SAL198108-198307

W/LOUNGE SEAT,BEIGE,BEIGE,TRIM4#

73241PROTECTOR OR CASE, BELT RETRACTOR

main73241-30010×2iGS110,MS110,112..2D197909-198307

9010911003

main90109-11003

9018304046

main90183-04046

9018906018

main90189-06018

9020510003

main90205-10003

9020615002

main90206-15002

9025404004

main90254-04004

9038711009

main90387-11009

9056011010

main90560-11010

9056011011

main90560-11011

9161161020

main91611-61020

9165161025

main91651-61025

9354016020

main93540-16020

9354054010

main93540-54010

9451101200

main94511-01200

27 parts on this diagram · 2 diagrams in section
