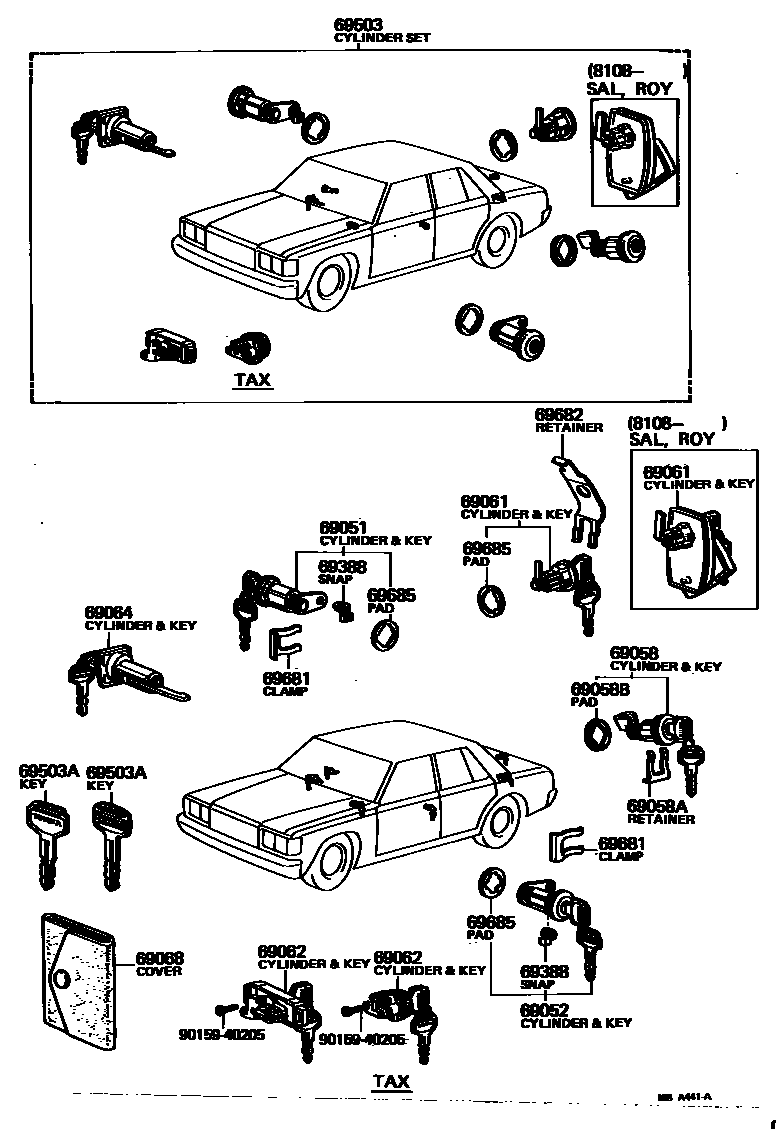

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-39035iLS11#,MS11#,RS110..4D197909-198003

sub69051-39036

main69051-39036iGS11#,LS11#,MS11#,RS110..(BTP,CTE,DLX,SAL,SDX,SPE,STD,TAX)..4D198003-198307

sub69051-29306

main69051-39045iMS110,112..2D197909-198003

sub69051-39046

main69051-39046iMS110,112..2D198003-198108

main69051-39055iGS110,LS111,MS110,112..SED..(ROY,SAL)198108-198307

W/LAMP

main69051-39065iGS110,MS110,112..2D198108-198307

W/LAMP

main69051-39075iGS110,LS111,MS110,112..4DH..(ROY,SAL)198108-198307

W/LAMP

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-39035iLS11#,MS11#,RS110..4D197909-198003

sub69052-39036

main69052-39036iGS11#,LS11#,MS11#,RS110..4D198003-198307

sub69052-29306

main69052-39045iMS110,112..2D197909-198003

sub69052-39046

main69052-39046iGS110,MS110,112..2D198003-198307

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-39025iGS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC197909-198307

69058ARETAINER, FUEL FILLER LID CYLINDER

main69581-14010iGS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC197909-198307

69058BPAD, FUEL FILLER LID CYLINDER

main69513-14010iGS11#,LS11#,MS11#..CBR,DSL,EFI,TBO,TD,TDE,TWC197909-198307

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-30050iGS110,LS110,111,MS110,112..SED..(ROY,SAL)198108-198307

main69055-30060iGS110,LS111,MS110,112..HT..(ROY,SAL)198108-198307

main69055-39015iLS110,MS110,112,RS110..SED197909-198307

main69055-39025iLS110,MS110,112..HT197909-198307

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69009-91702iGS110,LS110..WG198108-198307

RR

main69056-30020-02iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub69056-30020

main69056-30020-03iGS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)198108-198307

GRAY,GRAY,TRIM1#

sub69056-30020

main69056-30020-04iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198307

BLUE,BLUE,TRIM8#

sub69056-30020

main69056-30020-05iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE,STD197909-198108

GREIGE,BEIGE,TRIM4#

sub69056-30020

main69056-30020-15iGS110,LS110,111,MS110,112,RS110..(HT,SED)..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)198108-198307

BEIGE,BEIGE,TRIM4#

sub69056-30020

main69056-30030iLS110,RS110..TAX197909-198307

sub69056-90P01

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-30020iGS11#,LS11#,MS11#,RS110197909-198307

69068COVER SUB-ASSY, KEY

main69555-20010iGS11#,LS11#,MS11#,RS110197909-198307

69388SNAP, ROD(FOR DOOR LOCK)

main69377-30020iLS11#,MS11#,RS110197909-198108

main69759-24080iGS11#,LS11#,MS11#,RS110198108-198307

RH

main69759-24090iGS11#,LS11#,MS11#,RS110198108-198307

LH

69503CYLINDER SET, LOCK

main69005-30100iLS110,MS110..STD197909-198307

main69005-30110-03iMS110,RS110..(BTP,DLX)..LPG198108-198307

GRAY,GRAY,TRIM1#

main69005-30110-04iMS110,RS110..(BTP,DLX)..LPG197909-198108

BLUE,BLUE,TRIM8#

main69005-30110-05iMS110,RS110..(BTP,DLX)..LPG197909-198108

GREIGE,BEIGE,TRIM4#

main69005-30110-15iMS110,RS110..(BTP,DLX)..LPG198108-198307

BEIGE,BEIGE,TRIM4#

main69005-30120iRS110..STD197909-198307

main69005-30130iLS110..TAX197909-198307

main69005-30140iRS110..TAX197909-198307

main69005-30150-02iLS110,MS110,112..SED..(BTP,DLX,ROY,SAL,SDX)..(CBR,DSL,EFI,TBO)197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub69005-30150

main69005-30150-03iGS110,LS110,111,MS110..SED..(BTP,DLX,SDX)..(CBR,DSL,EFI,TD,TDE)198108-198307

GRAY,GRAY,TRIM1#

sub69005-30150

main69005-30150-04iLS110,MS110,112..SED..(BTP,DLX,ROY,SAL,SDX)..(CBR,DSL,EFI,TBO)197909-198307

BLUE,BLUE,TRIM8#

sub69005-30150

main69005-30150-05iLS110,MS110,112..SED..(BTP,DLX,ROY,SAL,SDX)..(CBR,DSL,EFI,TBO)197909-198108

GREIGE,BEIGE,TRIM4#

sub69005-30150

main69005-30150-15iGS110,LS110,111,MS110..SED..(BTP,DLX,SDX)..(CBR,DSL,EFI,TD,TDE)198108-198307

BEIGE,BEIGE,TRIM4#

sub69005-30150

main69005-30160-02iLS110,MS110,112..4DH197909-198108

DARK WINE,RED/MAROON,TRIM3#

sub69005-30160

main69005-30160-03iGS110,LS110,111,MS110..CTE,SPE198108-198307

GRAY,GRAY,TRIM1#

sub69005-30160

main69005-30160-04iGS110,LS110,111,MS110..CTE,SPE197909-198307

BLUE,BLUE,TRIM8#

sub69005-30160

main69005-30160-05iLS110,MS110,112..4DH197909-198108

GREIGE,BEIGE,TRIM4#

sub69005-30160

main69005-30160-15iGS110,LS110,111,MS110..CTE,SPE198108-198307

BEIGE,BEIGE,TRIM4#

sub69005-30160

main69005-30180-02iMS110,112..2D197909-198108

DARK WINE,RED/MAROON,TRIM3#

main69005-30180-04iMS110,112..2D197909-198108

BLUE,BLUE,TRIM8#

main69005-30180-05iMS110,112..2D197909-198108

GREIGE,BEIGE,TRIM4#

main69005-30200-03iGS110,LS110..SED..SAL198108-198307

GRAY,GRAY,TRIM1#

main69005-30200-04iGS110,LS110..SED..SAL198108-198307

BLUE,BLUE,TRIM8#

main69005-30200-15iGS110,LS110..SED..SAL198108-198307

BEIGE,BEIGE,TRIM4#

main69005-30210-03iGS110,LS111,MS110..SED..SAL198108-198307

GRAY,GRAY,TRIM1#

main69005-30210-03iMS112..SED198108-198307

*EXT,GRAY,GRAY,TRIM1#

main69005-30210-04iGS110,LS111,MS110..SED..SAL198108-198307

BLUE,BLUE,TRIM8#

main69005-30210-04iGS110,LS111,MS110..SED..SAL198108-198307

*EXT,BLUE,BLUE,TRIM8#

main69005-30210-15iMS112..SED198108-198307

*EXT,BEIGE,BEIGE,TRIM4#

main69005-30210-15iMS112..SED198108-198307

BEIGE,BEIGE,TRIM4#

main69005-30240-03iGS110..4DH..SAL198108-198307

GRAY,GRAY,TRIM1#

main69005-30240-04iGS110..4DH..SAL198108-198307

BLUE,BLUE,TRIM8#

main69005-30240-15iGS110..4DH..SAL198108-198307

BEIGE,BEIGE,TRIM4#

main69005-30250-03iMS112..4DH198108-198307

*EXT,GRAY,GRAY,TRIM1#

sub69005-30250

main69005-30250-03iMS112..4DH198108-198307

GRAY,GRAY,TRIM1#

sub69005-30250

main69005-30250-04iMS112..4DH198108-198307

*EXT,BLUE,BLUE,TRIM8#

sub69005-30250

main69005-30250-04iMS112..4DH198108-198307

BLUE,BLUE,TRIM8#

sub69005-30250

main69005-30250-15iGS110,LS111,MS110..4DH..SAL198108-198307

*EXT,BEIGE,BEIGE,TRIM4#

sub69005-30250

main69005-30250-15iGS110,LS111,MS110..4DH..SAL198108-198307

BEIGE,BEIGE,TRIM4#

sub69005-30250

main69005-30260-03iGS110,MS110,112..2D198108-198307

GRAY,GRAY,TRIM1#

main69005-30260-04iGS110,MS110,112..2D198108-198307

BLUE,BLUE,TRIM8#

main69005-30260-15iGS110,MS110,112..2D198108-198307

BEIGE,BEIGE,TRIM4#

main69005-91701iMS117..SDX;LS110,MS110..WG197909-198307

main69005-91704iGS117,LS117,MS117..DLX,STD197909-198307

main69005-91705iGS110,LS110..WG198108-198307

69503AKEY, BLANK

main90999-00077iGS11#,LS11#,MS11#,RS110197909-198307

MASTER KEY

main90999-00078iGS11#,LS11#,MS11#,RS110197909-198307

SUB KEY

69681CLAMP, DOOR LOCK CYLINDER & SLEEVE

main69681-20040iLS11#,MS11#,RS110197909-198108

main69681-30050iGS11#,LS11#,MS11#,RS110198108-198307

69682RETAINER, LOCK CYLINDER

main69561-30020iGS110,LS110,111,MS110,112,RS110..HT,SED197909-198307

LUGGAGE

main69681-20040iGS110,LS110..WG198108-198307

DECK

69685PAD, LOCK CYLINDER

main69513-12020iGS11#,LS11#,MS11#,RS110198003-198307

FR DOOR

main69513-14010iGS110,LS110..WG198108-198307

DECK

main69513-30010iGS110,LS111,MS110,112..ROY,SAL198108-198307

FR DOOR RH,W/LAMP

main69685-12010iGS110,LS110,111,MS110,112,RS110..HT,SED198003-198307

LUGGAGE

main69685-12010iLS11#,MS11#,RS110197909-198003

9015940205

main90159-40205

16 parts on this diagram · 2 diagrams in section
