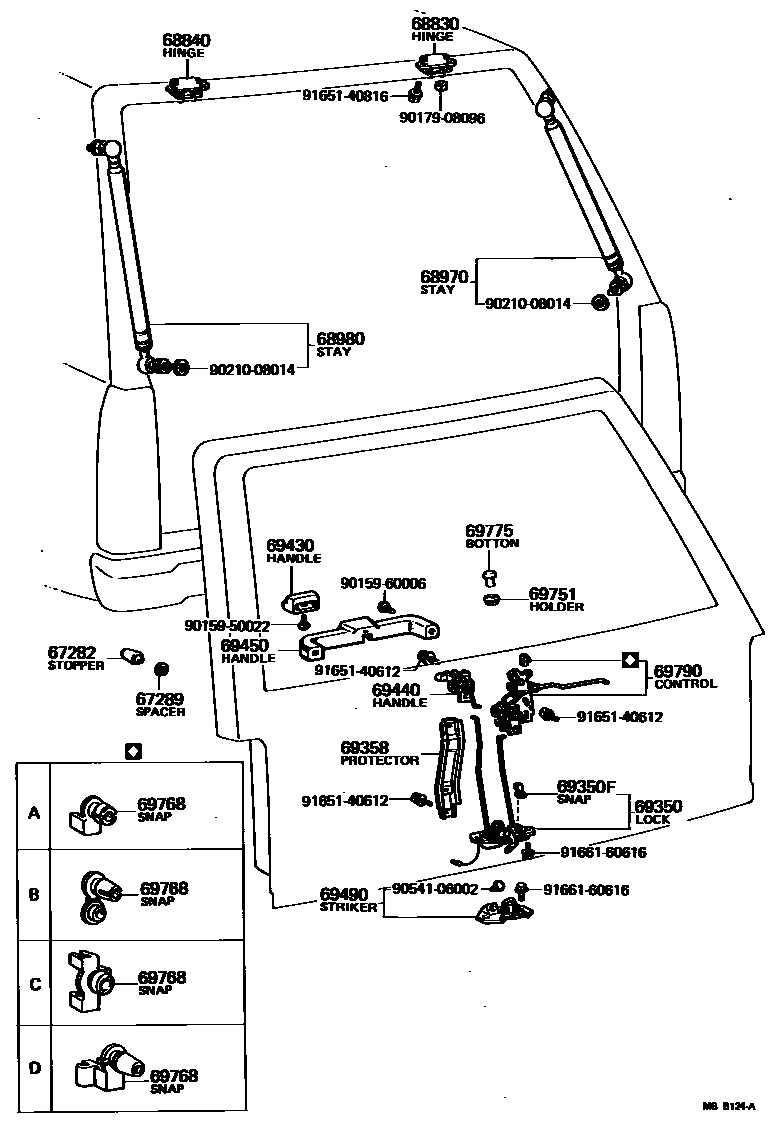

BACK DOOR LOCK & HANDLE

67282STOPPER, BACK DOOR, NO.1

main67281-13030iGS11#,LS110,117,MS110,117..V,WG197909-198307

67289SPACER, BACK DOOR SIDE STOPPER, LOWER

main90213-12019iGS11#,LS110,117,MS110,117..V,WG197909-198307

T=1.0

main90213-12020iGS11#,LS110,117,MS110,117..V,WG197909-198307

T=2.3

68830HINGE ASSY, BACK DOOR, RH

main68810-91704iGS11#,LS110,117,MS110,117..V,WG197909-198307

sub68810-23010

68840HINGE ASSY, BACK DOOR, LH

main68810-91704iGS11#,LS110,117,MS110,117..V,WG197909-198307

sub68810-23010

68970STAY ASSY, BACK DOOR, RH

main68950-39015iGS117,LS117,MS117..DLX,STD197909-198307

sub68950-29305

main68950-39025iGS11#,LS110,117,MS110,117..(V,WG)..(DLX,SDX)197909-198307

W/RR WIPER

sub68950-29315

68980STAY ASSY, BACK DOOR

main68950-39015iLS117,MS117..DLX,STD197909-198001

sub68950-29305

main68950-39025iLS11#,MS117..(V,WG)..(DLX,SDX)197909-198001

W/RR WIPER

sub68950-29315

main68960-39015iGS117,LS117,MS117..DLX,STD198001-198307

sub68950-29305

main68960-39025iGS11#,LS110,117,MS110,117..(V,WG)..(DLX,SDX)198001-198307

W/RR WIPER

sub68950-29315

69350LOCK ASSY, BACK DOOR

main69350-91701iLS117,MS117197909-198108

main69350-91702iLS110,MS110..WG197909-198108

main69350-91703iGS110,LS110..WG198108-198307

main69350-91704iGS117,LS117,MS117198108-198307

69350FSNAP, DOOR LOCK CONTROL ROD

main69377-12010iLS11#,MS110,117..V,WG197909-198307

69358PROTECTOR, BACK DOOR LOCK

main69358-91701iLS11#,MS110,117..V,WG197909-198106

sub69358-91702

main69358-91702iGS11#,LS110,117,MS110,117..V,WG198106-198307

69430HANDLE ASSY, BACK DOOR PULL CENTER

main69403-91701-04iLS110,MS110..WG197909-198307

BLUE,BLUE,TRIM8#

sub69403-91701

main69403-91701-05iLS110,MS110..WG197909-198108

GREIGE,BEIGE,TRIM4#

sub69403-91701

main69403-91701-15iGS110,LS110..WG198108-198307

BEIGE,BEIGE,TRIM4#

sub69403-91701

69440HANDLE ASSY, BACK DOOR INSIDE

main69209-91701iGS110,LS110,MS110..WG197909-198307

69450HANDLE ASSY, BACK DOOR PULL

main69405-91701-04iLS110,MS110..WG197909-198307

BLUE,BLUE,TRIM8#

sub69405-91701

main69405-91701-05iLS110,MS110..WG197909-198108

GREIGE,BEIGE,TRIM4#

sub69405-91701

main69405-91701-15iGS110,LS110..WG198108-198307

BEIGE,BEIGE,TRIM4#

sub69405-91701

69490STRIKER ASSY, BACK DOOR LOCK

main69430-91701iGS11#,LS110,117,MS110,117..V,WG197909-198307

69751HOLDER, DOOR LOCK CONTROL KNOB

main69751-91701iGS117,MS117..SDX197909-198307

69768SNAP, BACK DOOR LOCK CONTROL LINK

main64949-21020iLS11#,MS110,117..V,WG197909-198108

TYPE C

main69377-12010iGS110,LS110,117,MS110,117..V,WG197909-198307

TYPE D

main69377-30020iGS11#,LS110,117,MS110,117..V,WG197909-198307

TYPE A

main69377-91701iLS110,MS110..WG197909-198008

TYPE B

69775BUTTON, DOOR LOCKING(FOR BACK DOOR)

main69741-91701iGS110,LS110,MS110..WG198010-198307

main69775-91501iLS110,MS110..WG197909-198010

sub69741-91701

69790CONTROL ASSY, BACK DOOR LOCK

main69790-91703iLS117,MS117197909-198108

main69790-91705iLS110,MS110..WG197909-198108

main69790-91706iGS110,LS110..WG198108-198307

main69790-91707iGS117,LS117,MS117198108-198307

sub69790-91706

9015950022

main90159-50022

9015960006

main90159-60006

9017908096

main90179-08096

9021008014

main90210-08014

9054106002

main90541-06002

9165140612

main91651-40612

9165140816

main91651-40816

9166160616

main91661-60616

25 parts on this diagram · 1 diagram in section
