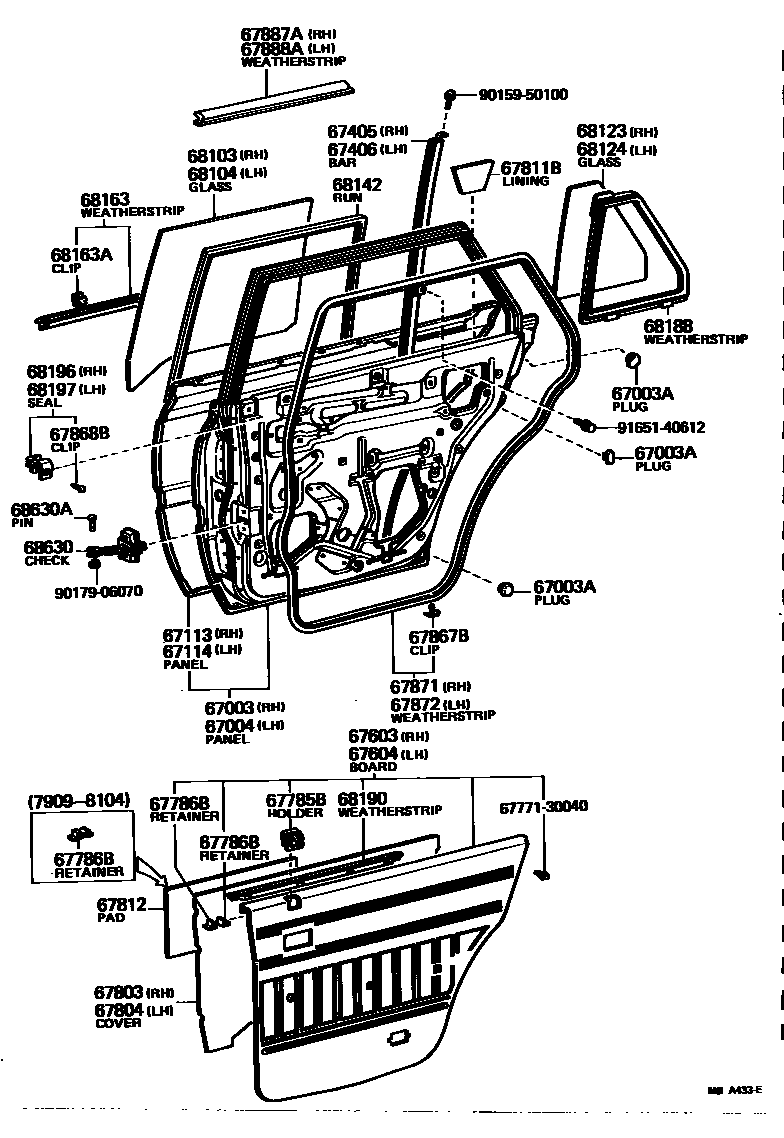

REAR DOOR PANEL & GLASS

0001 1 0002 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-30140iGS117,MS117;GS110,LS110,117,MS110,RS110..(SED,V,WG)..(BTP,DLX,STD,TAX)197909-198307

main67003-30150iGS110,LS110,MS110..4DH..(CTE,DLX)197909-198307

main67003-30160iGS110,LS110,111,MS110,112..4DH..(ROY,SAL,SPE)197909-198307

main67003-30170iLS110,MS110,112..SED..(ROY,SAL,SDX)197909-198106

main67003-30171iGS110,LS110,111,MS110,112..(SED,WG)..(ROY,SAL,SDX)198106-198307

main67003-30190iGS117,MS117;GS110,LS110,117,MS110,RS110..(SED,V,WG)..(BTP,DLX,STD,TAX)198106-198307

COLD SPEC,DOUBLE WEATHER STRIP

67003APLUG, HOLE(FOR REAR DOOR PANEL)

main90950-01006×2iGS11#,LS11#,MS11#,RS110..4D197909-198307

OD=14

main90950-01130×2iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

OD=27

main90950-01229×2iMS110..STD;GS117,LS117,MS112,117,RS110..4D;GS110,LS110,111..(SAL,STD,TAX)..4D;MS110..(BTP,DLX,SAL)..4D..(EFI,LPG,TBO)197909-198307

22X10,W/O CHILD PROTECTOR

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-30140iGS117,MS117;GS110,LS110,117,MS110,RS110..(SED,V,WG)..(BTP,DLX,STD,TAX)197909-198307

main67004-30150iGS110,LS110,MS110..4DH..(CTE,DLX)197909-198307

main67004-30160iGS110,LS110,111,MS110,112..4DH..(ROY,SAL,SPE)197909-198307

main67004-30170iLS110,MS110,112..SED..(ROY,SAL,SDX)197909-198106

main67004-30171iGS110,LS110,111,MS110,112..(SED,WG)..(ROY,SAL,SDX)198106-198307

main67004-30190iGS117,MS117;GS110,LS110,117,MS110,RS110..(SED,V,WG)..(BTP,DLX,STD,TAX)198106-198307

COLD SPEC,DOUBLE WEATHER STRIP

67113PANEL, REAR DOOR, OUTER RH

main67113-30070iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

main67113-30080iGS110,LS110,111,MS110,112..4DH197909-198307

67114PANEL, REAR DOOR, OUTER LH

main67114-30080iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

main67114-30090iGS110,LS110,111,MS110,112..4DH197909-198307

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-30060iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

main67407-30070iGS110,LS110,111,MS110,112..4DH197909-198307

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-30050iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

main67408-30060iGS110,LS110,111,MS110,112..4DH197909-198307

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-30510-03iGS117,LS110,117,MS110,117,RS110..STD198108-198307

GRAY,GRAY,TRIM1#

main67630-30510-05iLS11#,MS110,117,RS110..STD197909-198108

GREIGE,BEIGE,TRIM4#

main67630-30510-15iGS117,LS110,117,MS110,117,RS110..STD198108-198307

BEIGE,BEIGE,TRIM8#

main67630-30540iLS110,RS110..TAX197909-198108

GREIGE

main67630-30540-03iLS110,RS110..TAX198108-198307

GRAY,GRAY,TRIM1#

main67630-30550-03iGS110,LS110,MS110,RS110..DLX198108-198307

GRAY,GRAY,TRIM1#

main67630-30550-04iLS110,MS110,RS110..(SED,WG)..DLX; MS117..SDX197909-198108

BLUE,BLUE,TRIM8#

main67630-30550-05iLS110,MS110,RS110..(SED,WG)..DLX; MS117..SDX197909-198108

GREIGE,BEIGE,TRIM4#

main67630-30550-15iGS110,LS110,MS110,RS110..DLX; GS117,MS117..SDX198108-198307

BEIGE,BEIGE,TRIM4#

main67630-30560-04iLS110,MS110..SDX197909-198001

BLUE,BLUE,TRIM8#

main67630-30560-05iLS110,MS110..SDX197909-198001

GREIGE,BEIGE,TRIM4#

main67630-30561-04iLS110,MS110..SDX198001-198108

BLUE,BLUE,TRIM8#

main67630-30561-05iLS110,MS110..SDX198001-198108

GREIGE,BEIGE,TRIM4#

main67630-30562-03iGS110,LS110,111..SED..SDX198108-198307

GRAY,GRAY,TRIM1#

main67630-30562-05iGS110,LS110,111..SED..SDX198108-198307

BEIGE,BEIGE,TRIM4#

main67630-30580-02iMS112..SED..ROY197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67630-30580-04iMS112..SED..ROY197909-198108

BLUE,BLUE,TRIM8#

main67630-30580-05iMS112..SED..ROY197909-198108

GREIGE,BEIGE,TRIM4#

main67630-30581-03iMS112..SED198108-198307

GRAY,GRAY,TRIM1#

main67630-30581-04iMS112..SED198108-198307

BLUE,BLUE,TRIM8#

main67630-30581-05iMS112..SED198108-198307

BEIGE,BEIGE,TRIM4#

main67630-30590-03iGS117,LS117,MS117..DLX; MS110,RS110..BTP198108-198307

GRAY,GRAY,TRIM1#

main67630-30590-04iLS110,MS110,RS110..BTP; LS117,MS117..DLX197909-198108

BLUE,BLUE,TRIM8#

main67630-30590-05iLS110,MS110,RS110..BTP; LS117,MS117..DLX197909-198108

GREIGE,BEIGE,TRIM4#

main67630-30590-15iGS117,LS117,MS117..DLX; MS110,RS110..BTP198108-198307

BEIGE,BEIGE,TRIM4#

main67630-30610-02iMS110..4DH..DLX197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67630-30610-04iMS110..4DH..DLX197909-198108

BLUE,BLUE,TRIM8#

main67630-30610-05iMS110..4DH..DLX197909-198108

GREIGE,BEIGE,TRIM4#

main67630-30620-02iMS110..SPE..4D197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67630-30620-04iMS110..SPE..4D197909-198108

BLUE,BLUE,TRIM8#

main67630-30620-05iMS110..SPE..4D197909-198108

GREIGE,BEIGE,TRIM4#

main67630-30621-03iGS110,LS110,111,MS110..SPE198108-198307

GRAY,GRAY,TRIM1#

main67630-30621-04iGS110,LS110,111,MS110..SPE198108-198307

BLUE,BLUE,TRIM8#

main67630-30621-05iGS110,LS110,111,MS110..SPE198108-198307

BEIGE,BEIGE,TRIM4#

main67630-30630-02iMS110,112..4DH..SAL197909-198001

DARK WINE,RED/MAROON,TRIM3#

main67630-30630-04iMS110,112..4DH..SAL197909-198001

BLUE,BLUE,TRIM8#

main67630-30630-05iMS110,112..4DH..SAL197909-198001

GREIGE,BEIGE,TRIM4#

main67630-30631-02iMS110,112..4DH..SAL198001-198108

DARK WINE,RED/MAROON,TRIM3#

main67630-30631-04iMS110,112..4DH..SAL198001-198108

BLUE,BLUE,TRIM8#

main67630-30631-05iMS110,112..4DH..SAL198001-198108

GREIGE,BEIGE,TRIM4#

main67630-30632-03iGS110..4DH..SAL198108-198307

GRAY,GRAY,TRIM1#

main67630-30632-04iGS110..4DH..SAL198108-198307

BLUE,BLUE,TRIM8#

main67630-30632-05iGS110..4DH..SAL198108-198307

BEIGE,BEIGE,TRIM4#

main67630-30640-02iMS112..4DH..ROY197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67630-30640-04iMS112..4DH..ROY197909-198108

BLUE,BLUE,TRIM8#

main67630-30640-05iMS112..4DH..ROY197909-198108

GREIGE,BEIGE,TRIM4#

main67630-30641-03iMS112..4DH..4FC198108-198307

GRAY,GRAY,TRIM1#

main67630-30641-04iMS112..4DH..4FC198108-198307

BLUE,BLUE,TRIM8#

main67630-30641-05iMS112..4DH..4FC198108-198307

BEIGE,BEIGE,TRIM4#

main67630-30650-02iLS110,MS110..CTE197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67630-30650-04iLS110,MS110..CTE197909-198108

BLUE,BLUE,TRIM8#

main67630-30650-05iLS110,MS110..CTE197909-198108

GREIGE,BEIGE,TRIM4#

main67630-30651-03iGS110,LS110..CTE198108-198307

GRAY,GRAY,TRIM1#

main67630-30651-04iGS110,LS110..CTE198108-198307

BLUE,BLUE,TRIM8#

main67630-30651-05iGS110,LS110..CTE198108-198307

BEIGE,BEIGE,TRIM4#

main67630-30670iMS112..4DH..(4FC,5F)..ROY197909-198108

W/LEATHER SEAT,DARK WINE

main67630-30670-05iMS112..4DH..4FC198108-198307

W/LEATHER SEAT,BEIGE,BEIGE,TRIM4#

main67630-30680-02iMS110,112..SED..SAL197909-198001

DARK WINE,RED/MAROON,TRIM3#

main67630-30680-04iMS110,112..SED..SAL197909-198001

BLUE,BLUE,TRIM8#

main67630-30680-05iMS110,112..SED..SAL197909-198001

GREIGE,BEIGE,TRIM4#

main67630-30681-02iMS110,112..SED..SAL198001-198108

DARK WINE,RED/MAROON,TRIM3#

main67630-30681-04iMS110,112..SED..SAL198001-198108

BLUE,BLUE,TRIM8#

main67630-30681-05iMS110,112..SED..SAL198001-198108

GREIGE,BEIGE,TRIM4#

main67630-30691-03iGS110,LS110..SED..SAL198108-198307

GRAY,GRAY,TRIM1#

main67630-30691-04iGS110,LS110..SED..SAL198108-198307

BLUE,BLUE,TRIM8#

main67630-30691-05iGS110,LS110..SED..SAL198108-198307

BEIGE,BEIGE,TRIM4#

main67630-30700-03iMS112..SED..4HC198108-198307

W/LOUNGE SEAT,GRAY,GRAY,TRIM1#

main67630-30700-04iMS112..SED..4HC198108-198307

W/LOUNGE SEAT,BLUE,BLUE,TRIM8#

main67630-30700-05iMS112..SED..4HC198108-198307

W/LOUNGE SEAT,BEIGE,BEIGE,TRIM4#

main67630-30710-03iGS110,LS111,MS110..4DH..SAL198108-198307

*EXT,GRAY,GRAY,TRIM1#

main67630-30710-04iGS110,LS111,MS110..4DH..SAL198108-198307

*EXT,BLUE,BLUE,TRIM8#

main67630-30710-05iGS110,LS111,MS110..4DH..SAL198108-198307

*EXT,BEIGE,BEIGE,TRIM4#

main67630-30720-03iGS110,LS111,MS110..SED..SAL198108-198307

*EXT,GRAY,GRAY,TRIM1#

main67630-30720-04iGS110,LS111,MS110..SED..SAL198108-198307

*EXT,BLUE,BLUE,TRIM8#

main67630-30720-05iGS110,LS111,MS110..SED..SAL198108-198307

*EXT,BEIGE,BEIGE,TRIM4#

main67630-30730-03iMS112..4DH..4HC198108-198307

GRAY,GRAY,TRIM1#

main67630-30730-04iMS112..4DH..4HC198108-198307

BLUE,BLUE,TRIM8#

main67630-30730-05iMS112..4DH..4HC198108-198307

BEIGE,BEIGE,TRIM4#

main67630-30740iGS110,MS110..SPE198206-198208

ECLAIR,BEIGE

main67630-30740-04iGS110,MS110..SPE198208-198302

ECLAIR,BLUE,BLUE,TRIM8#

main67630-30740-05iGS110,MS110..SPE198208-198302

ECLAIR,BEIGE,BEIGE,TRIM4#

main67630-3A030-04iGS110,LS111,MS110..SPE198302-198307

ECLAIR,BLUE,BLUE,TRIM8#

main67630-3A030-05iGS110,LS111,MS110..SPE198302-198307

ECLAIR,BEIGE,BEIGE,TRIM4#

main67630-91704iMS110..3FC..DLX198011-198011

25TH ANNIVERSARY

main67630-91705-04iGS110..WG..SDX198108-198307

BLUE,BLUE,TRIM8#

main67630-91705-05iGS110..WG..SDX198108-198307

BEIGE,BEIGE,TRIM4#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-30510-03iGS117,LS110,117,MS110,117,RS110..STD198108-198307

GRAY,GRAY,TRIM1#

main67640-30510-05iLS11#,MS110,117,RS110..STD197909-198108

GREIGE,BEIGE,TRIM4#

main67640-30510-15iGS117,LS110,117,MS110,117,RS110..STD198108-198307

BEIGE,BEIGE,TRIM4#

main67640-30540iLS110,RS110..TAX197909-198108

GREIGE

main67640-30540-03iLS110,RS110..TAX198108-198307

GRAY,GRAY,TRIM1#

main67640-30550-03iGS110,LS110,MS110,RS110..DLX198108-198307

GRAY,GRAY,TRIM1#

main67640-30550-04iGS110,LS110,MS110,RS110..DLX; GS117,MS117..SDX198108-198307

BLUE,BLUE,TRIM8#

main67640-30550-05iLS110,MS110,RS110..(SED,WG)..DLX; MS117..SDX197909-198108

GREIGE,BEIGE,TRIM4#

main67640-30550-15iGS110,LS110,MS110,RS110..DLX; GS117,MS117..SDX198108-198307

BEIGE,BEIGE,TRIM4#

main67640-30560-04iLS110,MS110..SDX197909-198001

BLUE,BLUE,TRIM8#

main67640-30560-05iLS110,MS110..SDX197909-198001

GREIGE,BEIGE,TRIM4#

main67640-30561-04iLS110,MS110..SDX198001-198108

BLUE,BLUE,TRIM8#

main67640-30561-05iLS110,MS110..SDX198001-198108

GREIGE,BEIGE,TRIM4#

main67640-30562-03iGS110,LS110,111..SED..SDX198108-198307

GRAY,GRAY,TRIM1#

main67640-30562-05iGS110,LS110,111..SED..SDX198108-198307

BEIGE,BEIGE,TRIM4#

main67640-30580-02iMS112..SED..ROY197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67640-30580-04iMS112..SED..ROY197909-198108

BLUE,BLUE,TRIM8#

main67640-30580-05iMS112..SED..ROY197909-198108

GREIGE,BEIGE,TRIM4#

main67640-30581-03iMS112..SED198108-198307

GRAY,GRAY,TRIM1#

main67640-30581-04iMS112..SED198108-198307

BLUE,BLUE,TRIM8#

main67640-30581-05iMS112..SED198108-198307

BEIGE,BEIGE,TRIM4#

main67640-30590-03iMS110,RS110..BTP198108-198307

GRAY,GRAY,TRIM1#

main67640-30590-04iLS110,MS110,RS110..BTP; LS117,MS117..DLX197909-198108

BLUE,BLUE,TRIM8#

main67640-30590-05iLS110,MS110,RS110..BTP; LS117,MS117..DLX197909-198108

GREIGE,BEIGE,TRIM4#

main67640-30590-15iGS117,LS117,MS117..DLX; MS110,RS110..BTP198108-198307

BEIGE,BEIGE,TRIM4#

main67640-30610-02iMS110..4DH..DLX197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67640-30610-04iMS110..4DH..DLX197909-198108

BLUE,BLUE,TRIM8#

main67640-30610-05iMS110..4DH..DLX197909-198108

GREIGE,BEIGE,TRIM4#

main67640-30620-02iMS110..SPE..4D197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67640-30620-04iMS110..SPE..4D197909-198108

BLUE,BLUE,TRIM8#

main67640-30620-05iMS110..SPE..4D197909-198108

GREIGE,BEIGE,TRIM4#

main67640-30621-03iGS110,LS110,111,MS110..SPE198108-198307

GRAY,GRAY,TRIM1#

main67640-30621-04iGS110,LS110,111,MS110..SPE198108-198307

BLUE,BLUE,TRIM8#

main67640-30621-05iGS110,LS110,111,MS110..SPE198108-198307

BEIGE,BEIGE,TRIM4#

main67640-30630-02iMS110,112..4DH..SAL197909-198001

DARK WINE,RED/MAROON,TRIM3#

main67640-30630-04iMS110,112..4DH..SAL197909-198001

BLUE,BLUE,TRIM8#

main67640-30630-05iMS110,112..4DH..SAL197909-198001

GREIGE,BEIGE,TRIM4#

main67640-30631-02iMS110,112..4DH..SAL198001-198108

DARK WINE,RED/MAROON,TRIM3#

main67640-30631-04iMS110,112..4DH..SAL198001-198108

BLUE,BLUE,TRIM8#

main67640-30631-05iMS110,112..4DH..SAL198001-198108

GREIGE,BEIGE,TRIM4#

main67640-30632-03iGS110..4DH..SAL198108-198307

GRAY,GRAY,TRIM1#

main67640-30632-04iGS110..4DH..SAL198108-198307

BLUE,BLUE,TRIM8#

main67640-30632-05iGS110..4DH..SAL198108-198307

BEIGE,BEIGE,TRIM4#

main67640-30640-02iMS112..4DH..ROY197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67640-30640-04iMS112..4DH..ROY197909-198108

BLUE,BLUE,TRIM8#

main67640-30640-05iMS112..4DH..ROY197909-198108

GREIGE,BEIGE,TRIM4#

main67640-30641-03iMS112..4DH..4FC198108-198307

GRAY,GRAY,TRIM1#

main67640-30641-04iMS112..4DH..4FC198108-198307

BLUE,BLUE,TRIM8#

main67640-30641-05iMS112..4DH..4FC198108-198307

BEIGE,BEIGE,TRIM4#

main67640-30650-02iLS110,MS110..CTE197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67640-30650-04iLS110,MS110..CTE197909-198108

BLUE,BLUE,TRIM8#

main67640-30650-05iLS110,MS110..CTE197909-198108

GREIGE,BEIGE,TRIM4#

main67640-30651-03iGS110,LS110..CTE198108-198307

GRAY,GRAY,TRIM1#

main67640-30651-04iGS110,LS110..CTE198108-198307

BLUE,BLUE,TRIM8#

main67640-30651-05iGS110,LS110..CTE198108-198307

BEIGE,BEIGE,TRIM4#

main67640-30670iMS112..4DH..(4FC,5F)..ROY197909-198108

W/LEATHER SEAT,DARK WINE

main67640-30670-05iMS112..4DH..4FC198108-198307

W/LEATHER SEAT,BEIGE,BEIGE,TRIM4#

main67640-30680-02iMS110,112..SED..SAL197909-198001

DARK WINE,RED/MAROON,TRIM3#

main67640-30680-04iMS110,112..SED..SAL197909-198001

BLUE,BLUE,TRIM8#

main67640-30680-05iMS110,112..SED..SAL197909-198001

GREIGE,BEIGE,TRIM4#

main67640-30681-02iMS110,112..SED..SAL198001-198108

DARK WINE,RED/MAROON,TRIM3#

main67640-30681-04iMS110,112..SED..SAL198001-198108

BLUE,BLUE,TRIM8#

main67640-30681-05iMS110,112..SED..SAL198001-198108

GREIGE,BEIGE,TRIM4#

main67640-30691-03iGS110,LS110..SED..SAL198108-198307

GRAY,GRAY,TRIM1#

main67640-30691-04iGS110,LS110..SED..SAL198108-198307

BLUE,BLUE,TRIM8#

main67640-30691-05iGS110,LS110..SED..SAL198108-198307

BEIGE,BEIGE,TRIM4#

main67640-30700-03iMS112..SED..4HC198108-198307

W/LOUNGE SEAT,GRAY,GRAY,TRIM1#

main67640-30700-04iMS112..SED..4HC198108-198307

W/LOUNGE SEAT,BLUE,BLUE,TRIM8#

main67640-30700-05iMS112..SED..4HC198108-198307

W/LOUNGE SEAT,BEIGE,BEIGE,TRIM4#

main67640-30710-03iGS110,LS111,MS110..4DH..SAL198108-198307

*EXT,GRAY,GRAY,TRIM1#

main67640-30710-04iGS110,LS111,MS110..4DH..SAL198108-198307

*EXT,BLUE,BLUE,TRIM8#

main67640-30710-05iGS110,LS111,MS110..4DH..SAL198108-198307

*EXT,BEIGE,BEIGE,TRIM4#

main67640-30720-03iGS110,LS111,MS110..SED..SAL198108-198307

*EXT,GRAY,GRAY,TRIM1#

main67640-30720-04iGS110,LS111,MS110..SED..SAL198108-198307

*EXT,BLUE,BLUE,TRIM8#

main67640-30720-05iGS110,LS111,MS110..SED..SAL198108-198307

*EXT,BEIGE,BEIGE,TRIM4#

main67640-30730-03iMS112..4DH..4HC198108-198307

GRAY,GRAY,TRIM1#

main67640-30730-04iMS112..4DH..4HC198108-198307

BLUE,BLUE,TRIM8#

main67640-30730-05iMS112..4DH..4HC198108-198307

BEIGE,BEIGE,TRIM4#

main67640-30740iGS110,MS110..SPE198206-198208

ECLAIR,BEIGE

main67640-30740-04iGS110,MS110..SPE198208-198302

ECLAIR,BLUE,BLUE,TRIM8#

main67640-30740-05iGS110,MS110..SPE198208-198302

ECLAIR,BEIGE,BEIGE,TRIM4#

main67640-3A030-04iGS110,LS111,MS110..SPE198302-198307

ECLAIR,BLUE,BLUE,TRIM8#

main67640-3A030-05iGS110,LS111,MS110..SPE198302-198307

ECLAIR,BEIGE,BEIGE,TRIM4#

main67640-91704iMS110..3FC..DLX198011-198011

25TH ANNIVERSARY

main67640-91705-04iGS110..WG..SDX198108-198307

BLUE,BLUE,TRIM8#

main67640-91705-05iGS110..WG..SDX198108-198307

BEIGE,BEIGE,TRIM4#

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67785-30040-02×2iLS11#,MS11#,RS110..4D197909-198108

DARK WINE,RED/MAROON,TRIM3#

main67785-30040-03×2iGS11#,LS11#,MS11#,RS110..4D198108-198307

GRAY,GRAY,TRIM1#

main67785-30040-04×2iGS11#,LS11#,MS11#,RS110..4D198108-198307

BLUE,BLUE,TRIM8#

main67785-30040-05×2iLS11#,MS11#,RS110..4D197909-198108

GREIGE,BEIGE,TRIM4#

main67785-30040-25×2iGS11#,LS11#,MS11#,RS110..4D198108-198307

BEIGE,BEIGE,TRIM4#

67786BRETAINER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67786-30020×4iGS11#,LS11#,MS11#,RS110..4D198104-198307

main67786-30030×2iLS11#,MS11#,RS110..4D197909-198104

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-30110iGS117,MS117;GS110,LS110,117,MS110,RS110..(SED,V,WG)..(BTP,DLX,STD,TAX)197909-198307

main67841-30120iGS110,LS110,111,MS110,112..(SED,WG)..(ROY,SAL,SDX)197909-198307

main67841-30130iGS110,LS110,MS110..4DH..(CTE,DLX)197909-198307

main67841-30140iGS110,LS110,111,MS110,112..4DH..(ROY,SAL,SPE)197909-198307

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-30110iGS117,MS117;GS110,LS110,117,MS110,RS110..(SED,V,WG)..(BTP,DLX,STD,TAX)197909-198307

main67841-30120iGS110,LS110,111,MS110,112..(SED,WG)..(ROY,SAL,SDX)197909-198307

main67841-30140iGS110,LS110,111,MS110,112..4DH..(ROY,SAL,SPE)197909-198307

main67842-30020iGS110,LS110,MS110..4DH..(CTE,DLX)197909-198307

67811BPAD, SIDE PANEL SILENCER

main67139-12010×2iGS11#,LS110,117,MS110,117..V,WG197909-198212

67812PAD, REAR DOOR SILENCER

main67811-12040×2iGS11#,LS11#,MS11#,RS110..4D197909-198307

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67868-30040×42iGS11#,LS11#,MS11#,RS110..4D197909-198307

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67868-30030×2iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

main67869-30020×4iLS110,111,MS110,112..4DH197909-198307

67871WEATHERSTRIP, REAR DOOR, RH

main67871-30080iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

main67871-30090iGS110,LS110,111,MS110,112..4DH197909-198307

67872WEATHERSTRIP, REAR DOOR, LH

main67872-30080iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

main67872-30090iGS110,LS110,111,MS110,112..4DH197909-198307

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-30010iGS11#,LS11#,MS11#,RS110..SED,V,WG198106-198307

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-30010iGS11#,LS11#,MS11#,RS110..SED,V,WG198106-198307

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-30180iGS117,LS110,117,MS110,117,RS110..STD,TAX197909-198307

*TEM,T=4.0

main68113-30190iGS11#,LS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,TAX)197909-198307

*TT,T=4.0

main68113-30200iGS110,LS110,111,MS110,112..4DH197909-198307

*TT,T=4.0

main68113-30210iGS110,MS110..SPE198206-198302

ECLAIR,*TT,T=4.0,BRONZE

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-30100iGS117,LS110,117,MS110,117,RS110..STD,TAX197909-198307

*TEM,T=4.0

main68114-30110iGS11#,LS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,TAX)197909-198307

*TT,T=4.0

main68114-30120iGS110,LS110,111,MS110,112..4DH197909-198307

*TT,T=4.0

main68114-30130iGS110,MS110..SPE198206-198302

ECLAIR,*TT,T=4.0,BRONZE

68123GLASS, REAR DOOR WINDOW, RH

main68123-30160iGS117,LS110,117,MS110,117,RS110..STD,TAX197909-198307

*TEM,T=4.0

main68123-30170iGS11#,LS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,TAX)197909-198307

*TT,T=4.0

68124GLASS, REAR DOOR WINDOW, LH

main68124-30100iGS117,LS110,117,MS110,117,RS110..STD,TAX197909-198307

*TEM,T=4.0

main68124-30110iGS11#,LS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX,TAX)197909-198307

*TT,T=4.0

68142RUN, REAR DOOR GLASS

main68142-30060×2iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

RUBBER,PLANT.A21-A26

main68142-30080×2iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

VINYL CHLORIDE,PLANT.M21,N11

68163WEATHERSTRIP, REAR DOOR GLASS, OUTER

main68180-30070×2iGS117,LS117,MS117..DLX,STD; LS110,MS110,RS110..STD,TAX198108-198307

68163ACLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)

main68211-10030×10iLS11#,MS110,117,RS110..STD,TAX197909-198108

main68211-12080×10iGS117,LS117..DLX,STD; LS110,MS110,RS110..STD,TAX198301-198307

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-30060iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

RH

main68189-30040iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

LH

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-30100×2iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

main68190-30110iGS110,LS110,111,MS110,112..4DH197909-198307

RH

main68240-30080iGS110,LS110,111,MS110,112..4DH197909-198307

LH

68196SEAL, REAR DOOR BELT, RH

main68196-30020iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

68197SEAL, REAR DOOR BELT, LH

main68197-30020iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

68630CHECK ASSY, REAR DOOR

main68630-30010×2iGS11#,LS11#,MS11#,RS110..SED,V,WG197909-198307

main68630-30030×2iGS110,LS110,111,MS110,112..4DH197909-198307

68630APIN(FOR REAR DOOR CHECK)

main68617-30010×2iGS11#,LS11#,MS11#,RS110..4D197909-198307

6777130040WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30040

9015950100

main90159-50100

9017906070

main90179-06070

9165140612

main91651-40612

38 parts on this diagram · 2 diagrams in section
