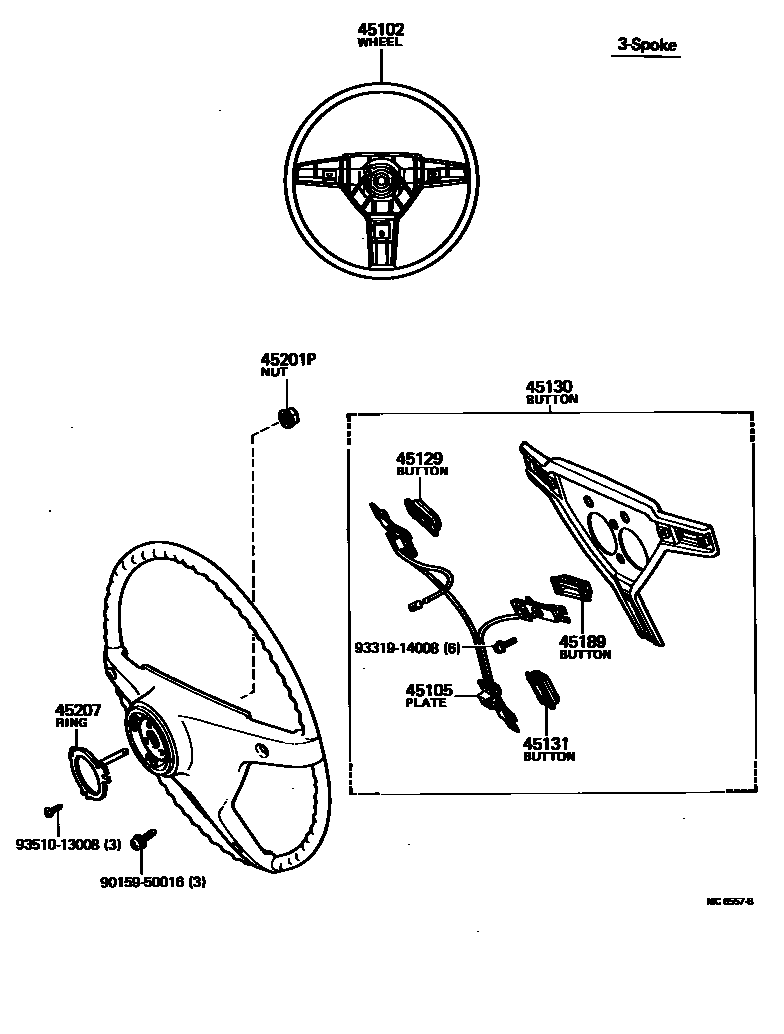

STEERING WHEEL

0001 1 0002 1 0003 1

45102WHEEL SUB-ASSY, STEERING

main45100-30190-02iLS110,MS110,112..HT..(CTE,ROY,SAL,SPE)197909-198108

DARK WINE,4-SPOKE,CASTWOOD,RED/MAROON,TRIM3#

main45100-30190-04iLS110,MS110,112..HT..(CTE,ROY,SAL,SPE)197909-198108

BLUE,4-SPOKE,CASTWOOD,BLUE,TRIM8#

main45100-30190-05iMS110..WG198010-198108

GREIGE,25TH ANNIVERSARY,BEIGE,TRIM4#

main45100-30200-02iMS110,112..SED..(ROY,SAL); MS110..4DH..DLX197909-198108

DARK WINE,4-SPOKE,RED/MAROON,TRIM3#

main45100-30200-04iLS11#,MS117..(V,WG)..(DLX,SDX); LS110,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX); MS110..4DH..DLX197909-198108

BLUE,4-SPOKE,BLUE,TRIM8#

main45100-30200-05iLS11#,MS117..(V,WG)..(DLX,SDX); LS110,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX); MS110..4DH..DLX197909-198108

GREIGE,4-SPOKE,BEIGE,TRIM4#

main45100-30210-01iLS110,RS110..TAX197909-198307

BLACK,3-SPOKE,BLACK,TRIM1#,4#

main45100-30210-02iMS110..4DH..DLX197909-198108

DARK WINE,3-SPOKE,RED/MAROON,TRIM3#

main45100-30210-03iGS117;GS110,LS110,117,MS110,RS110..BTP,DLX,STD198108-198307

GRAY,3-SPOKE,GRAY,TRIM1#

main45100-30210-04iMS117..DLX,SDX197909-198307

BLUE,3-SPOKE,BLUE,TRIM8#

main45100-30210-05iMS117;LS11#,MS110,RS110..BTP,DLX,STD197909-198108

GREIGE,3-SPOKE,BEIGE,TRIM4#

main45100-30210-15iGS117;GS110,LS110,117,MS110,RS110..BTP,DLX; MS117..DLX,SDX198108-198307

BEIGE,3-SPOKE,BEIGE,TRIM4#

main45100-30220-03iGS11#,LS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX)198108-198307

GRAY,2-SPOKE,GRAY,TRIM1#

main45100-30220-04iGS110,LS110,111,MS110,112..SED..(ROY,SAL)198108-198307

BLUE,2-SPOKE,BLUE,TRIM8#

main45100-30220-05iGS11#,LS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX)198108-198307

BEIGE,2-SPOKE,BEIGE,TRIM4#

main45100-30230-03iGS110,LS110,111,MS110,112..HT198108-198307

GRAY,2-SPOKE,GRAY,TRIM1#

main45100-30230-04iGS110,LS110,111,MS110,112..HT198108-198307

BLUE,2-SPOKE,BLUE,TRIM8#

main45100-30230-05iGS110,LS110,111,MS110,112..HT198108-198307

BEIGE,2-SPOKE,BEIGE,TRIM4#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-30060iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,DLX,STD,TAX197909-198307

3-SPOKE

main45105-30070iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE197909-198108

4-SPOKE

main90945-03036iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE198108-198307

2-SPOKE

45129BUTTON, HORN, NO.2

main45129-30070-01iLS110,RS110..TAX197909-198307

BLACK,3-SPOKE,BLACK,TRIM1#,4#

main45129-30070-03iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,DLX,STD198108-198307

GRAY,3-SPOKE,GRAY,TRIM1#

main45129-30070-04iLS11#,MS110,RS110..BTP,DLX; MS117..DLX,SDX197909-198108

BLUE,3-SPOKE,BLUE,TRIM8#

main45129-30070-05iMS117;LS11#,MS110,RS110..BTP,DLX,STD197909-198108

GREIGE,3-SPOKE,BEIGE,TRIM4#

main45129-30070-15iGS117;GS110,LS110,117,MS110,RS110..BTP,DLX; MS117..DLX,SDX198108-198307

BEIGE,3-SPOKE,BEIGE,TRIM4#

main45129-30090-02iMS110,112..SED..(ROY,SAL); MS110..4DH..DLX197909-198108

DARK WINE,LH,4-SPOKE,RED/MAROON,TRIM3#

main45129-30090-04iLS11#,MS117..(V,WG)..(DLX,SDX); LS110,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX); MS110..4DH..DLX197909-198108

BLUE,LH,4-SPOKE,BLUE,TRIM8#

main45129-30090-05iLS11#,MS117..(V,WG)..(DLX,SDX); LS110,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX); MS110..4DH..DLX197909-198108

GREIGE,LH,4-SPOKE,BEIGE,TRIM4#

main45129-30110-02iLS110,MS110,112..HT..(CTE,ROY,SAL,SPE)197909-198108

DARK WINE,LH,CASTWOOD,RED/MAROON,TRIM3#

main45129-30110-04iMS110..WG198010-198108

BLUE,LH,25TH ANNIVERSARY,BLUE,TRIM8#

main45129-30110-05iMS110..WG198010-198108

GREIGE,LH,25TH ANNIVERSARY,BEIGE,TRIM4#

main45131-30140-02iMS110,112..SED..(ROY,SAL); MS110..4DH..DLX197909-198108

DARK WINE,RH,4-SPOKE,RED/MAROON,TRIM3#

main45131-30140-04iLS11#,MS117..(V,WG)..(DLX,SDX); LS110,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX); MS110..4DH..DLX197909-198108

BLUE,RH,4-SPOKE,BLUE,TRIM8#

main45131-30140-05iLS11#,MS117..(V,WG)..(DLX,SDX); LS110,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX)197909-198108

GREIGE,RH,4-SPOKE,BEIGE,TRIM4#

main45131-30160-02iMS110..WG198010-198108

DARK WINE,RH,25TH ANNIVERSARY,RED/MAROON,TRIM3#

main45131-30160-04iLS110,MS110,112..HT..(CTE,ROY,SAL,SPE)197909-198108

BLUE,RH,CASTWOOD,BLUE,TRIM8#

main45131-30160-05iMS110..WG198010-198108

GREIGE,RH,25TH ANNIVERSARY,BEIGE,TRIM4#

45130BUTTON ASSY, HORN

main45130-30150-02iMS110..WG198010-198108

DARK WINE,25TH ANNIVERSARY,RED/MAROON,TRIM3#

main45130-30150-04iLS110,MS110,112..HT..(CTE,ROY,SAL,SPE)197909-198108

BLUE,4-SPOKE,CASTWOOD,BLUE,TRIM8#

main45130-30150-05iLS110,MS110,112..HT..(CTE,ROY,SAL,SPE)197909-198108

GREIGE,4-SPOKE,CASTWOOD,BEIGE,TRIM4#

main45130-30160-02iMS110,112..SED..(ROY,SAL); MS110..4DH..DLX197909-198108

DARK WINE,4-SPOKE,RED/MAROON,TRIM3#

main45130-30160-04iLS11#,MS117..(V,WG)..(DLX,SDX); LS110,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX); MS110..4DH..DLX197909-198108

BLUE,4-SPOKE,BLUE,TRIM8#

main45130-30160-05iLS11#,MS117..(V,WG)..(DLX,SDX); LS110,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX); MS110..4DH..DLX197909-198108

GREIGE,4-SPOKE,BEIGE,TRIM4#

main45130-30170-01iLS110,RS110..TAX197909-198307

BLACK,3-SPOKE,BLACK,TRIM1#,4#

main45130-30170-02iMS110..4DH..DLX197909-198108

DARK WINE,3-SPOKE,RED/MAROON,TRIM3#

main45130-30170-03iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,DLX,STD198108-198307

GRAY,3-SPOKE,GRAY,TRIM1#

main45130-30170-04iLS11#,MS110,RS110..BTP,DLX; MS117..DLX,SDX197909-198108

BLUE,3-SPOKE,BLUE,TRIM8#

main45130-30170-05iMS117;LS110,117,MS110,RS110..BTP,DLX,STD197909-198307

GREIGE,3-SPOKE,BEIGE,TRIM4#

main45130-30170-15iGS117;GS110,LS110,117,MS110,RS110..BTP,DLX; MS117..DLX198108-198307

BEIGE,3-SPOKE,BEIGE,TRIM4#

main45130-30180-03iGS11#,LS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX)198108-198307

GRAY,2-SPOKE,GRAY,TRIM1#

main45130-30180-04iGS110,LS110,111,MS110,112..SED..(ROY,SAL)198108-198307

BLUE,2-SPOKE,BLUE,TRIM8#

main45130-30180-05iGS11#,LS11#,MS11#,RS110..(SED,V,WG)..(BTP,DLX,ROY,SAL,SDX)198108-198307

BEIGE,2-SPOKE,BEIGE,TRIM4#

main45130-30190-03iGS110,LS110,111,MS110,112..HT198108-198307

GRAY,2-SPOKE,GRAY,TRIM1#

main45130-30190-04iGS110,LS110,111,MS110,112..HT198108-198307

BLUE,2-SPOKE,BLUE,TRIM8#

main45130-30190-05iGS110,LS110,111,MS110,112..HT198108-198307

BEIGE,2-SPOKE,BEIGE,TRIM4#

45131BUTTON, HORN, NO.1

main45129-30070-01iLS110,RS110..TAX197909-198307

BLACK,3-SPOKE,BLACK,TRIM1#,4#

main45129-30070-03iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,DLX,STD198108-198307

GRAY,3-SPOKE,GRAY,TRIM1#

main45129-30070-04iLS11#,MS110,RS110..BTP,DLX; MS117..DLX,SDX197909-198108

BLUE,3-SPOKE,BLUE,TRIM8#

main45129-30070-05iMS117;LS11#,MS110,RS110..BTP,DLX,STD197909-198108

GREIGE,3-SPOKE,BEIGE,TRIM4#

main45129-30070-15iGS117;GS110,LS110,117,MS110,RS110..BTP,DLX; MS117..DLX,SDX198108-198307

BEIGE,3-SPOKE,BEIGE,TRIM4#

main45129-30080-02iMS110,112..SED..(ROY,SAL); MS110..4DH..DLX197909-198108

DARK WINE,LH,4-SPOKE,RED/MAROON,TRIM3#

main45129-30080-04iLS11#,MS117..(V,WG)..(DLX,SDX); LS110,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX); MS110..4DH..DLX197909-198108

BLUE,LH,4-SPOKE,BLUE,TRIM8#

main45129-30080-05iLS11#,MS117..(V,WG)..(DLX,SDX); LS110,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX); MS110..4DH..DLX197909-198108

GREIGE,LH,4-SPOKE,BEIGE,TRIM4#

main45129-30100-02iLS110,MS110,112..HT..(CTE,ROY,SAL,SPE)197909-198108

DARK WINE,LH,CASTWOOD,RED/MAROON,TRIM3#

main45129-30100-04iLS110,MS110,112..HT..(CTE,ROY,SAL,SPE)197909-198108

BLUE,LH,CASTWOOD,BLUE,TRIM8#

main45129-30100-05iLS110,MS110,112..HT..(CTE,ROY,SAL,SPE)197909-198108

GREIGE,LH,CASTWOOD,BEIGE,TRIM4#

main45131-30130-02iMS110,112..SED..(ROY,SAL); MS110..4DH..DLX197909-198108

DARK WINE,RH,4-SPOKE,RED/MAROON,TRIM3#

main45131-30130-04iLS11#,MS117..(V,WG)..(DLX,SDX); LS110,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX); MS110..4DH..DLX197909-198108

BLUE,RH,4-SPOKE,BLUE,TRIM8#

main45131-30130-05iLS11#,MS117..(V,WG)..(DLX,SDX); LS110,MS110,112,RS110..SED..(BTP,DLX,ROY,SAL,SDX); MS110..4DH..DLX197909-198108

GREIGE,RH,4-SPOKE,BEIGE,TRIM4#

main45131-30140-04iLS11#,MS117..(V,WG)..(DLX,SDX)197909-198108

BLUE,RH,4-SPOKE,BLUE,TRIM8#

main45131-30150-02iLS110,MS110,112..HT..(CTE,ROY,SAL,SPE)197909-198108

DARK WINE,RH,CASTWOOD,RED/MAROON,TRIM3#

main45131-30150-04iMS110..WG198010-198108

BLUE,RH,25TH ANNIVERSARY,BLUE,TRIM8#

main45131-30150-05iMS110..WG198010-198108

GREIGE,RH,25TH ANNIVERSARY,BEIGE,TRIM4#

45189BUTTON, HORN, NO.3

main45131-30110-01iLS110,RS110..TAX197909-198307

BLACK,3-SPOKE,BLACK,TRIM1#,4#

main45131-30110-03iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,DLX,STD198108-198307

GRAY,3-SPOKE,GRAY,TRIM1#

main45131-30110-04iLS11#,MS110,RS110..BTP,DLX; MS117..DLX,SDX197909-198108

BLUE,3-SPOKE,BLUE,TRIM8#

main45131-30110-05iMS117;LS11#,MS110,RS110..BTP,DLX,STD197909-198108

GREIGE,3-SPOKE,BEIGE,TRIM4#

main45131-30110-15iGS117;GS110,LS110,117,MS110,RS110..BTP,DLX; MS117..DLX,SDX198108-198307

BEIGE,3-SPOKE,BEIGE,TRIM4#

45201PNUT, STEERING WHEEL SET

main90179-12086iGS11#,LS11#,MS11#,RS110197909-198307

45207RING, HORN CONTACT

main45176-30030iGS117,MS117;GS110,LS110,117,MS110,RS110..BTP,DLX,STD,TAX197909-198307

3-SPOKE

main45176-30060iLS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE197909-198108

4-SPOKE

main45176-30070iGS11#,LS11#,MS11#,RS110..BTP,CTE,DLX,ROY,SAL,SDX,SPE198108-198307

2-SPOKE

9015950016

main90159-50016

9331914008

main93319-14008

9351013008

main93510-13008

11 parts on this diagram · 3 diagrams in section
