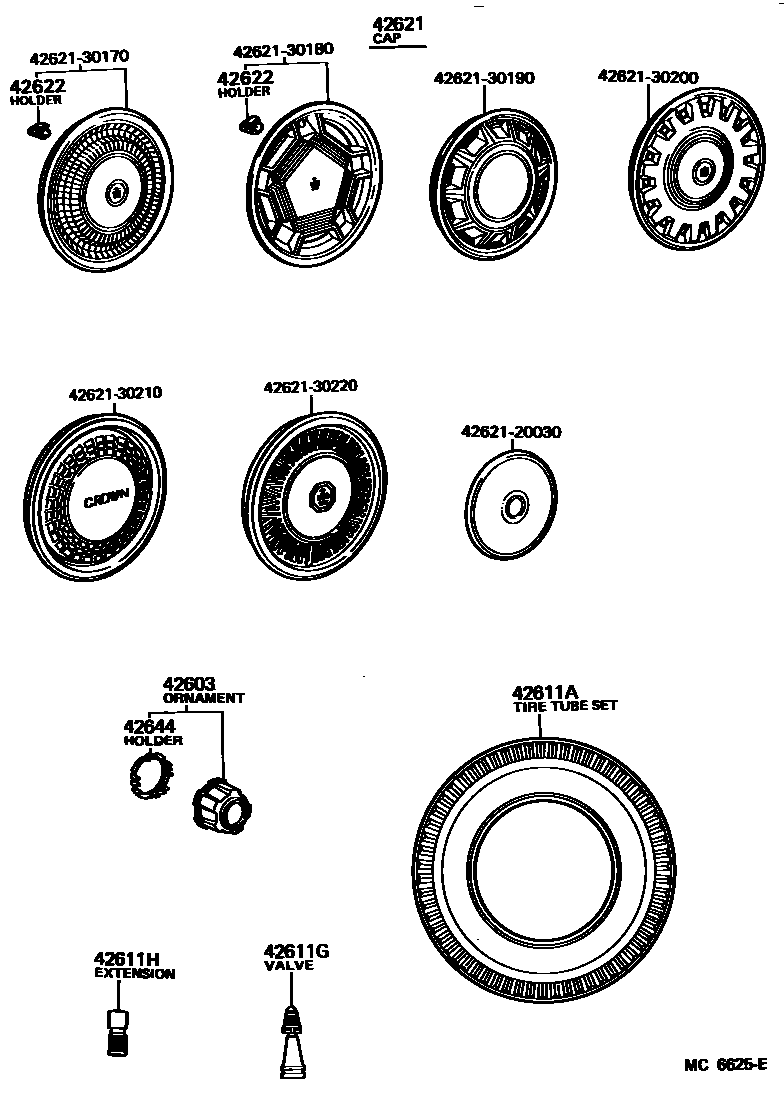

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-30041×4iMS110,112..SAL,SPE; MS110..WG198010-198108

25TH ANNIVERSARY

main42603-30060×4iGS110,LS110,MS110,112..ROY,SAL,SPE198108-198205

ALUMI WHEEL,DIE CAST

main42603-30061×4iGS110,LS110,111,MS110,112..ROY,SAL,SPE198205-198307

ALUMI WHEEL,RESIN

42611ATIRE TUBE SET OR TUBELESS TIRE

main42605-30030×4iGS110,LS110..WG198108-198307

185SR14,W/TUBE

main42605-30080×4iLS110,RS110..TAX198010-198108

6.40R14-6,W/TUBE

main42605-30090×4iGS117,MS117..SDX198108-198307

185R14,W/TUBE

main42605-30110×4iLS110,MS110,RS110..DLX,STD,TAX198205-198307

6.40-14-4,W/TUBE,*RP

main42605-30120×4iLS110,MS110,RS110..DLX,STD,TAX198205-198307

6.40-14-6,W/TUBE,*RP

main42605-31030×4iLS110197909-198010

6.95-14-6,W/TUBE

main42652-14230×4iGS110,MS110,112197909-198307

195/70HR14,TUBELESS

main42652-30050×4iLS110,MS110,112,RS110197909-198108

185SR14,TUBELESS

main42652-30080×4iGS110,LS110,111,MS110,112,RS110198108-198307

185SR14,TUBELESS

main42652-31010×4iLS110,MS110,RS110198010-198108

6.95-14-6,TUBELESS

main42652-31020×4iGS117,MS117..SDX198108-198307

185R14,TUBELESS

main98011-64142×4iLS110,MS110,RS110197909-198307

6.40-14-4,W/TUBE

main98011-64143×4iLS110,MS110,RS110197909-198205

6.40-14-6,W/TUBE

main98061-69144×4iGS117,LS117,MS117..DLX,STD197909-198307

6.95-14-8,W/TUBE

main98521-69142×4iLS110,MS110,RS110197909-198307

6.95-14-4,TUBELESS

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004×4iLS110,111,MS112,RS110..(BTP,CTE,DLX,ROY,SAL,SDX,SPE)..4D; MS110..BTP,CTE,DLX,SAL,SDX,SPE198010-198307

main90942-05009×4iMS110..4DH..DLX;LS110,MS110,112..CTE,ROY,SAL,SPE197909-198108

ALUMI WHEEL

42611HEXTENSION, VALVE

main90942-05006×4iGS117,MS117..SDX198108-198307

42621CAP, WHEEL

main42621-20030×4iGS117,LS110,117,MS110,117,RS110..STD,TAX197909-198307

main42621-30170×4iMS112..ROY..4D197909-198307

main42621-30180×4iLS110,MS110,112..HT..(CTE,SAL,SPE)197909-198108

185SR14

main42621-30190×4iGS110,LS110,117,MS110,117,RS110..BTP,DLX; MS117..SDX198108-198307

main42621-30200×4iMS110,112..SAL..4D197909-198108

main42621-30210×4iGS110,LS110,111,MS110..(SED,WG)..(SAL,SDX)198108-198307

main42621-30220×4iGS110,LS110,111,MS110..HT198108-198307

42622HOLDER, WHEEL CAP

main42622-30050×4iLS110,MS110,112..HT..(CTE,SAL,SPE)197909-198108

185SR14

42644HOLDER, WHEEL HUB ORNAMENT

main42644-30010×4iMS110..HT198108-198307

main42644-30040×4iMS110..4DH..DLX;LS110,MS110,112..CTE,ROY,SAL,SPE197909-198108

ALUMI WHEEL

main42644-30050×4iGS110,LS110,111,MS110,112..ROY,SAL,SPE198205-198307

ALUMI WHEEL

4262120030CAP, WHEEL

main42621-20030

4262130170CAP, WHEEL

main42621-30170

4262130180CAP, WHEEL

main42621-30180

4262130190CAP, WHEEL

main42621-30190

4262130200CAP, WHEEL

main42621-30200

4262130210CAP, WHEEL

main42621-30210

4262130220CAP, WHEEL

main42621-30220

14 parts on this diagram · 2 diagrams in section
