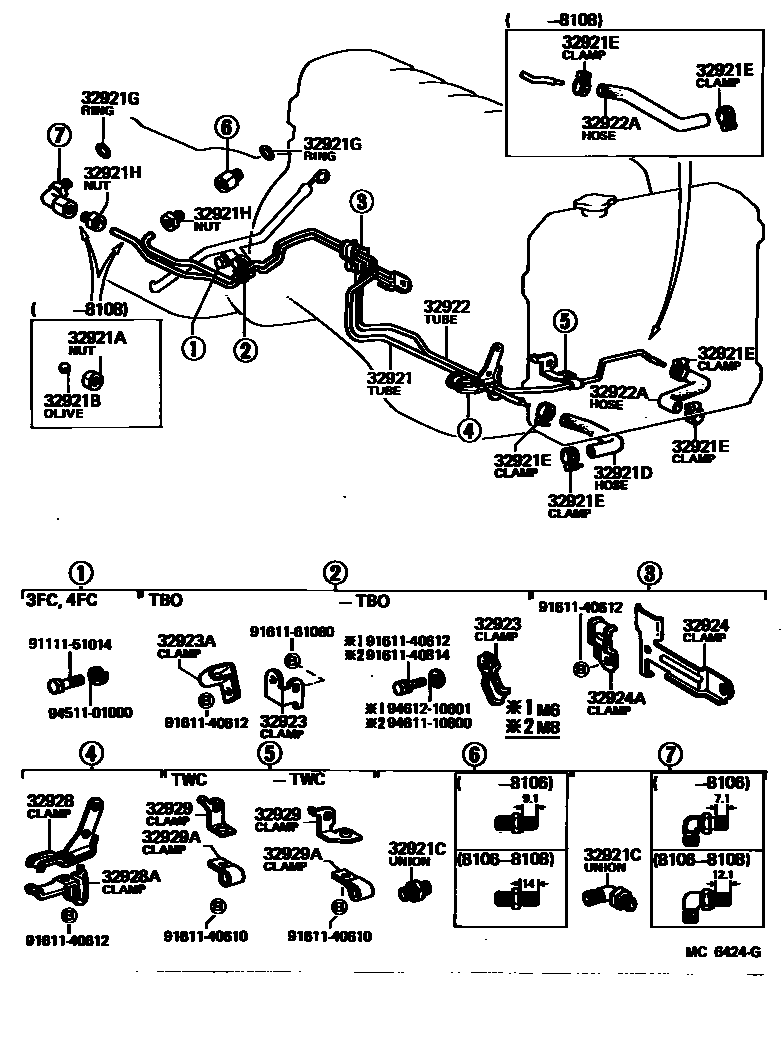

OIL COOLER & TUBE (ATM)

0001 1 0002 1 0003 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-30160iMS110..ATM..(CBR,LPG)197909-198108

main32921-30170iMS110..ATM..EFI197909-198108

main32921-30180iLS11#..ATM197909-198108

main32921-30190iMS112..ATM197909-198108

main32921-30200iMS110..TBO198010-198108

main32921-30210iMS110..ATM..LPG198108-198307

main32921-30220iGS110..ATM198108-198307

main32921-30230iMS110..TBO198108-198307

main32921-30240iMS112..ROY198108-198307

main32921-30250iLS110,117..ATM198108-198307

main32921-30260iLS111..TDE198208-198307

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-13041×2iLS11#,MS110,112..ATM197909-198108

32921BOLIVE(FOR OIL COOLER TUBE)

main96395-71400×2iLS11#,MS110,112..ATM197909-198108

32921CUNION(FOR OIL COOLER TUBE)

main90404-13003iLS11#,MS110,112..ATM198106-198108

INLET

main90404-13265iLS11#,MS110,112..ATM197909-198106

INLET

main90404-14007iGS110,LS11#,MS110,112..ATM198108-198307

INLET

main90407-13002iLS11#,MS110,112..ATM197909-198106

OUTLET

main90407-13005iLS11#,MS110,112..ATM198106-198108

OUTLET

main90407-14003iGS110,LS11#,MS110,112..ATM198108-198307

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-22010iMS110,112..ATM197909-198307

main32941-30030iGS110..ATM198108-198307

main32942-22010iLS11#..ATM197909-198307

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-14085×4iGS110,LS11#,MS110,112..ATM197909-198307

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iGS110,LS11#,MS110,112..ATM197909-198307

32921HNUT, FLARE(FOR OIL COOLER TUBE)

main90402-14004×2iGS110,LS11#,MS110,112..ATM198108-198307

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-30160iMS110..ATM..(CBR,LPG)197909-198010

main32922-30161iMS110..ATM..(CBR,LPG)198010-198108

main32922-30170iMS110..ATM..EFI197909-198010

main32922-30171iMS110..ATM..EFI198010-198108

main32922-30180iLS11#..ATM197909-198010

main32922-30181iLS11#..ATM198010-198108

main32922-30190iMS112..ATM197909-198010

main32922-30191iMS112..ATM198010-198108

main32922-30201iMS110..TBO198010-198108

main32922-30210iMS110..ATM..LPG198108-198307

main32922-30220iGS110..ATM198108-198307

main32922-30230iMS110..TBO198108-198307

main32922-30240iMS112..ROY198108-198307

main32922-30250iLS110,117..ATM198108-198307

main32922-30260iLS111..TDE198208-198307

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-22010iGS110..ATM198108-198307

main32942-22010iLS11#..ATM197909-198307

main32942-30020iMS110,112..ATM198108-198307

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-14010iMS110..TBO198010-198307

main32923-30080iGS110,MS110,112..ATM..(CBR,EFI,LPG,TWC)197909-198307

main32923-30090iLS11#..ATM197909-198307

32923ACLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main90461-08292iMS110..TBO198010-198307

main90462-12085iLS11#..ATM197909-198307

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-30080iMS110,112..ATM197909-198307

main32924-30090iLS11#..ATM197909-198307

main32924-30100iGS110..ATM198108-198307

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main32929-30060iMS110,112..ATM197909-198307

main32929-30090iGS110..ATM198108-198307

main90462-12085iLS11#..ATM197909-198307

32928CLAMP, FLEXIBLE HOSE, NO.1

main15781-45012iMS110,112..ATM197909-198307

main32928-24010iGS110..ATM198108-198307

main32928-30040iLS11#..ATM197909-198208

main32928-30060iLS11#..ATM198208-198307

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main32928-30050iLS11#..ATM197909-198307

main90461-12028iMS110,112..ATM197909-198307

main90462-12085iGS110..ATM198108-198307

32929CLAMP, FLEXIBLE HOSE, NO.2

main32929-14010iMS110,112..ATM..(EFI,LPG,TBO)198108-198307

main32929-24010iGS110..ATM198108-198307

main32929-24020iMS112..TWC198108-198307

main32929-24030iGS110..ATM198108-198307

W/COOLER

main32929-30050iLS110,117..ATM197909-198307

32929ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90461-06033iGS110,MS110,112..ATM198108-198307

main90462-12085iLS11#..ATM197909-198307

9111151014

main91111-51014

9161140610

main91611-40610

9161140612

main91611-40612

9161140814

main91611-40814

9161161060

main91611-61060

9451101000

main94511-01000

9461110800

main94611-10800

9461210601

main94612-10601

26 parts on this diagram · 3 diagrams in section
