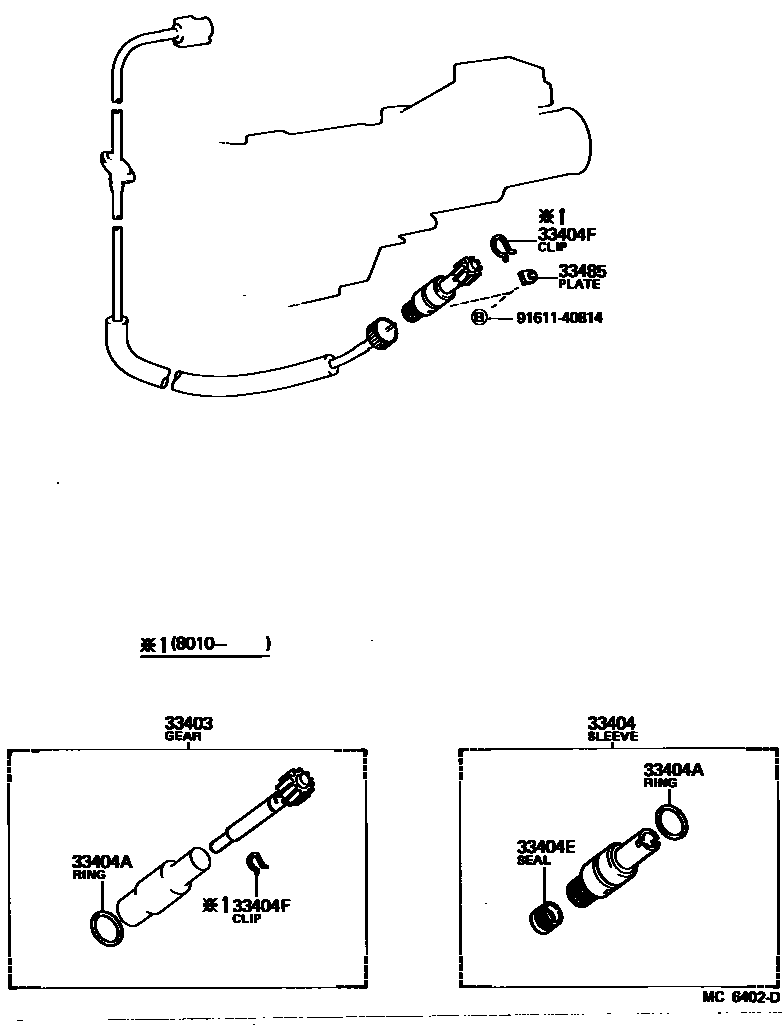

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19235iMS117..SDX198108-198307

main33403-29016iMS110,117..(4H,5F)..(CBR,EFI)197909-198010

N=19

main33403-29065iRS110..3H197909-198108

N=20

main33403-29115iLS110..4F198108-198307

main33403-29135iRS110..5F198108-198307

main33403-29145iLS111..TD198208-198307

main33403-39016iMS110..LPG;MS110,117..4F197909-198010

N=18

main33403-39065iLS117,MS117..(4F,5F)..DLX198108-198307

main33403-39075iLS110..5F198108-198307

main33403-69026iLS110..4H..BTP197909-198010

N=19,DIFF R=4.100

main33403-69026iRS110..TAX197909-198108

N=19

main33403-69065iLS110..4F197909-198108

main33482-29045iMS110..5F198010-198307

main33482-29055iLS110..4H..BTP198010-198108

main33482-39015iRS110..4H..TAX197909-198010

N=21

main33482-39025iRS110..4H198108-198307

main33482-39025iRS110..TAX198010-198108

main33482-39035iRS110..4H..TAX198010-198108

main33482-39045iLS110..4H..(STD,TAX)198010-198307

main33482-39085iLS11#..(SED,V)..5F..(BTP,DLX)198010-198307

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-22010iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

main33404-30040iLS11#,MS11#,RS110..MTM197909-198010

W/O ESC

main33404-35010iLS11#,MS11#,RS110..MTM198010-198307

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iLS11#,MS11#,RS110..MTM197909-198108

W/O ESC

main90301-18018iGS11#,LS110,117,MS110,117,RS110..4H198108-198307

main96710-02030iGS110,LS11#,MS110,117,RS110..4F,5F198108-198111

sub96711-24030

main96711-24030iGS11#,LS11#,MS110,117,RS110..4F,5F198111-198307

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iGS11#,LS11#,MS11#,RS110..MTM197909-198307

W/O ESC

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iGS11#,LS11#,MS11#,RS110..MTM198010-198307

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iGS11#,LS11#,MS11#,RS110..MTM197909-198307

9161140814

main91611-40814

7 parts on this diagram · 1 diagram in section
