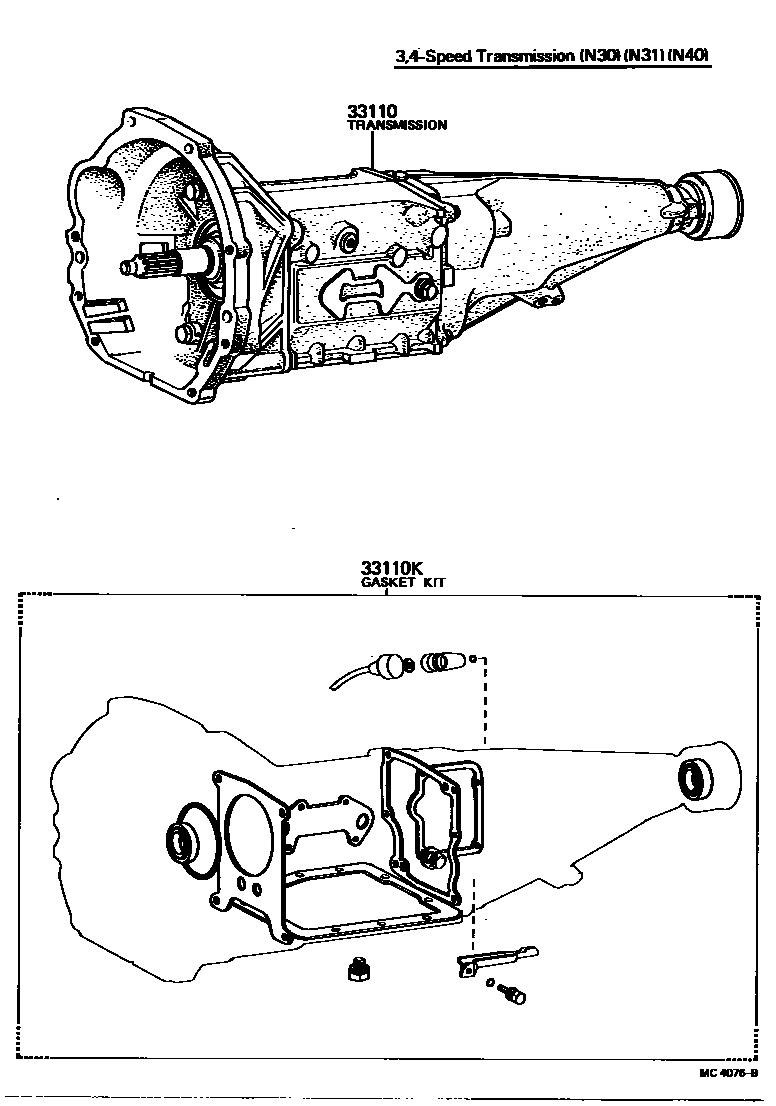

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33110TRANSMISSION ASSY, MANUAL

main33030-20680iRS110..STD198010-198108

SMG=6

main33030-20700iRS110..4H..STD198108-198307

SMG=6

main33030-22320iMS112..5F197911-198108

SMG=6

main33030-22452iLS110..5F..(CTE,SDX)197911-198010

SMG=6

main33030-22591iLS111..TD198208-198307

SMG=10

main33030-30081iMS110..5F197909-198108

SMG=5

main33030-30140iMS110,117..4H..(CBR,EFI)197909-198010

SMG=5

main33030-30162iRS110..BTP,DLX197909-198010

SMG=5

main33030-30252iRS110..4H..TAX197909-198010

SMG=6,DIFF R=4.556

main33030-30272iRS110..3H197909-198010

SMG=6

main33030-30283iLS110..4H197909-198010

SMG=6

main33030-30300iMS110,117..4F197909-198108

SMG=5

main33030-30312iLS110..4F197909-198108

SMG=6

main33030-30380iMS110..4H..LPG197912-198010

SMG=5

main33030-30401iLS117..STD197909-198010

SMG=5

main33030-30420iMS112..5F197909-197911

SMG=6

main33030-30431iLS110..5F..(CTE,SDX)197909-197911

SMG=6

main33030-30440iRS110..4H..TAX197909-198010

SMG=6,DIFF R=4.100

main33030-30460iMS110..5F..SAL197909-198004

SMG=5,W/ESC

main33030-30470iMS112..5F197909-198004

SMG=6,W/ESC

main33030-30481iLS11#..(SED,V)..5F..(BTP,DLX)198010-198108

SMG=5

main33030-30540iMS110,117..4H..(CBR,EFI)198010-198307

SMG=5

main33030-30550iLS117..STD198010-198307

SMG=5

main33030-30560iLS110..4H..STD198010-198307

SMG=6

main33030-30580iRS110..3H..TAX198010-198108

SMG=6

main33030-30590iMS110..LPG198010-198307

SMG=5

main33030-30600iLS110..TAX198010-198307

SMG=6

main33030-30610iLS110..4H..BTP198010-198108

SMG=5

main33030-30620iRS110..BTP,DLX198010-198108

SMG=5

main33030-30630iRS110..4H..TAX198010-198108

SMG=6,DIFF R=4.556

main33030-30640iRS110..4H..TAX198010-198307

SMG=6,DIFF R=4.100

main33030-30660iGS11#..4H198108-198307

SMG=5

main33030-30760iMS110,117..4F198108-198307

SMG=10

main33030-30771iLS110..4F198108-198307

SMG=11

main33030-30810iRS110..5F198108-198307

SMG=10

main33030-30820iGS11#..5F198108-198307

SMG=10

main33030-30831iLS110,117..5F198108-198307

SMG=10

33110KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-20040iGS11#,LS110,117,MS110,117,RS110..3H,4H198010-198307

main04331-20050iGS11#,LS11#,MS110,117,RS110..4F,5F198108-198307

main04331-22021iLS11#..4F,4H; MS110,117..4F197909-198010

main04331-22030iLS11#,MS110,112..5F197909-198108

main04331-30061iMS110,117..4H..(CBR,EFI)197909-198010

main04331-30071iMS110..4H..LPG197912-198010

main04331-30081iRS110..3H197909-198010

2 parts on this diagram · 6 diagrams in section
