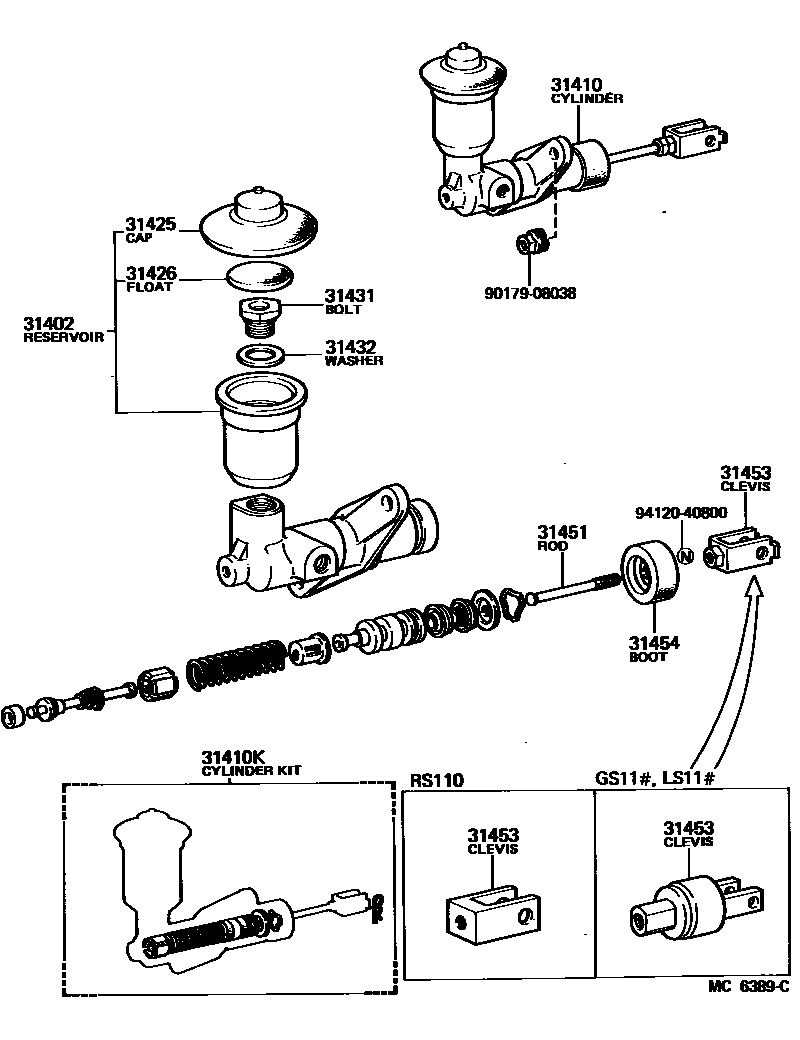

CLUTCH MASTER CYLINDER

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-30030iLS11#,MS11#,RS110..MTM198102-198105

main47202-12050iLS11#,MS11#,RS110..MTM197909-198102

31410CYLINDER ASSY, CLUTCH MASTER

main31410-30090iMS110,117..MTM198108-198307

main31410-30100iRS110198108-198307

main31410-30110iLS11#..MTM..(BTP,CTE,DLX,SDX,STD)197909-198102

main31410-30140iMS112..5F197909-198108

main31410-30150iRS110197909-198108

main31410-30160iLS110..TAX197909-198108

main31410-35110iGS11#,LS11#..MTM198108-198307

31410KCYLINDER KIT, CLUTCH MASTER

main04311-14010iMS11#,RS110..MTM197909-198212

main04311-14011iMS11#,RS110..MTM198212-198307

main04311-30080iGS11#,LS11#..MTM197909-198307

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iGS11#,LS11#,MS11#,RS110..MTM197909-198307

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iGS11#,LS11#,MS11#,RS110..MTM197909-198307

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iGS11#,LS11#,MS11#,RS110..MTM197909-198307

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iGS11#,LS11#,MS11#,RS110..MTM197909-198307

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22050iMS11#,RS110..MTM197909-198307

main31451-30060iGS11#,LS11#..MTM197909-198307

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-30040iGS11#,LS11#..MTM197909-198307

main31453-30070iMS11#..MTM197909-198307

main31453-30080iRS110197909-198307

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iGS11#,LS11#,MS110,117,RS110..MTM198108-198307

main31454-30050iLS11#,MS11#,RS110..MTM197909-198108

9017908038

main90179-08038

9412040800

main94120-40800

12 parts on this diagram · 1 diagram in section
