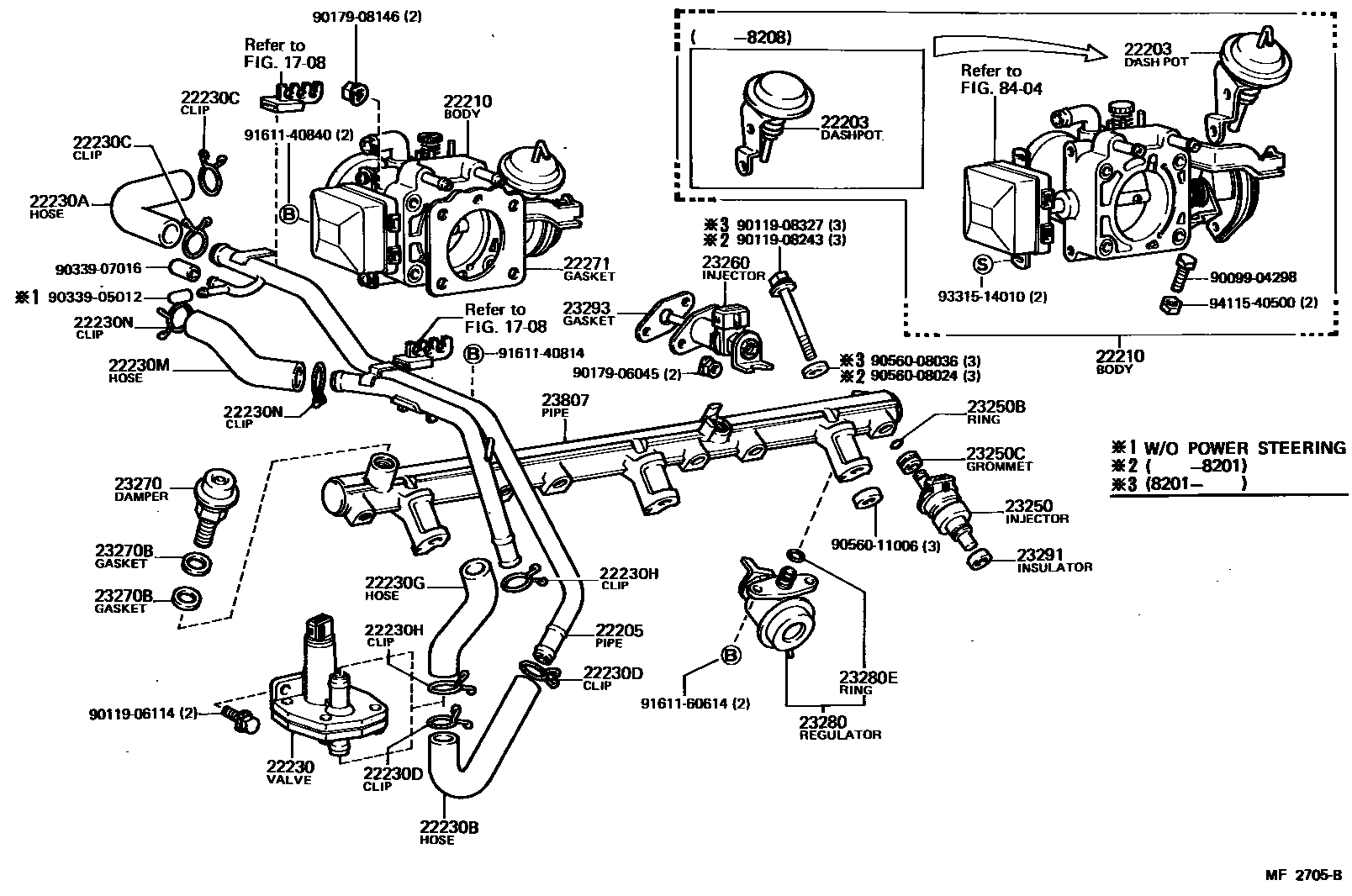

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

1708

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22203-41020iMEU,5MEU,MTEU..MS110,112197909-198307

sub22203-70010

main22203-41040iMTEU..MS110198108-198307

main22203-43010i5MGEU..MS112198108-198307

main22203-70010i1GEU..GS110198108-198208

main22203-70011i1GE#..GS11#198208-198307

22205PIPE SUB-ASSY, AUXILIARY AIR

main22205-70020i1GE#..GS11#198108-198307

22210BODY ASSY, THROTTLE

main22210-41191iMEU..MS110197909-198108

main22210-41220iMTEU..MS110198010-198106

sub22210-41221

main22210-41221iMTEU..MS110198106-198108

main22210-41222iMTEU..MS110198108-198307

main22210-43011i5MEU..MS112197909-198307

main22210-43120i5MGEU..MS112198108-198307

main22210-70010i1GEU..GS110198108-198208

main22210-70011i1GE#..GS11#198208-198307

sub22210-70012

22230VALVE ASSY, AUXILIARY AIR

main22230-41040iMEU..MS110197909-198108

main22230-41050iMTEU..MS110198010-198307

main22230-45010i5MEU..MS112197909-198307

main22230-70020i1GEU..GS110198108-198207

sub22230-70021

main22230-70021i1GE#..GS11#198207-198307

22230AHOSE, AUXILIARY AIR VALVE, NO.1

main17343-41020iMEU,5MEU..MS110,112197909-198307

main17343-41030iMTEU..MS110198010-198307

main22233-70020i1GE#..GS11#198108-198307

22230BHOSE, AUXILIARY AIR VALVE, NO.2

main17344-41010iMEU,5MEU,MTEU..MS110,112197909-198307

main22234-70010i1GE#..GS11#198108-198307

22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1

main90467-20002i1GE#..GS11#198108-198307

main90467-21152iMEU,5MEU,MTEU..MS110,112197909-198307

22230DCLIP, AUXILIARY AIR VALVE HOSE, NO.2

main90467-20002i1GE#..GS11#198108-198307

main90467-21152iMEU,5MEU,MTEU..MS110,112197909-198307

22230GHOSE, AUXILIARY AIR VALVE, NO.3

main22237-70010i1GE#..GS11#198108-198307

22230HCLIP, AUXILIARY AIR VALVE HOSE, NO.3

main90467-20002i1GE#..GS11#198108-198307

22230MHOSE, AUXILIARY AIR VALVE, NO.4

main22237-70010i1GE#..GS11#198108-198307

22230NCLIP, AUXILIARY AIR VALVE, NO.4

main90467-20002i1GE#..GS11#198108-198307

22271GASKET, THROTTLE BODY

main22271-41030iMEU,5MEU,MTEU..MS110,112197909-198307

main22271-43010i5MGEU..MS112198108-198307

sub22271-43030

main22271-70010i1GE#..GS11#198108-198307

23250INJECTOR ASSY, FUEL

main23250-41041iMEU,5MEU,MTEU..MS110,112197909-198104

sub23250-45011

main23250-45011iMEU,5M#,MTEU..MS110,112198104-198307

main23250-70010i1GE#..GS11#198108-198307

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i1GE#..GS11#197909-198307

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005iMEU,5M#,MTEU..MS110,112197909-198307

23260INJECTOR ASSY, COLD START FUEL

main23260-41050iMTEU..MS110198010-198108

main23260-41051iMTEU..MS110198108-198307

main23260-43010i5MGEU..MS112198108-198307

sub23260-49065

main23260-45010iMEU,5MEU..MS110,112197909-198307

sub23260-49085

main23260-70020i1GE#..GS11#198108-198307

sub23260-79025

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-41010iMEU,5MEU..MS110,112197909-198008

main23270-70010i1GE#..GS11#198008-198307

23270BGASKET(FOR PULSATION DAMPER HOSE)

main90430-14002i1GE#..GS11#198108-198307

ID=14.2

main90430-17002i1GE#..GS11#197909-198307

ID=17.3

23280REGULATOR ASSY, FUEL PRESSURE

main23280-41030iMEU,5MEU,MTEU..MS110,112197909-198307

main23280-43010i5MGEU..MS112198108-198307

main23280-70020i1GE#..GS11#198108-198307

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i1GE#..GS11#198108-198307

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1GE#..GS11#197909-198307

23293GASKET, COLD START INJECTOR

main23293-34020iMEU,5MEU,MTEU..MS110,112197909-198307

sub23293-43020

main23293-43010i5MGEU..MS112198108-198307

sub23293-43030

main23293-70010i1GE#..GS11#198108-198307

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-45011iMEU,5MEU..MS110,112197909-198008

main23807-45020iMEU,5MEU,MTEU..MS110,112198008-198307

main23807-70020i1GE#..GS11#198108-198307

main23814-43010i5MGEU..MS112198108-198307

8404

9009904298

main90099-04298

9011906114

main90119-06114

9011908243

main90119-08243

9011908327

main90119-08327

9017906045

main90179-06045

9017908146

main90179-08146

9033905012

main90339-05012

9033907016

main90339-07016

9056008024

main90560-08024

9056008036

main90560-08036

9056011006

main90560-11006

9161140814

main91611-40814

9161140840

main91611-40840

9161160614

main91611-60614

9331514010

main93315-14010

9411540500

main94115-40500
