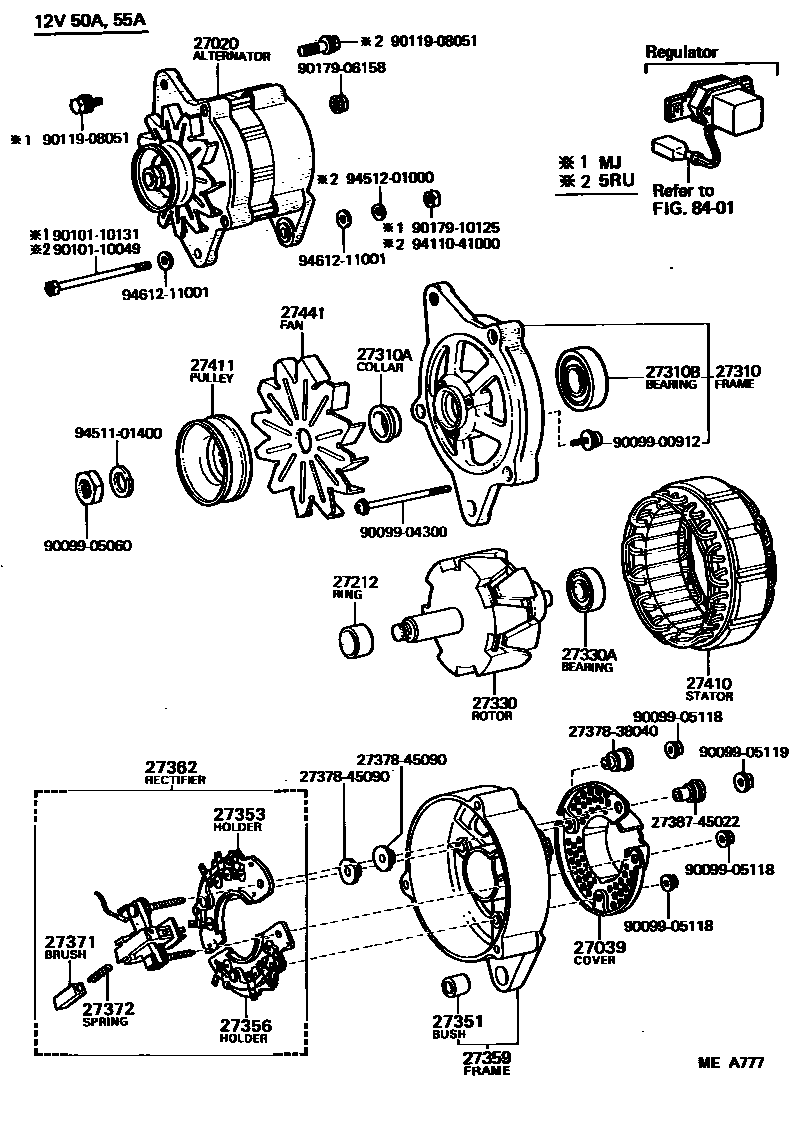

ALTERNATOR

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

27020ALTERNATOR ASSY

main27020-41082iMU..MS110..CBR197909-198108

12V 55A

main27020-44071i5RU..RS110..STD,TAX197909-198108

12V 50A

main27020-44081i5RU..RS110197909-198108

12V 55A

main27020-45072iMJ..MS117197909-198208

12V 55A

main27020-45140iMEU,5MEU,MTEU,MU..MS110,112..EFI,LPG,TBO197909-198108

12V 60A

main27020-54012iL..LS110,117197909-198307

main27020-54060iL..LS11#197909-198108

12V 55A,IC REGULAT.(COLD SPEC)

main27020-54080iL..LS110,117198108-198307

12V 55A,IC REGULAT.(COLD SPEC)

main27020-54170i2LT..LS111198208-198307

12V 60A

main27020-54180i2LTE..LS111198208-198307

main27060-43010iMU..MS110..CBR198108-198307

12V 55A

main27060-43020i5MEU,MTEU,MU..MS110,112..EFI,LPG,TBO198108-198307

main27060-43030i5MGEU..MS112198108-198307

main27060-44010i5RU..RS110198108-198307

12V 55A

main27060-70040i1GEU..GS110198108-198307

main27060-70060i1GEJ..GS117198208-198307

12V 55A

27039COVER, ALTERNATOR REAR END

main27039-44070i5RU..RS110197909-198108

12V 50A,55A

main27039-45110iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198108

12V 55A,60A

main27039-56090iL..LS11#197909-198108

12V 55A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27333-57060i2LT#..LS111198208-198307

12V 60A

main27412-45070iMEU,1GE#,MJ,5M#,5RU,MTEU,MU..GS11#,MS11#,RS110197909-198307

12V 50A,55A,60A,65A

main27412-54040iL..LS110,117197909-198307

12V 55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-34050i5RU..RS110197909-198108

12V 50A,55A

main27310-38061i5RU..RS110198108-198307

12V 55A

main27310-43040i5MGEU..MS112198108-198307

12V 65A

main27310-45071iMJ..MS117197909-198208

12V 55A

main27310-45110i5MEU,MTEU,MU..MS110,112198207-198307

12V 55A,60A

main27310-54011iL..LS11#197909-198012

12V 55A

main27310-54012iL..LS11#198012-198108

12V 55A

main27310-54080iL..LS110,117198108-198307

12V 55A,IC REGULATOR

main27310-54130i2LT#..LS111198208-198307

12V 60A

main27310-61070i5MEU,MTEU,MU..MS110,112198108-198207

12V 55A,60A

main27310-70030i1GE#..GS11#198108-198307

12V 55A,65A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040iMEU,1GE#,MJ,5M#,5RU,MTEU,MU..GS11#,MS11#,RS110197909-198307

12V 50A,55A,60A,65A

main27412-57060i2LT#..LS111198208-198307

12V 60A

main90099-19251iL..LS110,117197909-198307

12V 55A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10115iMEU,MJ,5MEU,5RU,MU..MS11#,RS110197909-198008

12V 50A,55A,60A

main90099-10120iL..LS110,117197909-198307

12V 55A

main90099-10125iMEU,1GE#,MJ,5M#,5RU,MTEU,MU..GS11#,MS11#,RS110198008-198307

12V 55A,60A,65A

main90099-10126i5RU..RS110198008-198108

12V 50A

main90099-10137i2LT#..LS111198208-198307

12V 60A

27330ROTOR ASSY, ALTERNATOR

main27330-15070i1GEJ,5MEU,5RU,MTEU,MU..GS117,MS110,112,RS110198108-198307

12V 55A,60A

main27330-43040i1GEU,5MGEU..GS110,MS112198108-198307

12V 65A

main27330-45070iMJ..MS117198108-198208

12V 55A

main27330-45090iMEU,5MEU,MTEU,MU..MS110,112197909-198108

12V 55A,60A

main27330-54011iL..LS110,117197909-198307

12V 55A,STANDARD REGULATOR

main27330-54060iL..LS110,117197909-198307

12V 55A,IC REGULATOR

main27330-64030i2LT#..LS111198208-198307

12V 60A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10111i5RU..RS110197909-198108

12V 50A,55A

main90099-10116iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198108

12V 55A,60A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051iMEU,MJ,5M#,5RU,MTEU,MU..MS11#,RS110197909-198307

12V 50A,55A,60A,65A

main27351-56013iL,2LT#..LS11#197909-198307

12V 55A,60A

main27351-70010i1GE#..GS11#198108-198307

12V 55A,65A

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-34021iMJ,5RU..MS117,RS110197909-198108

12V 55A

main27353-34051i5RU..RS110..STD,TAX197909-198108

12V 50A

main27353-54010iL..LS110,117197909-198307

12V 55A,STANDARD REGULATOR

main27353-54060iL..LS11#197909-198108

12V 55A,IC REGULATOR

main27353-54180i2LTE..LS111198208-198307

12V 60A

main27353-57070iL..LS110,117198108-198307

12V 55A,IC REGULATOR

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-34021iMJ,5RU..MS117,RS110197909-198108

12V 55A

main27356-34051i5RU..RS110..STD,TAX197909-198108

12V 50A

main27356-54010iL..LS110,117197909-198307

12V 55A,STANDARD REGULATOR

main27356-54060iL..LS11#197909-198108

12V 55A,IC REGULATOR

main27356-54170i2LT..LS111198208-198307

12V 60A

main27356-54180i2LTE..LS111198208-198307

12V 60A

main27356-57070iL..LS110,117198108-198307

12V 55A,IC REGULATOR

27359FRAME, ALTERNATOR RECTIFIER END

main27359-24100iMJ..MS117198108-198208

12V 55A

main27359-28030i5RU..RS110198108-198307

12V 55A

main27359-43020i5M#,MTEU,MU..MS110,112198108-198307

12V 55A,60A,65A

main27359-45122iMU..MS110..CBR197909-198108

12V 55A

main27359-45140iMEU,5MEU,MTEU,MU..MS110,112..EFI,LPG,TBO197909-198108

12V 60A

main27359-70030i1GE#..GS11#198108-198307

12V 55A,65A

27362RECTIFIER ASSY, W/BRUSH

main27362-15070i1GEJ..GS117198208-198307

12V 55A

main27362-34020iMJ,5RU..MS117,RS110197909-198008

12V 55A

main27362-34021iMJ..MS117198008-198208

12V 55A

main27362-34050i5RU..RS110..STD,TAX197909-198008

12V 50A

main27362-41080iMU..MS110..CBR197909-198008

12V 55A

main27362-43020iMU..MS110..CBR198108-198307

12V 55A

main27362-43040i1GEU,5M#,MTEU,MU..GS110,MS110,112..EFI,LPG,TBO,TWC198108-198307

12V 60A

main27362-44072i5RU..RS110..STD,TAX198008-198108

12V 50A

main27362-44082i5RU..RS110198008-198108

12V 55A

main27362-44130i5RU..RS110198108-198307

12V 55A

main27362-45120iMEU,5MEU,MU..MS110,112..EFI,LPG197909-198008

12V 60A

main27362-70010iMU..MS110..CBR198008-198011

12V 55A

main27362-70011iMU..MS110..CBR198011-198108

12V 55A

main27362-70020iMEU,5MEU,MTEU,MU..MS110,112..EFI,LPG,TBO198008-198011

12V 60A

main27362-70021iMEU,5MEU,MTEU,MU..MS110,112..EFI,LPG,TBO198011-198108

12V 60A

27371BRUSH, ALTERNATOR

main27371-31011×2iMEU,1GE#,MJ,5M#,MTEU,MU..GS11#,MS11#198008-198307

12V 55A,60A,65A

main27371-44070×2iMEU,MJ,5MEU,5RU,MU..MS11#,RS110197909-198008

12V 50A,55A,60A

main27371-44071×2i5RU..RS110198008-198307

12V 50A,55A

main27371-56070×2iL,2LT#..LS11#197909-198307

12V 55A,60A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2iMEU,1GE#,MJ,5M#,MTEU,MU..GS11#,MS11#198008-198307

12V 55A,60A,65A

main27372-56070×2iL,2LT#..LS11#197909-198307

12V 55A,60A

main90099-17114×2iMEU,MJ,5MEU,MU..MS11#197909-198008

12V 55A,60A

27410STATOR ASSY, ALTERNATOR

main27410-41080i5RU..RS110..STD,TAX197909-198108

12V 50A

main27410-43040i1GEU,5MGEU..GS110,MS112198108-198307

12V 65A

main27410-45120iMJ..MS117198108-198208

12V 55A

main27410-54010iL..LS11#197909-198108

12V 55A,STANDARD REGULATOR

main27410-54060iL..LS11#197909-198108

12V 55A,IC REGULATOR

main27410-54180i2LTE..LS111198208-198307

12V 60A

main27410-57070iL..LS110,117198108-198307

12V 55A,W/O REGULATOR-IC TYPE

main27410-64010iL..LS110,117198108-198307

12V 55A,STANDARD REGULATOR

27411PULLEY, ALTERNATOR

main27411-41071iMEU,MJ,5M#,MTEU,MU..MS11#197909-198307

12V 55A,60A,65A

main27411-45010i1GE#,5RU..GS11#,RS110198108-198307

12V 55A,65A

main27411-54020iL..LS110,117197909-198307

12V 55A

main27411-54170i2LT#..LS111198208-198307

12V 60A

27441FAN, ALTERNATOR

main27441-34030iMJ..MS117198108-198208

12V 55A

main27441-44050i5MGEU..MS112198108-198307

12V 65A

main27441-45110iMEU,5MEU,MTEU,MU..MS110,112197909-198108

12V 55A,60A

main27441-54040iL..LS110,117198108-198307

12V 55A,STANDARD REGULATOR

main27441-54070iL..LS110,117198108-198307

12V 55A,IC REGULATOR

main27441-64030i2LT#..LS111198208-198307

12V 60A

main27441-70040i1GEU..GS110198108-198307

12V 65A

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

2737838040INSULATOR, ALTERNATOR, NO.1

main27378-38040

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9010110131

main90101-10131

9011908051

main90119-08051

9017906158

main90179-06158

9017910125

main90179-10125

9411041000

main94110-41000

9451101400

main94511-01400

9451201000

main94512-01000

9461211001

main94612-11001

36 parts on this diagram · 7 diagrams in section
