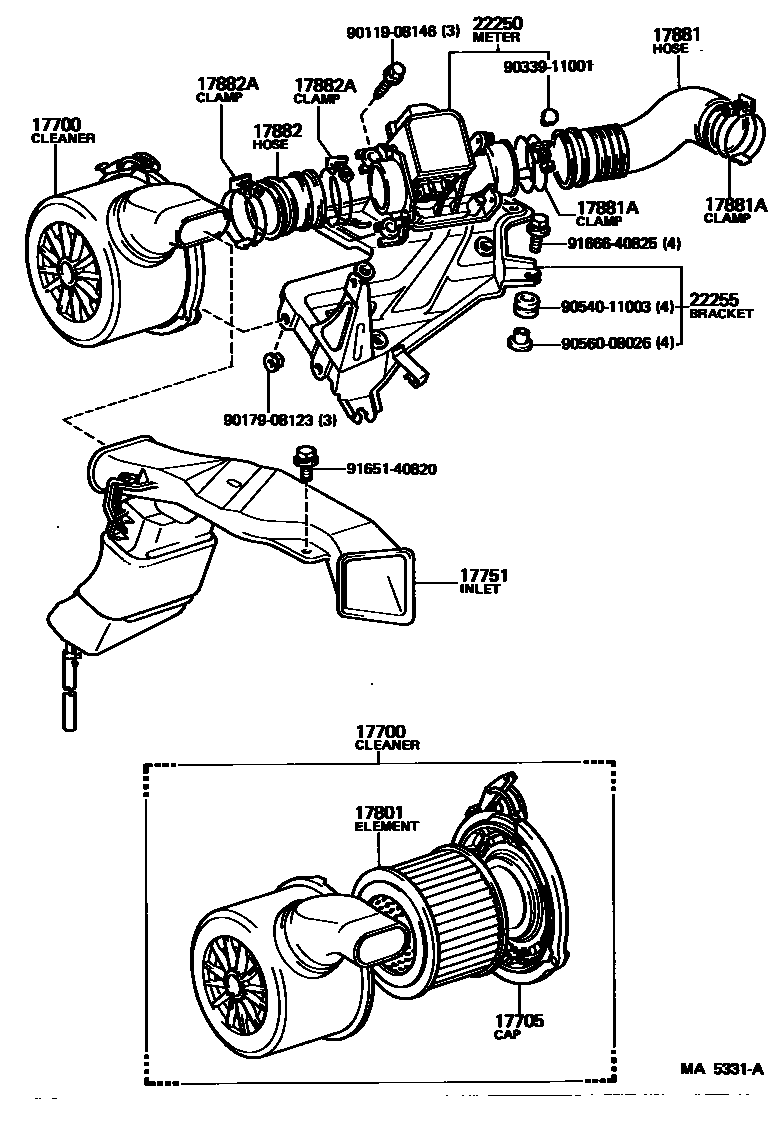

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

17700CLEANER ASSY, AIR

main17700-41500iMJ,MU..MS110,117..CBR197909-198307

W/HOT AIR INTAKE

main17700-41510iMJ,MU..MS110,117..CBR198108-198307

W/O HOT AIR INTAKE

main17700-41520iMU..MS110..LPG197912-198101

sub17700-41550

main17700-41530i1GE#..GS11#197909-198307

main17700-41550iMU..MS110..LPG198101-198307

main17700-41560iMTEU..MS110198010-198307

sub17700-41600

main17700-43050i5MGEU..MS112198108-198307

main17700-44471i5RU..RS110197909-198002

sub17700-44472

main17700-44472i5RU..RS110198002-198004

sub17700-44473

main17700-44473i5RU..RS110198004-198108

main17700-44490i5RU..RS110198108-198307

sub17700-44491

main17700-44491i5RU..RS110198307-198307

main17700-54170i2LT#..LS111198208-198307

main17710-54040iL..LS110,117197909-198307

17705CAP SUB-ASSY, AIR CLEANER

main17705-41130iMJ,MU..MS110,117197909-198307

sub17705-41200

main17705-41140iMEU,5MEU..MS110,112197909-198307

main17705-41150iMTEU..MS110198010-198307

main17705-43030i5MGEU..MS112198108-198307

main17705-44032i5RU..RS110197909-198108

main17705-44180i5RU..RS110198108-198307

sub17705-44181

main17705-44181i5RU..RS110198307-198307

main17705-54020iL..LS110,117197909-198307

main17705-54080i2LT#..LS111198208-198307

17751INLET, AIR CLEANER, NO.1

main17751-41050iMEU,5M#..MS110,112197909-198307

main53207-30080iMTEU..MS110198010-198307

main53207-30100i1GE#..GS11#198108-198307

main53207-30110i2LT#..LS111198208-198307

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-41060iMU..MS110..LPG197912-198307

main17801-41090iMJ,MU..MS110,117..CBR197909-198307

main17801-41110i1GE#..GS11#197909-198307

main17801-44040i5RU..RS110197909-198307

main17801-54010iL..LS110,117197909-198307

main17801-54060i2LT#..LS111198208-198307

17881HOSE, AIR CLEANER, NO.1

main17349-54010i2LT#..LS111198208-198307

main17881-26010iMJ,MU..MS110,117..CBR197909-198307

sub17881-34040

main17881-41060iMEU,5MEU..MS110,112197909-198307

main17881-41070iMTEU..MS110198010-198307

main17881-43030i5MGEU..MS112198108-198307

main17881-54040iL..LS110,117197909-198307

main17881-70030i1GE#..GS11#198108-198307

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-01017i5RU..RS110198108-198307

main90460-75001iMTEU..MS110198010-198307

main96111-10630i2LT#..LS111198208-198307

main96111-10690iL..LS110,117197909-198307

ID=69

main96111-10710i1GE#..GS11#198108-198307

THROTTLE BODY SIDE

main96111-10710iMEU,5MEU..MS110,112197909-198307

ID=71

main96111-10800i1GE#..GS11#198108-198307

AIR FLOW METER SIDE

main96111-10830i5MGEU..MS112198108-198307

ID=83

17882HOSE, AIR CLEANER, NO.2

main17881-54150i2LT#..LS111198208-198307

main17882-41090iMEU,5MEU..MS110,112197909-198307

main17882-41100iMJ,MU..MS110,117..CBR197909-198307

main17882-41110iMTEU..MS110198010-198307

main17882-43050i5MGEU..MS112198108-198307

main17882-44040i5RU..RS110198108-198307

main17882-54040iL..LS110,117197909-198307

main17883-41060i1GE#..GS11#198108-198307

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-01008iL..LS110,117197909-198307

BODY SIDE

main90460-01008i5RU..RS110198108-198307

main96111-10670iL..LS110,117197909-198307

AIR CLEANER SIDE,ID=67

main96111-10690i2LT#..LS111198208-198307

main96111-10710iMJ,MU..MS110,117..CBR197909-198307

ID=71

main96111-10710iMJ,MU..MS110,117..CBR197909-198307

AIR CLEANER SIDE,ID=71

main96111-10800i1GE#..GS11#197909-198307

ID=80

main96111-10830i5MGEU..MS112198108-198307

PIPE SIDE

main96111-10900i5MGEU..MS112198108-198307

AIR.FLOW METER SIDE

22250METER ASSY, INTAKE AIR FLOW

main22250-41050iMEU..MS110197909-198108

main22250-41070iMTEU..MS110198010-198307

main22250-43010i5MEU..MS112197909-198307

main22250-43120i5MGEU..MS112198108-198307

main22250-70030i1GE#..GS11#198108-198307

22255BRACKET, AIR FLOW METER

main22209-41030iMEU,5MEU..MS110,112197909-198108

sub22209-41040

sub91651-40822

main22209-41031i5M#..MS112198108-198307

sub22209-41040

main22209-43010iMTEU..MS110198010-198307

9011908146

main90119-08146

9017908123

main90179-08123

9033911001

main90339-11001

9054011003

main90540-11003

9056008026

main90560-08026

9165140820

main91651-40820

9166640825

main91666-40825

17 parts on this diagram · 10 diagrams in section
