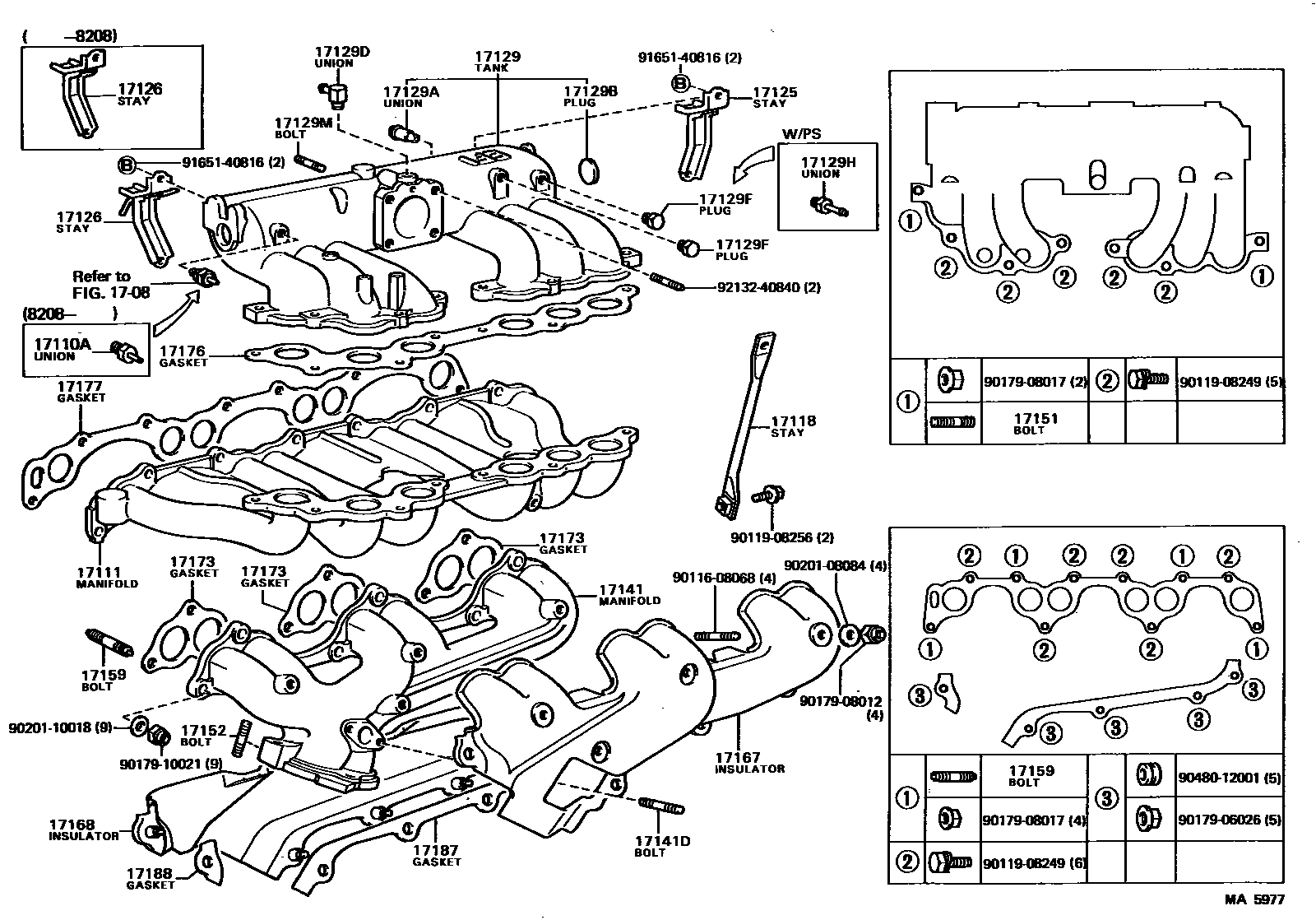

1708VACUUM PIPING

→ Go to FIG 17-08

17110MANIFOLD ASSY

main17110-44131i197909-198307

17110AUNION, VACUUM HOSE

main90404-51029i197909-198307

main90404-51045i198208-198307

17111MANIFOLD, INTAKE

main17101-54011i197909-197911

main17101-54020i197911-198010

main17101-54030i198010-198307

main17101-54050i198208-198307

main17111-41160i197909-198307

main17111-43010i198108-198307

main17111-45080i197909-198307

main17111-70010i198108-198207

main17111-70011i198207-198307

17118STAY, MANIFOLD

main17118-41020i198010-198306

main17118-41030i198306-198307

main17118-54010i198208-198307

main17118-70020i198108-198307

17125STAY, SURGE TANK, NO.1

main17125-41020i197909-198207

main17125-41021i198207-198307

main17125-43010i198108-198207

main17125-43011i198207-198307

main17125-70010i198108-198307

17126STAY, SURGE TANK, NO.2

main17126-70010i198108-198208

main17126-70020i198208-198307

17129TANK, INTAKE AIR SURGE

main17109-41050i197909-198307

main17109-43020i198108-198307

main17109-70010i198108-198206

main17109-70011i198206-198307

17129AUNION, NO.1

main90072-40617i198108-198307

main90404-51036i198010-198307

main90404-53029i197909-198307

17129BPLUG

main90072-34107×2i197909-198307

main96411-11600×2i198108-198307

main96411-43000×2i198108-198307

OD=30

17129DUNION, NO.2

main90404-51093i197909-198108

main90404-53041i198010-198307

main90407-10040i198108-198307

17129FPLUG, INTAKE MANIFOLD SUCTION HOLE

main90072-34107i198207-198307

main90345-51025×2i198108-198307

17129HUNION, NO.4

main90404-51026i198108-198307

W/PS

17129MBOLT, STUD(FOR COLD START INJECTOR)

main92112-40616×2i198108-198307

17141MANIFOLD, EXHAUST

main17141-41060i197909-198001

main17141-41070i197912-198307

main17141-41080i198010-198306

main17141-41090i198306-198307

main17141-43010i198108-198307

main17141-45040i197909-198208

main17141-54011i197909-198204

main17141-54012i198204-198307

main17141-54020i198208-198307

main17141-70010i198108-198307

17141DBOLT, STUD(FOR OXYGEN SENSOR)

main90116-08045×2i197909-198208

L=28,S=14&8

main90116-08128×2i198108-198208

main90116-08168×2i198208-198307

L=28,S=14&8

17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)

main90116-08115×2i198108-198307

L=48,S=16&26

main90116-08276×4i197909-198307

L=41,S=17&11

main92112-40828×4i197909-198307

L=38,S=10&16

main92112-40832×4i197912-198307

L=42,S=10&16

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10017×3i197909-198102

L=41,S=21&14

main90116-10027×3i197909-198207

L=45.4,S=14&20

main90116-10058×3i198102-198307

L=46.5,S=14&20

main90116-10071×3i198207-198302

L=47.4,S=14&22

main90116-10088×3i198302-198307

L=47.4,S=14&22

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08020×4i197909-198307

INTAKE,L=44,S=12&18

main90116-08053×2i198204-198307

INTAKE MANIFOLD SIDE

main90116-08115×4i198108-198307

INTAKE MANIFOLD

main90116-08201×2i198108-198307

INTAKE MANIFOLD

main90116-10024×3i197909-198307

EXHAUST,LWR,L=53,S=15&29

main90116-10025×7i198108-198307

EXHAUST MANIFOLD

main90116-10027×2i198204-198207

EXHAUST MANIFOLD SIDE

main90116-10047×9i198108-198307

EXHAUST MANIFOLD

main90116-10061×4i198208-198307

EXHAUST MANIFOLD SIDE

main90116-10071×2i198207-198302

EXHAUST MANIFOLD SIDE

main90116-10088×2i198302-198307

EXHAUST MANIFOLD SIDE

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17107-41010i197909-198307

main17107-54010i198208-198307

main17167-41040i198010-198307

main17167-43010i198108-198307

main17167-70010i198108-198307

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-41010i198010-198307

main17168-43010i198108-198307

main17168-70010i198108-198307

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-41040i198010-198307

main17173-43010i198108-198307

main17173-45030i197909-198307

main17173-54010i197909-198204

main17173-54011i198204-198307

main17173-54020i198208-198307

main17173-70010×3i198108-198307

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-41030i197909-198307

main17176-43010i198108-198307

main17176-70010i198108-198307

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-41030i197909-198109

main17177-41040i198109-198307

main17177-43010i198108-198307

main17177-45022i197909-198307

main17177-54010i197909-198107

main17177-54011i198107-198307

main17177-70010i198108-198207

main17177-70011i198207-198307

17187GASKET, HEAT INSULATOR, NO.1

main17187-70010i198108-198307

17188GASKET, HEAT INSULATOR, NO.2

main17188-70010i198108-198307

9011608068

main90116-08068

9011908249

main90119-08249

9011908256

main90119-08256

9017906026

main90179-06026

9017908012

main90179-08012

9017908017

main90179-08017

9017910021

main90179-10021

9020108084

main90201-08084

9020110018

main90201-10018

9048012001

main90480-12001

9165140816

main91651-40816

9213240840

main92132-40840
