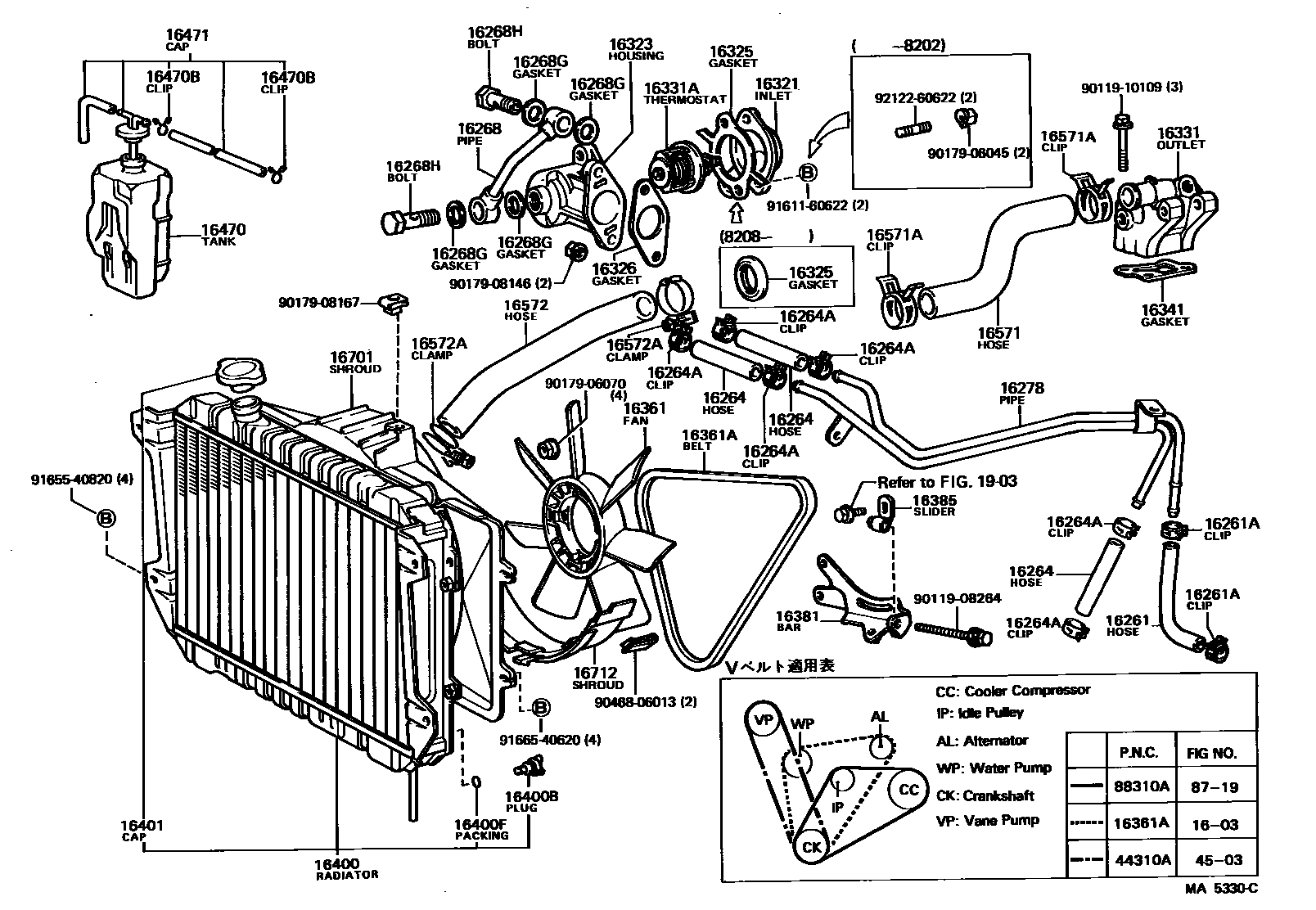

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1603

16261HOSE, WATER BY-PASS

main16261-44020i5RU..RS110197909-198307

main16261-54010iL..LS110,117198108-198307

main16261-54020i2LT#..LS111198208-198307

main16261-70030i1GE#..GS11#198108-198307

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i1GE#..GS11#198108-198307

sub96135-51300

main90467-15004iL,2LT#..LS11#198108-198307

main96112-10240i5RU..RS110197909-198307

ID=24

main96112-10250i5RU..RS110198011-198102

ID=25

16264HOSE, WATER BY-PASS, NO.2

main16264-54010iL,2LT..LS11#198108-198307

main16264-54020i2LTE..LS111198208-198307

main99553-10100i1GE#..GS11#198108-198307

sub99555-10100

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i1GE#..GS11#198108-198307

sub96135-51300

main90467-15004iL,2LT#..LS11#198108-198307

16268PIPE, WATER BY-PASS, NO.1

main16268-41120iMEU,5MEU..MS110,112197909-198010

main16268-41140iMEU,5M#,MTEU..MS110,112198010-198307

main16268-41150iMJ,MU..MS110,117198101-198307

main16268-45021iMJ,MU..MS110,117197909-198101

sub16268-41150

sub90461-08551

main16268-70010i1GE#..GS11#198108-198307

sub16268-70011

16268GGASKET(FOR WATER BY-PASS PIPE)

main90430-18012i1GE#..GS11#198108-198307

16268HBOLT, UNION(FOR WATER BY-PASS PIPE)

main90401-18006i1GE#..GS11#198108-198307

16278PIPE, WATER BY-PASS, NO.2

main16278-70021i1GE#..GS11#198108-198307

16321INLET, WATER

main16321-70010i1GEU..GS110198108-198208

sub16321-70011

main16321-70011i1GE#..GS11#198208-198307

16323HOUSING, WATER INLET

main16323-70010i1GEU..GS110198108-198208

sub16323-70011

sub16325-63010

main16323-70011i1GE#..GS11#198208-198307

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1GE#..GS11#198208-198307

sub16325-63011

main16325-70020i1GEU..GS110198108-198112

sub16325-70021

main16325-70021i1GEU..GS110198112-198208

16326GASKET, WATER INLET HOUSING, NO.2

main16326-70010i1GEU..GS110198108-198112

sub16326-70011

main16326-70011i1GE#..GS11#198112-198307

sub16326-70012

16331OUTLET, WATER

main16331-43010i5MGEU..MS112198108-198307

main16331-44110i5RU..RS110197909-198307

main16331-45030iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198307

main16331-54010iL..LS110,117197909-198307

main16331-54030i2LT#..LS111198208-198307

main16331-70010i1GE#..GS11#198108-198307

16331ATHERMOSTAT

main90916-03034iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198210

*WAX 82-95,*(F)

main90916-03036iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198210

COLD SPEC,*WAX 88-100,*(F)

sub90916-03040

main90916-03037i5RU..RS110197909-198212

*WAX 82-95

sub90916-03083

main90916-03040iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198210

*WAX 88-100

sub90916-03078

main90916-03040i5MEU,MTEU,MU..MS11#198210-198212

COLD SPEC,*WAX 88-100

sub90916-03078

main90916-03042iL..LS11#197909-198110

*WAX 82-95,*(F)

sub90916-03061

main90916-03043iL..LS11#197909-198110

COLD SPEC,*WAX 88-100,*(F)

sub90916-03062

main90916-03054i5MEU,MTEU,MU..MS11#198210-198307

sub90916-03083

main90916-03055i5RU..RS110198210-198307

sub90916-03078

main90916-03055i5MGEU..MS112198108-198307

sub90916-03078

main90916-03060i1GE#..GS11#198108-198307

sub90916-03090

main90916-03061iL,2LT#..LS11#198110-198307

*WAX 82-95,*(F)

main90916-03062iL,2LT#..LS11#198110-198307

sub90916-03072

16341GASKET, WATER OUTLET

main16341-38010iL..LS11#197909-198008

main16341-38011i5RU..RS110198205-198307

main16341-41010i5RU..RS110198001-198307

sub16341-38021

main16341-43010i5MGEU..MS112198108-198307

sub16341-43011

main16341-54010i2LT#..LS111198208-198304

sub16341-54011

main16341-54011i2LT#..LS111198304-198307

sub16341-54030

main16341-54020iL..LS110,117198304-198307

sub16341-34010

main16341-70010i1GE#..GS11#198108-198307

16361FAN

main16361-38010iL..LS110,117197909-198307

7 BLADES,OD=380

main16361-41050i2LT#..LS111198208-198307

main16361-41090iMEU,MJ,5M#,MTEU,MU..MS11#197909-198307

7 BLADES

main16361-44032i5RU..RS110..STD,TAX197909-198010

5 BLADES

main16361-44041i5RU..RS110197909-198307

6 BLADES

main16361-70010i1GE#..GS11#198108-198307

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02076iMEU,MJ,5M#,MTEU,MU..MS11#197909-198307

L=925

main90916-02119i2LT#..LS111198208-198211

DOUBLE V BELTS

sub90916-02282

main90916-02132i2LT#..LS111198211-198307

DOUBLE V BELTS

sub90916-02281

main90916-02133iL..LS110,117198211-198307

L=990

main99322-01010i5RU..RS110197909-198307

L=1010

main99332-00985iL..LS11#197909-198204

L=985

main99332-10985iL..LS11#198204-198207

L=985

main99332-11000iL..LS110,117198207-198211

L=1000

main99332-51130i1GE#..GS11#198108-198307

16381BAR, FAN BELT ADJUSTING

main16381-44070i5RU..RS110197909-198307

main16381-45011iMEU,MJ,5M#,MTEU,MU..MS11#197909-198307

main16381-54011iL,2LT#..LS11#197909-198307

main16381-70010i1GE#..GS11#198108-198307

16385SLIDER, FAN BELT ADJUSTING

main16385-70010i1GE#..GS11#198108-198307

sub16385-70011

16400RADIATOR ASSY

main16400-41230iMEU,5MEU,MU..MS110,112..MTM..(EFI,LPG)197909-198307

sub16400-45180

main16400-41240iMEU,5MEU,MTEU..MS110,112..ATM197909-198108

sub16400-45180

main16400-41250iMJ..MS117197909-198307

main16400-41300iMU..MS110..ATM198108-198307

main16400-44210i5RU..RS110197909-198307

sub16400-44220

main16400-45170iMU..MS110..MTM..CBR197909-198307

sub16400-45180

main16400-45180iMU..MS110..ATM197909-198108

main16400-54060iL,2LT..LS11#..MTM197909-198307

sub16400-54070

main16400-54070iL,2LTE..LS11#..ATM197909-198307

main16400-70050i5M#,MTEU..MS110,112..ATM198108-198307

sub16400-41300

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200iMJ..MS117197909-198307

main90910-09054iL,2LT#..LS11#197909-198307

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i1GEJ..GS117197909-198307

main96710-01007iMEU,5M#,MTEU,MU..MS110,112197909-198110

sub96711-19007

main96711-19007i5M#,MTEU,MU..MS110,112198110-198307

16401CAP SUB-ASSY, RADIATOR

main16401-36011i1GEU..GS110197909-198307

main16401-41021iMJ..MS117197909-198307

16470TANK ASSY, RADIATOR RESERVE

main16480-41130i1GE#..GS11#197909-198307

main16480-41140iMU..MS110..LPG198108-198307

main16480-41140iMTEU..MS110198010-198307

COLD SPEC

main16480-41160iMTEU..MS110198010-198307

main16480-45030i2LT#..LS111198208-198307

sub16470-24012

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085iL,2LT#..LS11#197909-198307

16471CAP SUB-ASSY, RESERVE TANK

main16405-41030iL..LS110,117197909-198307

main16405-41040iMTEU..MS110198010-198307

COLD SPEC

main16405-41040i5RU..RS110198108-198307

main16405-41050iMTEU..MS110198010-198307

main16405-54020i2LT#..LS111198208-198307

16571HOSE, RADIATOR, INLET

main16571-41080iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198307

main16571-43020i5MGEU..MS112198108-198307

main16571-44120i5RU..RS110197909-198307

main16571-54040iL,2LT#..LS11#197909-198307

main16571-70030i1GE#..GS11#198108-198307

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001iL,2LT#..LS11#198006-198307

sub90467-37003

main90467-37001iMEU,MJ,5MEU,MU..MS11#197909-198307

WATER OUTLET SIDE,ID=37

sub90467-37003

main96111-10430iMEU,MJ,5MEU,MU..MS11#197909-198307

RADIATOR SIDE,ID=43

16572HOSE, RADIATOR, OUTLET

main16572-41060iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198108

sub16572-41090

main16572-41090iMJ,5MEU,MTEU,MU..MS11#198108-198307

main16572-43020i5MGEU..MS112198108-198307

main16572-44040i5RU..RS110197909-198307

RADIATOR SIDE

main16572-54040iL,2LT#..LS11#197909-198307

main16572-70030i1GE#..GS11#198108-198307

main90916-01164i5RU..RS110197909-198307

PUMP SIDE

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-39155iMTEU..MS110198010-198108

PUMP SIDE

main96111-10430i1GE#..GS11#198108-198307

main96111-10460i5RU..RS110197909-198307

ID=46

main96111-10460iMTEU..MS110198010-198108

RADIATOR SIDE

main96111-10460iL,2LT#..LS11#197909-198307

RADIATOR SIDE,ID=46

main96111-10490iL,2LT#..LS11#198008-198307

BELT CASE SIDE,ID=49

main96111-10500iL..LS11#197909-198008

BELT CASE SIDE,ID=50

16701SHROUD SUB-ASSY, FAN

main16711-41050iMEU,MJ,5M#,MTEU,MU..MS11#197909-198307

main16711-44040i5RU..RS110197909-198307

main16711-54060iL..LS11#197909-198201

sub16711-54061

main16711-54061iL,2LT#..LS11#198201-198307

main16711-70030i1GE#..GS11#198108-198307

16712SHROUD, FAN, NO.2

main16712-41050iMEU,MJ,5M#,MTEU,MU..MS11#197909-198307

main16712-44040i5RU..RS110197909-198307

main16712-54050iL,2LT#..LS11#197909-198307

main16712-70020i1GE#..GS11#198108-198307

1903

44310ABELT, V(FOR VANE PUMP)

main90916-02078iMS110,112..EFI,LPG197909-198307

sub90916-02465

main90916-02080iLS11#..BTP,CTE,DLX,SAL,SDX,SPE197909-198307

main90916-02092iGS11#..CTE,DLX,SAL,SDX,SPE198108-198307

main90916-02107iMS110,112..TBO,TWC198010-198307

main99522-10976iRS110..BTP,DLX,TAX197909-198307

sub99322-00975

4503

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00910iMS110..(BTP,STD)..CBR197909-198307

W/DASH TYPE COOLER

sub99332-00910

main99322-00910iMS110..LPG197912-198307

sub99332-00910

main99322-00920iGS11#198108-198307

main99322-00940iMS112..EFI197909-198307

main99322-00950iMS110,112..TBO,TWC198108-198307

main99322-01070iRS110..BTP,DLX,STD197909-198307

W/AIR CONDITIONER,W/O PS

main99322-01100iRS110197909-198307

W/DASH TYPE COOLER,W/O PS

main99322-01120iRS110..BTP,DLX,TAX197909-198307

W/PS

main99322-11250iLS111198208-198307

sub99322-51250

main99322-11270iLS110,117197909-198307

sub99322-51270

9011908264

main90119-08264

9011910109

main90119-10109

9017906045

main90179-06045

9017906070

main90179-06070

9017908146

main90179-08146

9017908167

main90179-08167

9046806013

main90468-06013

9161160622

main91611-60622

9165540820

main91655-40820

9166540620

main91665-40620

9212260622

main92122-60622

49 parts on this diagram · 8 diagrams in section
