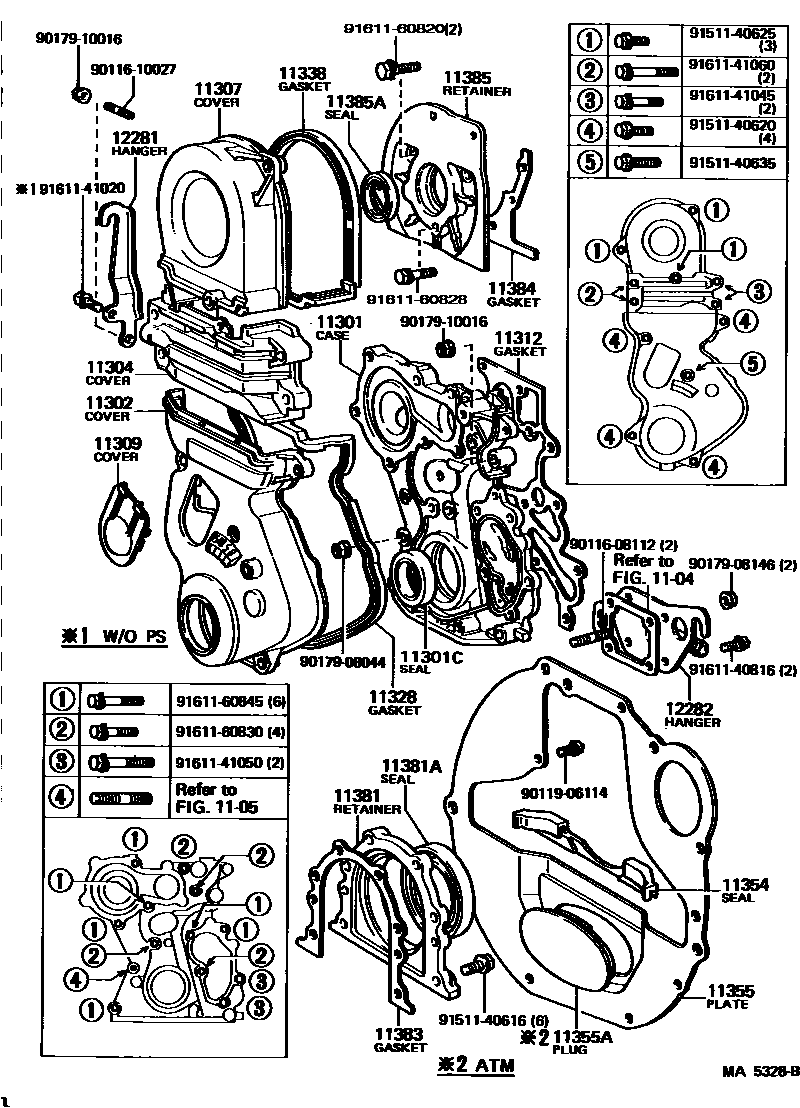

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301CASE SUB-ASSY, TIMING GEAR

main11301-43010i5MGEU..MS112198108-198307

main11311-54010iL..LS11#197909-198008

main11311-54020iL..LS11#198008-198105

main11311-54021iL..LS11#198105-198202

main11311-54022iL,2LT#..LS11#198202-198307

main11311-70011i1GE#..GS11#198108-198307

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42001iL..LS11#197909-198202

main90311-42003i5MGEU..MS112198108-198307

main90311-45003i1GE#..GS11#198108-198307

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-70010i1GE#..GS11#198108-198307

main11321-41020iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198307

main11321-43010i5MGEU..MS112198108-198307

main11321-44021i5RU..RS110197909-198307

main11321-44030i5RU..RS110..BTP,DLX,TAX197909-198307

W/POWER STEERING

main11321-54012iL..LS11#197909-198104

main11321-54013iL..LS11#198104-198203

main11321-54014iL,2LT#..LS11#198203-198307

11304COVER, TIMING CHAIN OR BELT, NO.2

main11322-43010i5MGEU..MS112198108-198307

main11322-70010i1GE#..GS11#198108-198307

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-43010i5MGEU..MS112198108-198307

main11304-70010i1GE#..GS11#198108-198307

11309COVER SUB-ASSY, TIMING BELT, NO.4

main11325-70010i1GE#..GS11#198108-198307

11312GASKET, FRONT END PLATE

main11312-43010i5MGEU..MS112198108-198307

NO.1

main11312-44011i5RU..RS110197909-198307

main11312-54010iL..LS11#197909-198008

main11312-54011iL..LS11#198008-198105

main11312-54012iL..LS11#198105-198201

main11312-54013iL,2LT#..LS11#198201-198307

main11312-70011i1GE#..GS11#198108-198307

main11313-43010i5MGEU..MS112198108-198307

NO.2

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-41010iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198307

main11328-43010i5MGEU..MS112198108-198307

main11328-44010i5RU..RS110197909-198307

main11328-54010iL,2LT#..LS11#197909-198307

main11328-70010i1GE#..GS11#198108-198307

11338GASKET, TIMING CHAIN COVER, NO.2

main11329-70010i1GE#..GS11#198108-198307

main11338-41010iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198307

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010iL,2LT#..LS11#197909-198307

main11354-70010i1GE#..GS11#198108-198307

11355PLATE, REAR END

main11355-41010iMEU,MJ,5M#,MTEU,MU..MS11#197909-198307

main11355-44011i5RU..RS110197909-198307

main11355-54030iL,2LT..LS11#..MTM197909-198307

main11355-54040iL,2LTE..LS11#..ATM197909-198307

main11355-70010i1GE#..GS11#..MTM198108-198307

main11355-70020i1GEU..GS110..ATM198108-198307

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01263iL,2LTE..LS11#..ATM197909-198307

main90950-01307i1GEU..GS110..ATM198108-198307

11381RETAINER, ENGINE REAR OIL SEAL

main11381-41011iMEU,MJ,5M#,MTEU,MU..MS11#197909-198307

main11381-44011i5RU..RS110197909-198307

main11381-54010iL,2LT#..LS11#197909-198307

main11381-70010i1GE#..GS11#198108-198307

11381ASEAL, ENGINE REAR OIL

main90311-75113i1GE#..GS11#198108-198307

main90311-80001iMEU,MJ,5M#,MTEU,MU..MS11#197909-198307

HTC 80 100 12

main90311-80002i5RU..RS110197909-198307

HTCY 80 100 12 13.5

main90311-85001iL,2LT#..LS11#197909-198307

HTC 85 105 13

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-41010iMEU,MJ,5M#,MTEU,MU..MS11#197909-198307

main11383-44010i5RU..RS110197909-198307

main11383-54010iL,2LT#..LS11#197909-198307

main11383-70010i1GE#..GS11#198108-198307

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54010iL,2LT#..LS11#197909-198307

main11384-70010i1GE#..GS11#198108-198307

11385RETAINER, CAMSHAFT OIL SEAL

main11382-70010i1GE#..GS11#198108-198307

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-38017i1GE#..GS11#198108-198307

12281HANGER, ENGINE, NO.1

main12281-31020iL..LS11#197909-198203

main12281-43010i5MGEU..MS112198108-198307

main12281-44020i5RU..RS110197909-198307

main12281-45020iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198307

main12281-54010iL..LS110,117198203-198307

main12281-70010i1GE#..GS11#198108-198307

12282HANGER, ENGINE, NO.2

main12281-45030iMEU,MJ,5MEU,MTEU,MU..MS11#197909-198307

main12282-43010i5MGEU..MS112198108-198307

main12282-54010iL..LS11#197909-197911

main12282-54030iL,2LT#..LS11#197911-198307

main12282-70010i1GEU..GS110198108-198205

main12282-70011i1GE#..GS11#198205-198307

9011608112

main90116-08112

9011610027

main90116-10027

9011906114

main90119-06114

9017908044

main90179-08044

9017908146

main90179-08146

9017910016

main90179-10016

9151140616

main91511-40616

9151140620

main91511-40620

9151140625

main91511-40625

9151140635

main91511-40635

9161140816

main91611-40816

9161141020

main91611-41020

9161141045

main91611-41045

9161141050

main91611-41050

9161141060

main91611-41060

9161160820

main91611-60820

9161160828

main91611-60828

9161160830

main91611-60830

9161160845

main91611-60845

41 parts on this diagram · 5 diagrams in section
