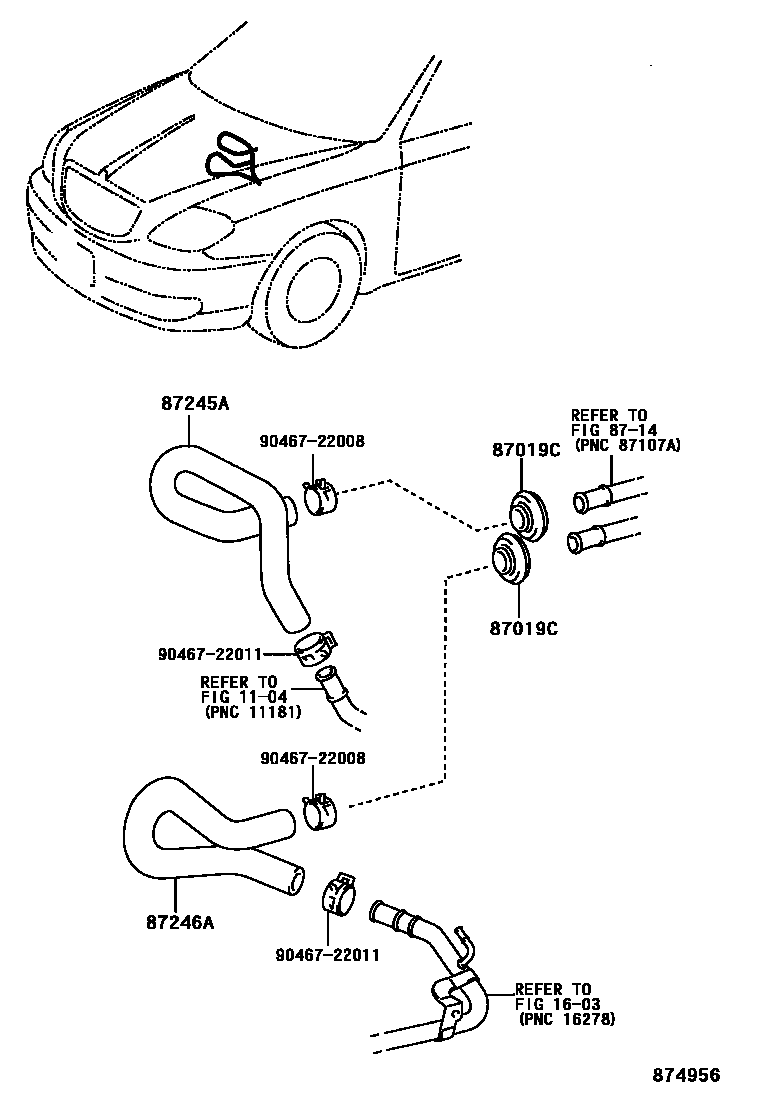

HEATING & AIR CONDITIONING - WATER PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87019CGROMMET, HEATER HOSE

main90480-31007×2iJCG1#200105

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87245-2A730iJCG10,11200105

main87245-51070iJCG15200110

87246AHOSE, HEATER WATER, OUTLET A

main87245-2A740iJCG10200105

main87245-51080iJCG11,15200105

9046722008

main90467-22008

9046722011

main90467-22011

8 parts on this diagram · 1 diagram in section
