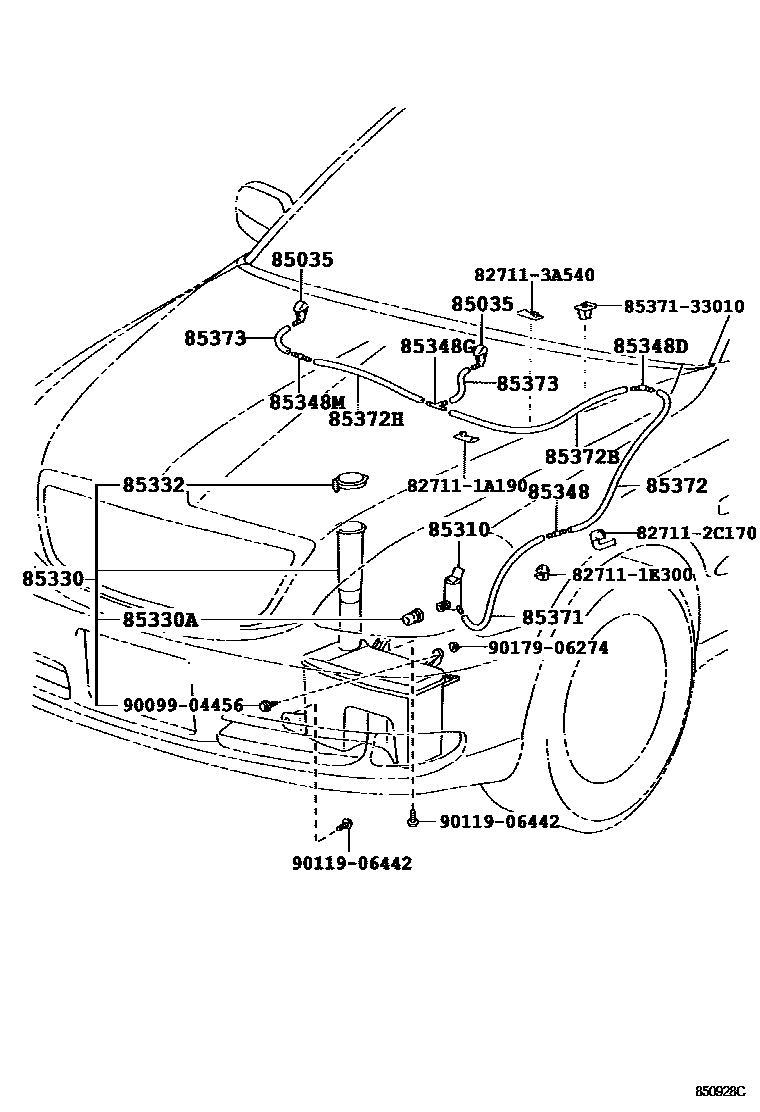

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-22010-B2iJCG1#200403-200706

GRAY ME.,1D2 ,1E0

main85381-51020-A0iJCG1#200105-200706

WHITE PEARL CS.,065

sub85381-22010

main85381-51020-B0iJCG1#200105-200706

SILVER ME.,1C0

sub85381-22010

main85381-51020-B1iJCG1#200105-200212

DK.GRAY MC.,1D2 ,1E0

sub85381-22010

main85381-51020-B2iJCG1#200212-200403

GRAY ME.,1D2

sub85381-22010

main85381-51020-B3iJCG1#200512-200706

SILVER ME.,1F7

sub85381-22010

main85381-51020-C0iJCG1#200305-200404

sub85381-22010

main85381-51020-C0iJCG1#200403-200706

BLUE BLACK MC.CC.,210

sub85381-22010

main85381-51020-C0iJCG10,15200205-200305

sub85381-22010

main85381-51020-C2iJCG1#200512-200706

BLACK,202

sub85381-22010

main85381-51020-D0iJCG1#200105-200706

BORDEAUX MC.,3P2

sub85381-22010

main85381-51020-D1iJCG1#200105-200212

SHELL M.M.,3P7

sub85381-22010

main85381-51020-H0iJCG1#200105-200205

TURQUOISE M.M.,770

sub85381-22010

main85381-51020-J0iJCG1#200105-200706

DARK BLUE MC.,8P8

sub85381-22010

main85381-51020-J1iJCG1#200212-200706

BLUE ME.,8N0

sub85381-22010

main85381-51020-J2iJCG1#200512-200706

DK.BLUE MC.,8S6

sub85381-22010

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280iJCG1#200105-200706

85330JAR ASSY, WINDSHIELD WASHER

main85315-51010iJCG1#200105-200706

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iJCG1#200105-200706

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iJCG1#200105-200706

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iJCG1#200105-200706

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-20200iJCG1#200105-200706

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-12250iJCG1#200105-200706

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iJCG1#200105-200706

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299iJCG1#200105-200706

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iJCG1#200105-200706

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33299iJCG1#200105-200706

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iJCG1#200105-200706

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299iJCG1#200105-200706

827111A190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A190

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C170

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

8537133010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-33010

9009904456

main90099-04456

9011906442

main90119-06442

9017906274

main90179-06274

22 parts on this diagram · 1 diagram in section
