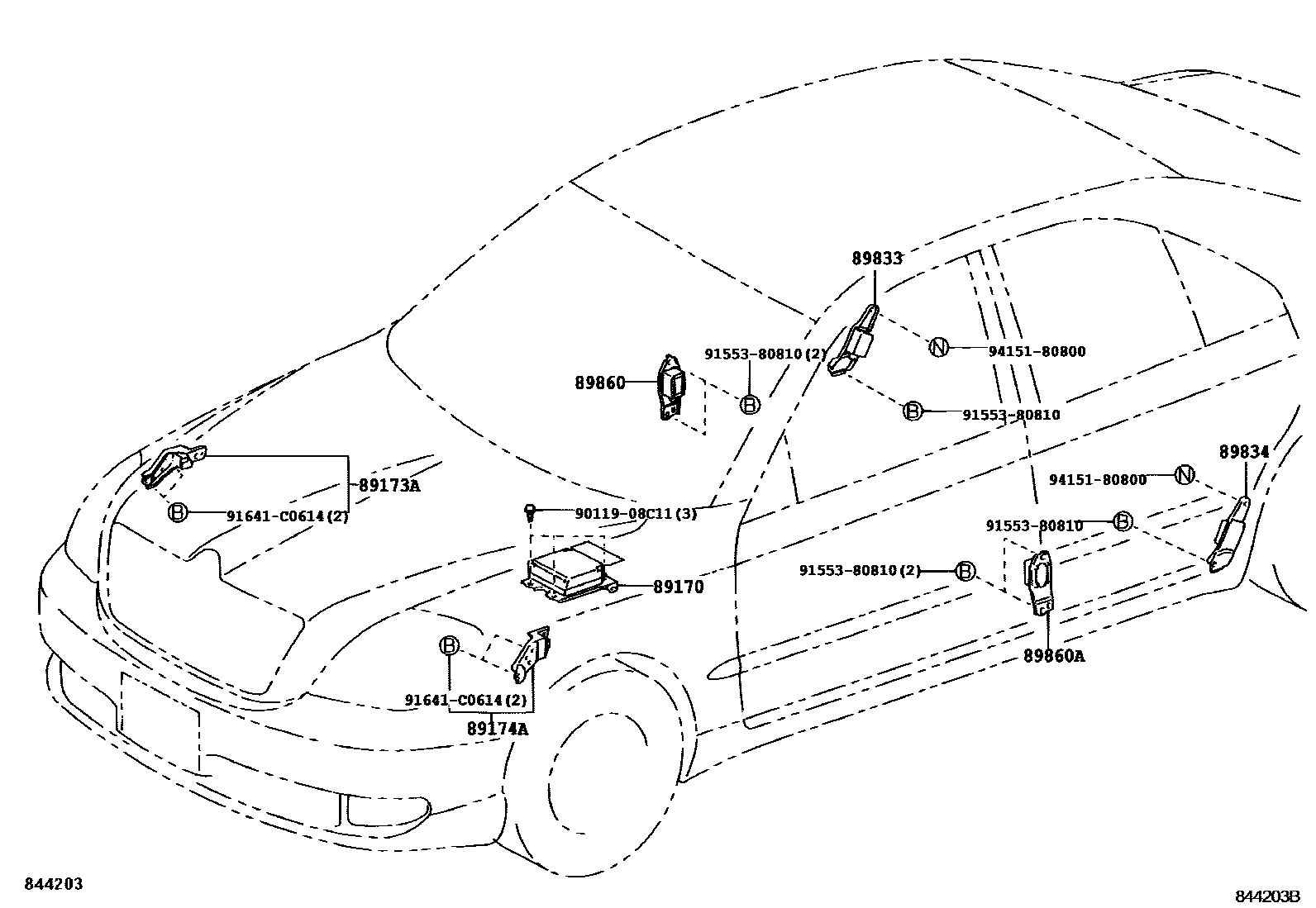

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-51040iJCG1#200105

main89170-51050iJCG10,15200105

89173ASENSOR, AIRBAG, FRONT RH

main89173-59165iJCG1#200105

89174ASENSOR, AIRBAG, FRONT LH

main89174-59105iJCG1#200105

89833SENSOR, AIRBAG, REAR RH

main89833-51010iJCG1#200105

89834SENSOR, AIRBAG, REAR LH

main89834-51010iJCG1#200105

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-51030iJCG1#200105

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-51030iJCG1#200105

9011908C11

main90119-08C11

9155380810

main91553-80810

91641C0614

main91641-C0614

9415180800

main94151-80800

11 parts on this diagram · 1 diagram in section
