ABS & VSC

86652ABUZZER ASSY, SKID CONTROL

main86652-51010iJCG1#200105

88263ARELAY, SKID CONTROL

main88263-24020iJCG1#200105

88263ERELAY, SKID CONTROL NO.2

main88263-24030iJCG1#200105

89183ASENSOR, YAWRATE

main89183-22020iJCG1#200105

89245ASENSOR, STEERING

main89245-12010iJCG1#200105-200706

89540COMPUTER ASSY, SKID CONTROL

main89540-51070iJCG10,11200105-200205

main89540-51080iJCG15200110-200706

main89540-51100iJCG10,11200205-200706

89542SENSOR, SPEED, FRONT RH

main89542-30230iJCG10,11200105-200306

main89542-30241iJCG15200110-200706

main89542-51010iJCG10,11200307-200706

89543SENSOR, SPEED, FRONT LH

main89543-30230iJCG10,11200105-200306

main89543-30241iJCG15200110-200706

main89543-53010iJCG10,11200307-200706

89545SENSOR, SPEED, REAR RH

main89545-30060iJCG1#200105

89546SENSOR, SPEED, REAR LH

main89546-30060iJCG1#200105

89549BRACKET, SKID CONTROL COMPUTER

main89549-51040iJCG1#200105

89549DBRACKET, 4WD COMPUTER

main89549-51060iJCG15200110

89630ACOMPUTER ASSY, 4WD

main89630-51030iJCG15200110

89633ARELAY, TRACTION CONTROL OR VSC

main89633-24010iJCG1#200105

9011906375

main90119-06375

9017906161

main90179-06161

9161560825

main91615-60825

91621J0612

main91621-J0612

91631J0612

main91631-J0612

91651B0616

main91651-B0616

9415180600

main94151-80600

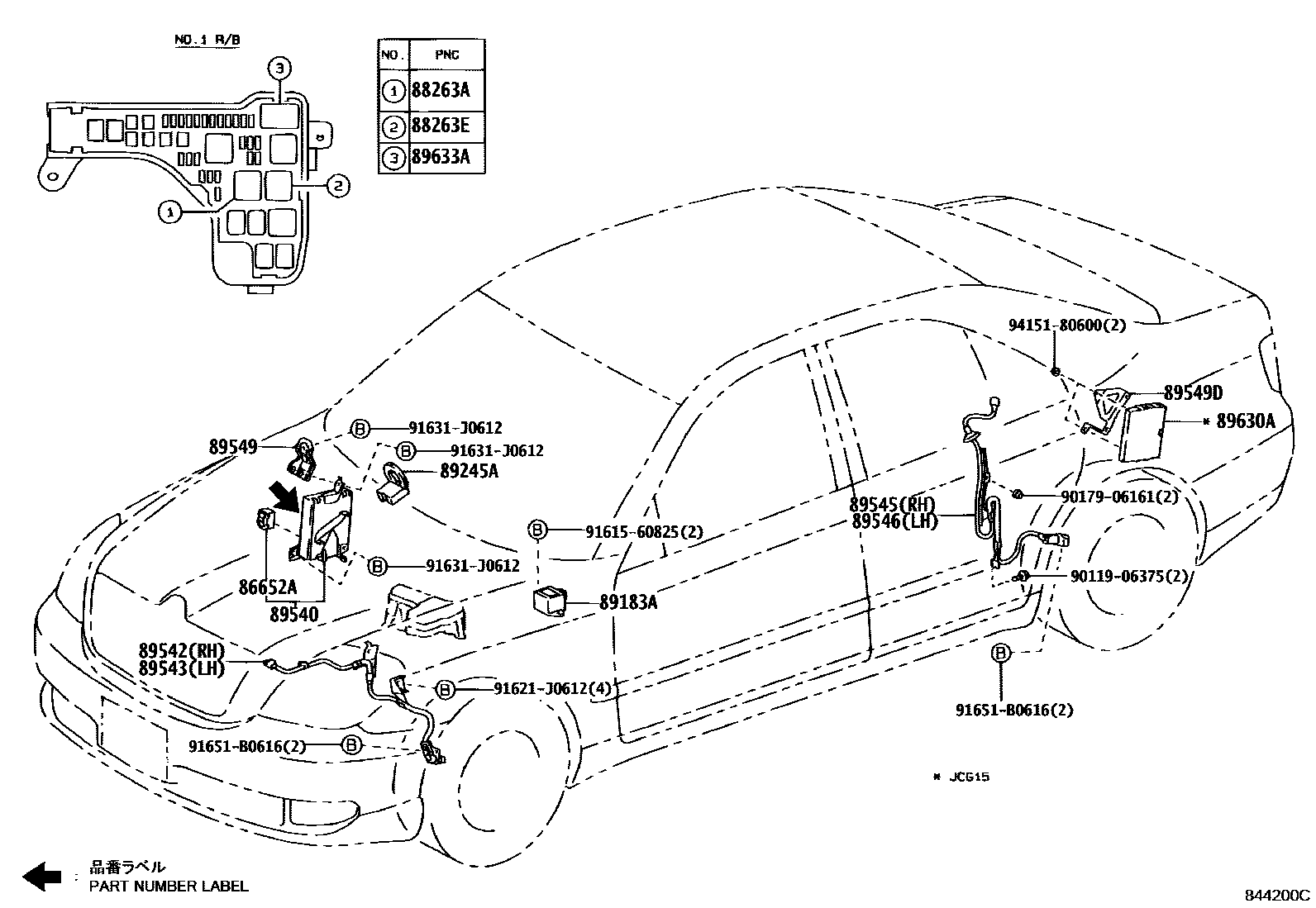

21 parts on this diagram · 1 diagram in section
