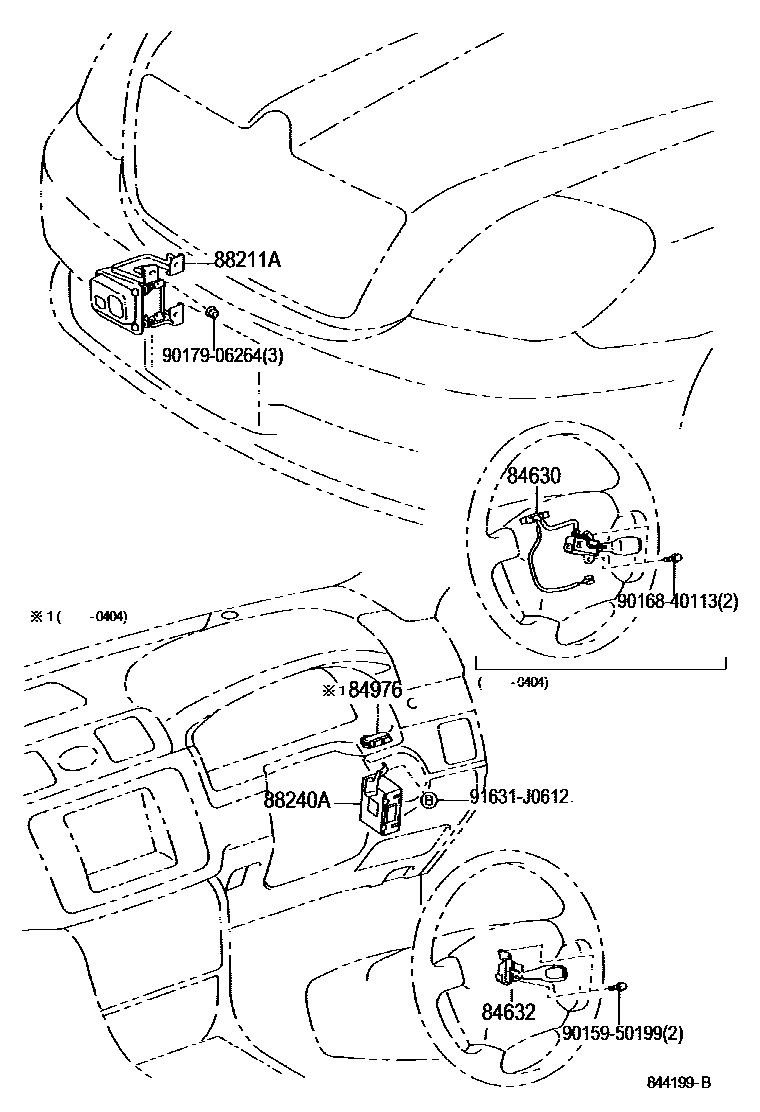

CRUISE CONTROL (AUTO DRIVE)

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-51030iJCG11,15200105-200404

main84630-51040iJCG10,11200105-200404

84632SWITCH, CRUISE CONTROL MAIN

main84632-34010iJCG1#200404-200408

main84632-34011iJCG1#200409-200706

main84632-58010iJCG10,11200404-200408

main84632-58011iJCG10,11200409-200706

84976SWITCH, RADAR CRUISE DISTANCE

main84976-51010iJCG10,11200105-200404

88211ASENSOR, LASER RADAR

main88210-51030iJCG10,11200105-200706

88240ACOMPUTER ASSY, DISTANCE CONTROL

main88240-51040iJCG10,11200105-200205

main88240-51041iJCG10,11200205-200706

9015950199

main90159-50199

9016840113

main90168-40113

9017906264

main90179-06264

91631J0612

main91631-J0612

9 parts on this diagram · 1 diagram in section
