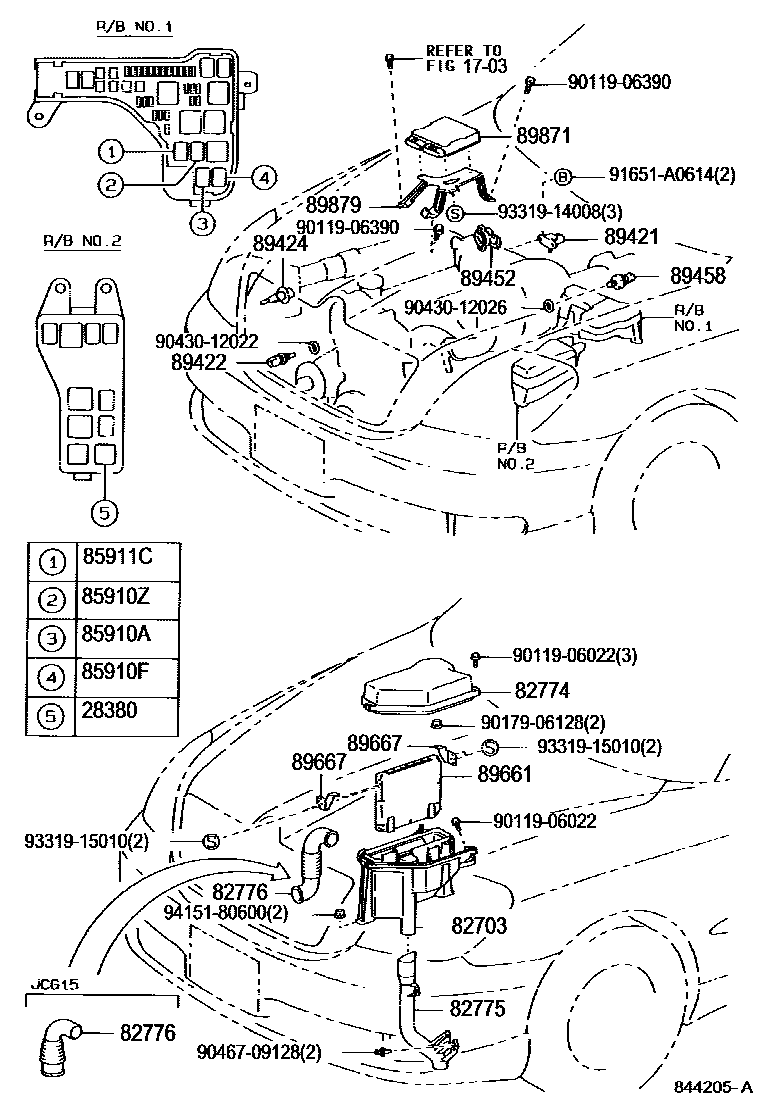

ELECTRONIC FUEL INJECTION SYSTEM
1703AIR CLEANER
28380RELAY ASSY, FUEL PUMP
82703BOX SUB-ASSY, ENGINE ROOM ECU
82774COVER, ENGINE ROOM ECU
82775DUCT, ENGINE ROOM ECU INLET
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
85910ZRELAY, INJECTION (FOR EFI)
85911CRELAY, EFI 2
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89458SENSOR, FUEL PRESSURE
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89871DRIVER, INJECTOR
89879BRACKET, INJECTOR DRIVER
9011906022
main90119-06022
9011906390
main90119-06390
9017906128
main90179-06128
9043012022
main90430-12022
9043012026
main90430-12026
9046709128
main90467-09128
91651A0614
main91651-A0614
9331914008
main93319-14008
9331915010
main93319-15010
9415180600
main94151-80600
29 parts on this diagram · 1 diagram in section
