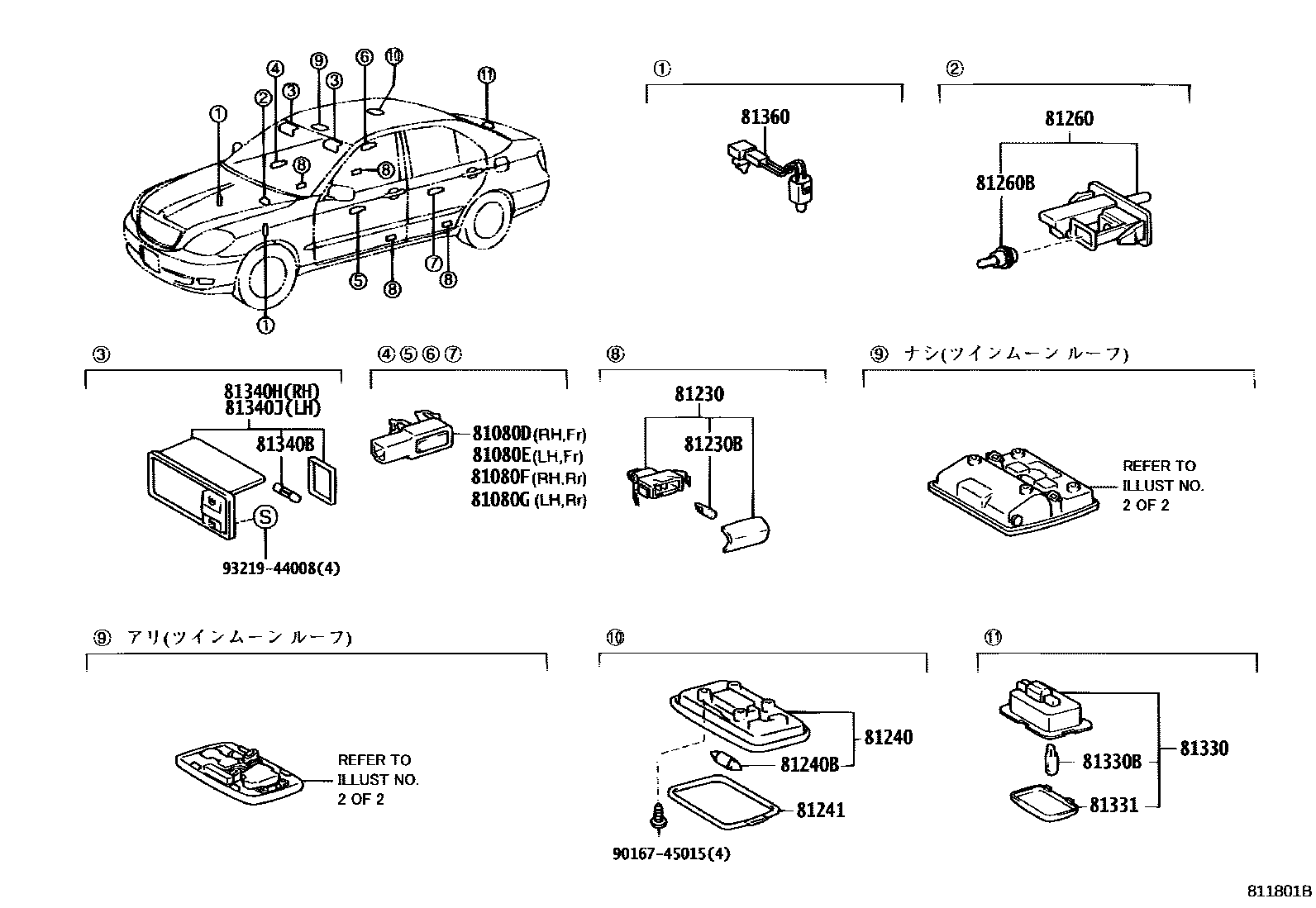

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
81240BBULB, ROOM LAMP, NO.1
81241LENS, ROOM LAMP, NO.1
81260LAMP ASSY, GLOVE BOX
81260BBULB(FOR GLOVE BOX)
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81331LENS, LUGGAGE COMPARTMENT LAMP
81340BBULB (FOR VANITY LAMP)
81340HLAMP ASSY, VANITY, RH
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
81340JLAMP ASSY, VANITY, LH
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
81360LAMP ASSY, STEP OR SPOT
9016745015
main90167-45015
9321944008
main93219-44008
20 parts on this diagram · 2 diagrams in section
