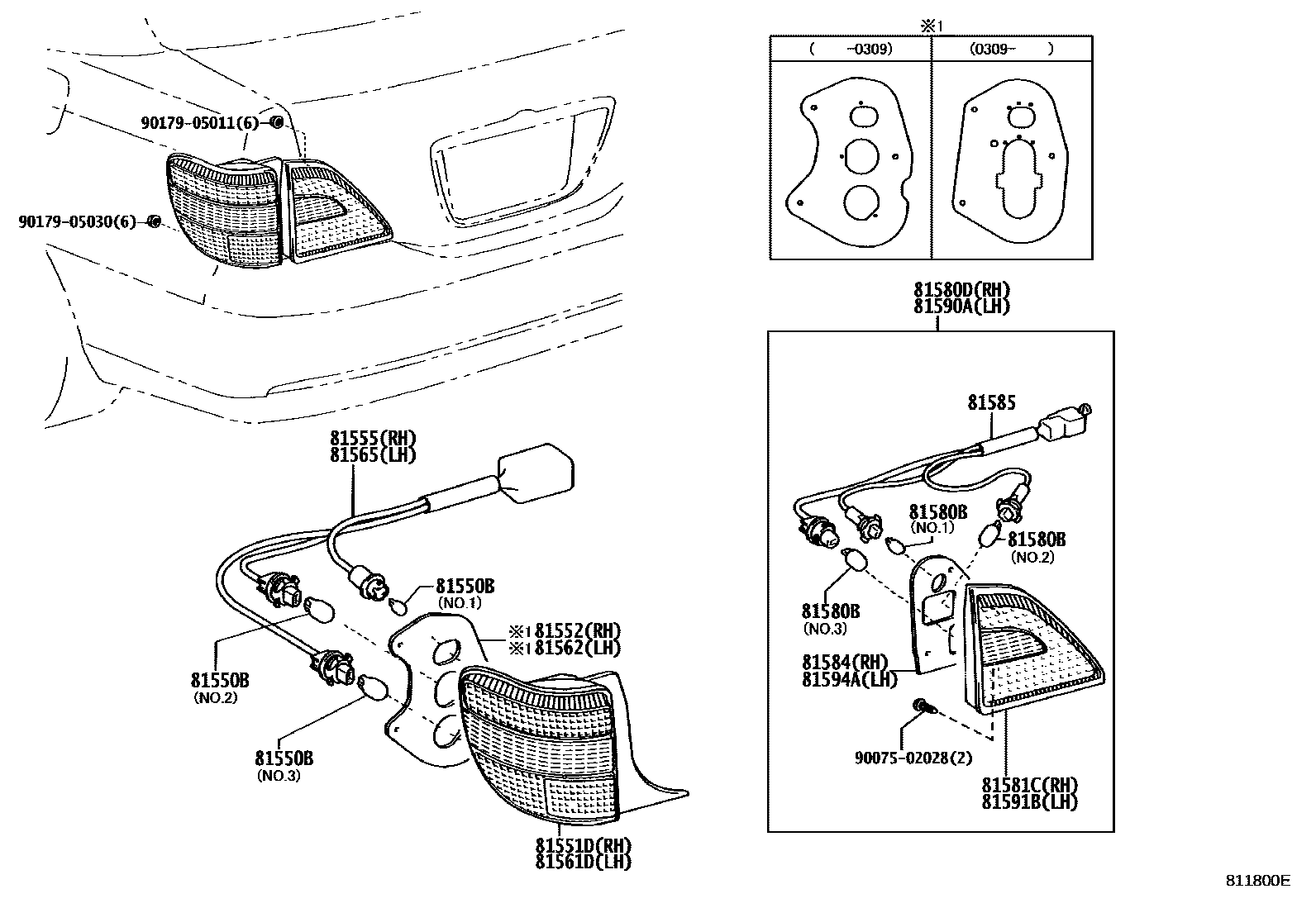

REAR COMBINATION LAMP
81550BBULB(FOR REAR COMBINATION LAMP)
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81552GASKET, REAR COMBINATION LAMP LENS, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81562GASKET, REAR COMBINATION LAMP LENS, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81580BBULB (FOR REAR LAMP)
81580DLAMP ASSY, REAR, RH
81581CLENS AND BODY, REAR LAMP, RH
81584PACKING, REAR LAMP RH
81585SOCKET & WIRE, REAR LAMP
81590ALAMP ASSY, REAR, LH
81591BLENS AND BODY, REAR LAMP, LH
81594AGASKET, REAR LAMP LH
9007502028
main90075-02028
9017905011
main90179-05011
9017905030
main90179-05030
18 parts on this diagram · 1 diagram in section
