JP
›
324110
›

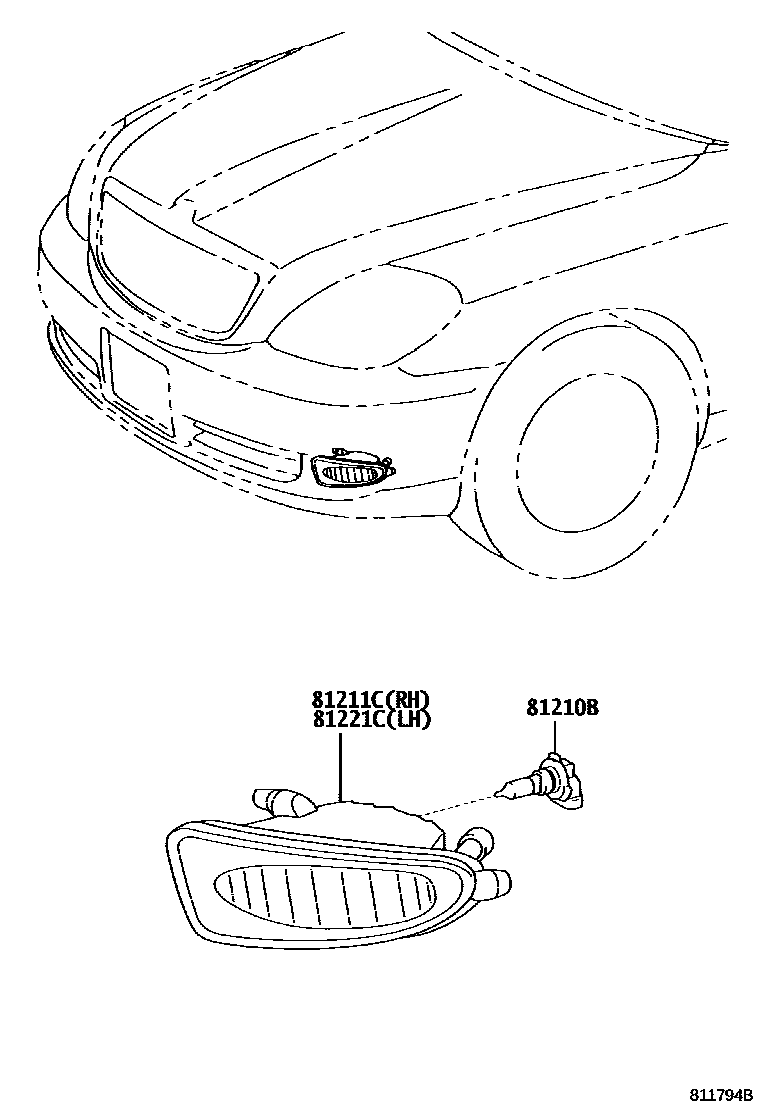

FOG LAMP
FOG LAMP
81210B
BULB, FOG LAMP
main
90080-81040
×2
i
JCG1#
200305-200404
main
90981-13047
×2
i
JCG10,15
200105-200706
81211C
LAMP UNIT, FOG LAMP, RH
main
81211-51050
i
JCG10,15
200205-200305
main
81211-51060
i
JCG10,15
200105-200706
81221C
LAMP UNIT, FOG LAMP, LH
main
81221-51050
i
JCG10,15
200205-200305
main
81221-51060
i
JCG11
200105-200404
3 parts on this diagram · 1 diagram in section
