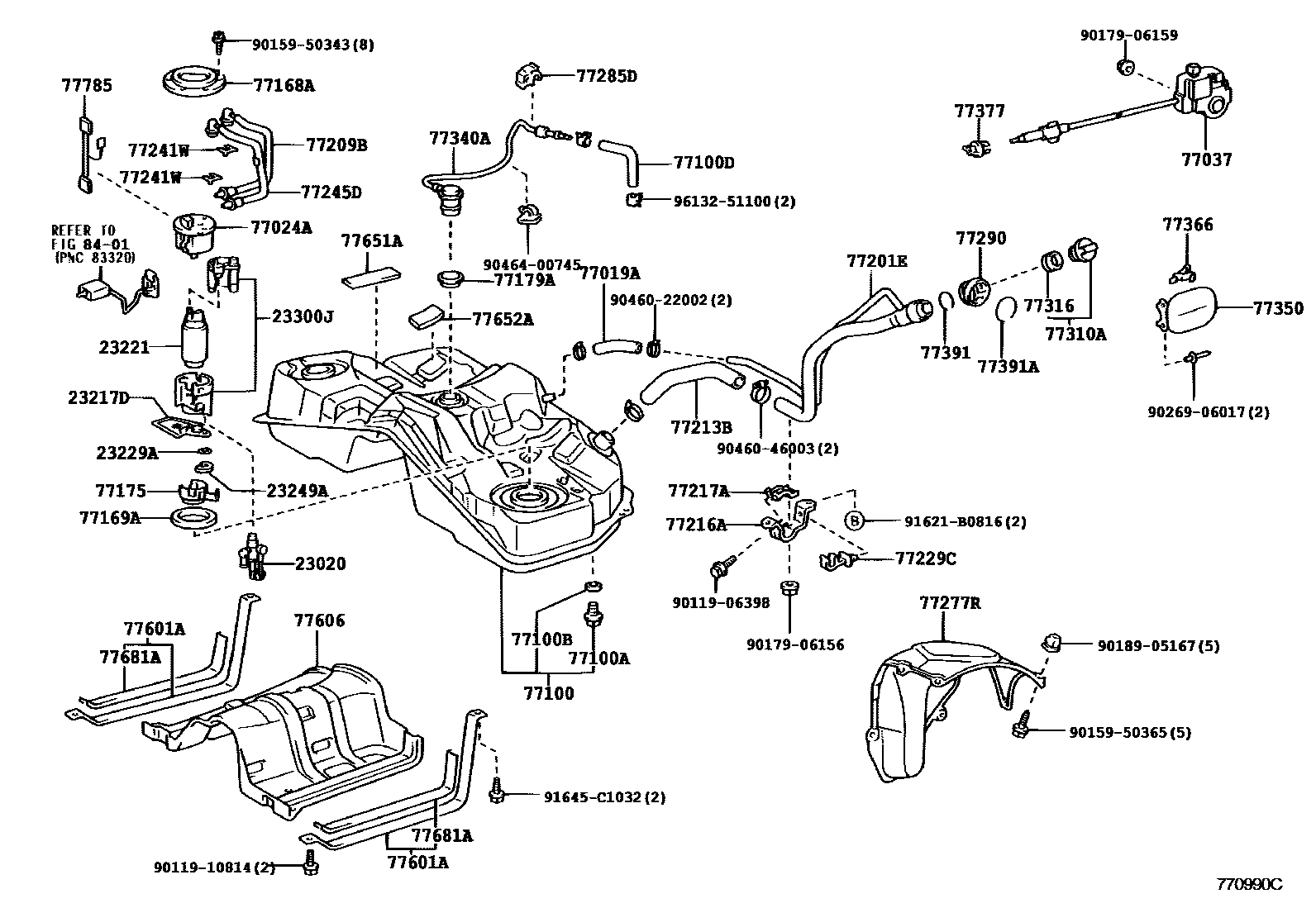

FUEL TANK & TUBE
23020REGULATOR ASSY, FUEL PRESSURE W/JET PUMP
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
sub23221-50200
23229ACLIP(FOR FUEL PUMP FILTER)
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23300JFILTER ASSY, FUEL
77019AHOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)
77024APLATE SUB-ASSY, FUEL SUCTION
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77179AGASKET, FUEL TANK BREATHER TUBE
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209BTUBE SUB-ASSY, FUEL PUMP
77213BHOSE, FUEL TANK TO FILLER PIPE
sub77213-22090
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77229CCLAMP, BREATHER TUBE
77241WCLIP, TUBE JOINT
77245DTUBE, FUEL TANK RETURN VENT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77285DCLAMP, FUEL TUBE, NO.1
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77340AVALVE ASSY, FUEL CUT OFF W/TUBE
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77681ASEAT, FUEL TANK BAND
77785HARNESS, FUEL PUMP
8401
9011906398
main90119-06398
9011910814
main90119-10814
9015950343
main90159-50343
9015950365
main90159-50365
9017906156
main90179-06156
9017906159
main90179-06159
9018905167
main90189-05167
9026906017
main90269-06017
9046022002
main90460-22002
9046046003
main90460-46003
9046400745
main90464-00745
91621B0816
main91621-B0816
91645C1032
main91645-C1032
9613251100
main96132-51100
57 parts on this diagram · 2 diagrams in section
