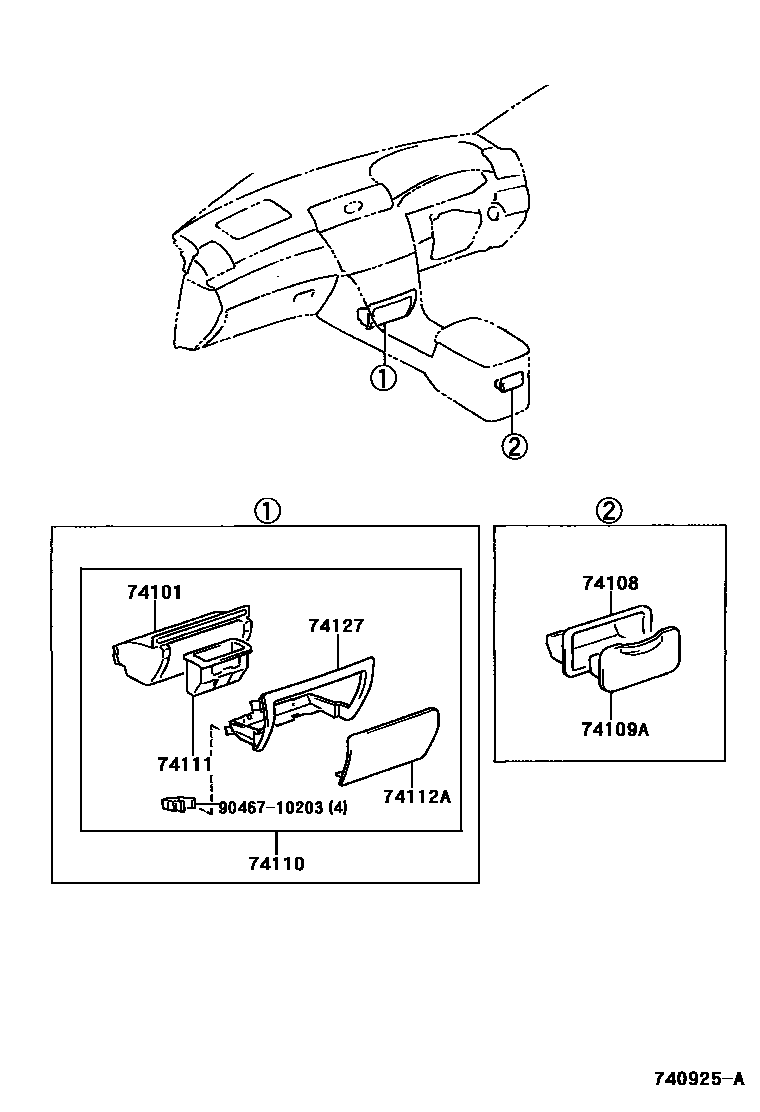

ASH RECEPTACLE

74101RECEPTACLE SUB-ASSY, FRONT ASH

main74101-51030iJCG1#200105

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-51010iJCG1#200105

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-51010-A0iJCG1#200105-200706

IVORY,TRIM0#

main74109-51010-B0iJCG1#200105-200706

LT.GRAY,TRIM1#

main74109-51010-C0iJCG1#200105-200706

BLACK,TRIM2#

74110RECEPTACLE ASSY, INSTRUMENT PANEL ASH

main74110-51050-B0iJCG10,15200205-200305

main74110-51050-B0iJCG1#200105-200706

GRAY,TRIM1#,21

main74110-51050-D0iJCG1#200105-200706

RED,TRIM21

main74110-51050-E0iJCG1#200105-200706

BROWN,TRIM0#

main74110-51050-E0iJCG1#200305-200404

74111BOX, FRONT ASH RECEPTACLE

main74111-30160iJCG1#200105

74112ADOOR, FRONT ASH RECEPTACLE

main74112-51050-B0iJCG10,15200205-200305

main74112-51050-B0iJCG1#200105-200706

GRAY,TRIM1#,21

main74112-51050-D0iJCG1#200105-200706

RED,TRIM21

main74112-51050-E0iJCG1#200305-200404

main74112-51050-E0iJCG1#200105-200706

BROWN,TRIM0#

74127BEZEL, FRONT ASH RECEPTACLE

main74127-51010-B0iJCG10,15200205-200305

main74127-51010-B0iJCG1#200105-200706

GRAY,TRIM1#,21

main74127-51010-D0iJCG1#200105-200706

RED,TRIM21

main74127-51010-E0iJCG1#200105-200706

BROWN,TRIM0#

main74127-51010-E0iJCG1#200305-200404

9046710203

main90467-10203

8 parts on this diagram · 1 diagram in section
