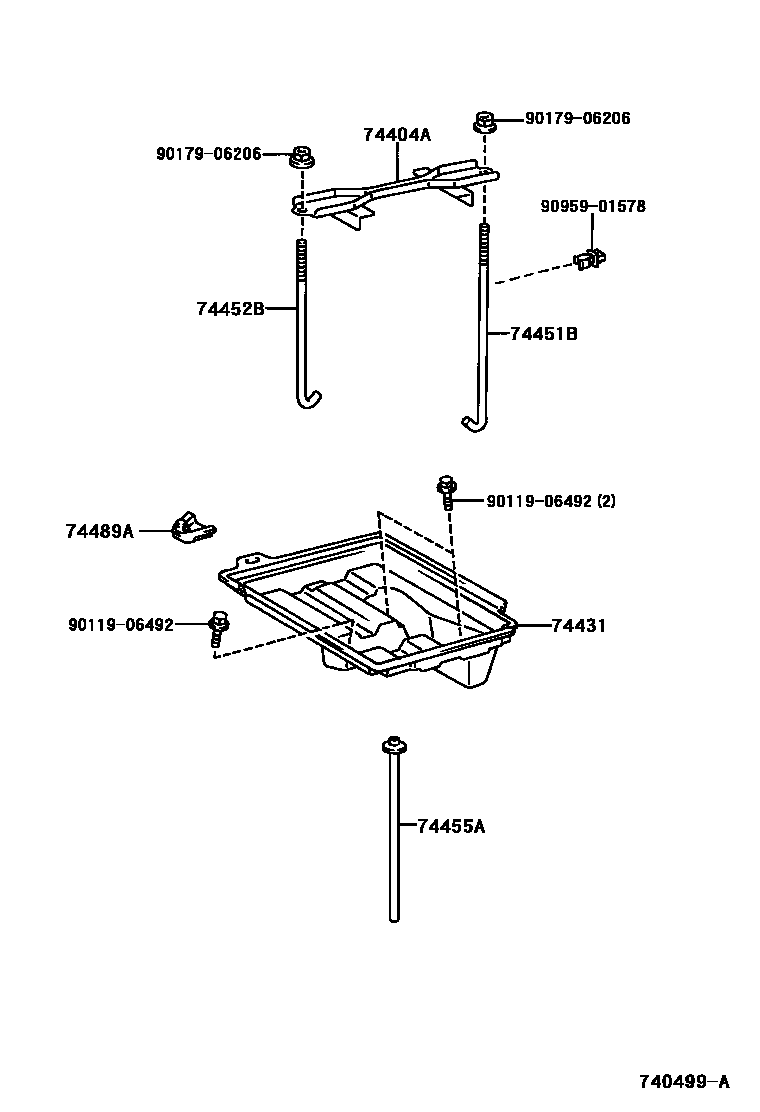

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-30280iJCG1#200105

main74404-51020iJCG1#200105

74431TRAY, BATTERY

main74431-51010iJCG1#200105

74451BBOLT, BATTERY CLAMP

main74451-51010iJCG1#200105

74452BBOLT, BATTERY CLAMP, NO.2

main74452-51010iJCG1#200105

74455AHOSE, BATTERY DRAIN

main74455-30020iJCG1#200105

74489ACOVER, BATTERY CLAMP

main74489-51010iJCG1#200105

9011906492

main90119-06492

9017906206

main90179-06206

9095901578

main90959-01578

9 parts on this diagram · 1 diagram in section
